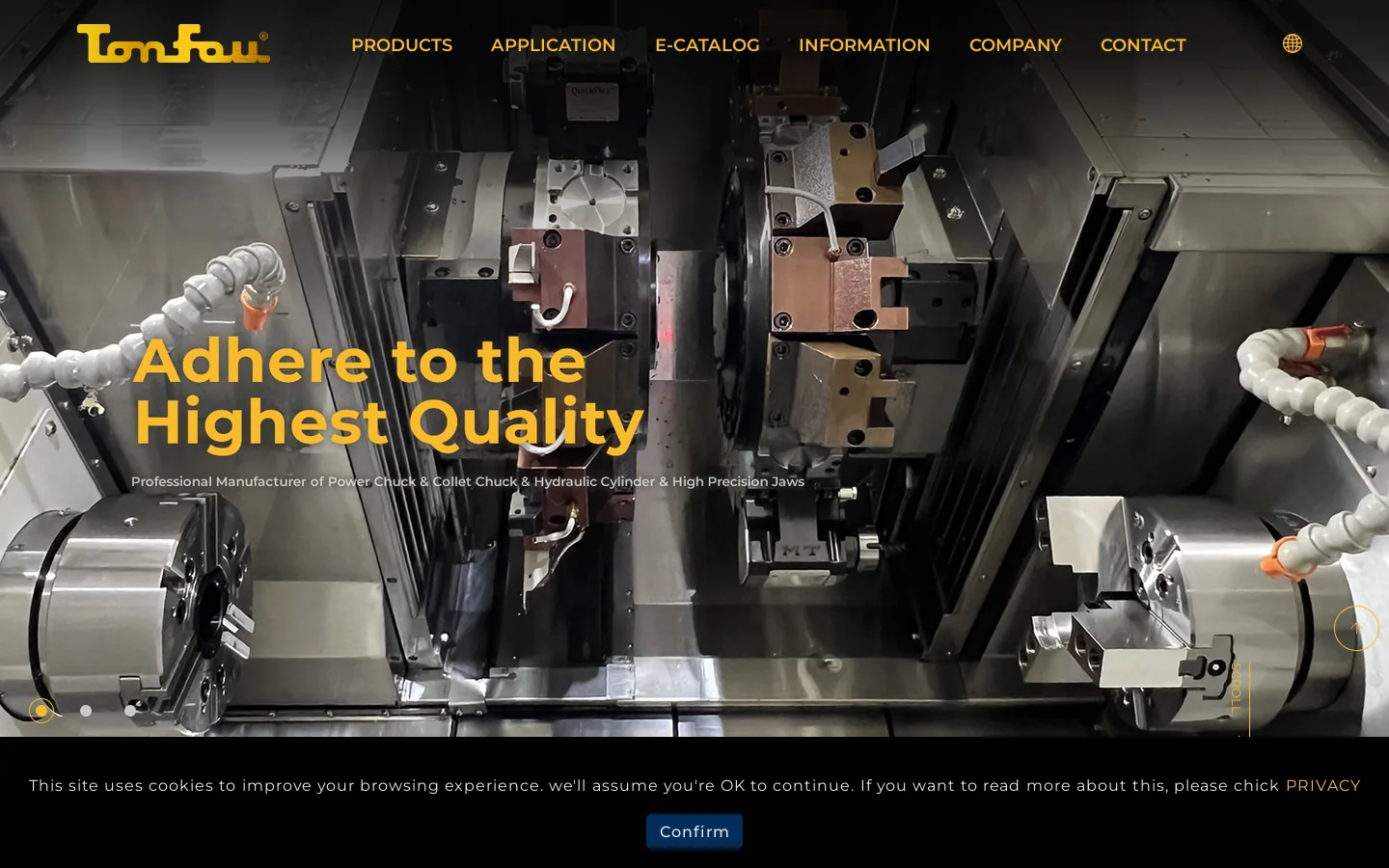

tonfou.com

TON FOU (TON FOU ENTERPRISE CO., LTD.) is a Taiwanese manufacturer founded in 1989 that specializes in workholding components for CNC lathes: power chucks, collet chucks, and rotary hydraulic cylinders. The company states it holds ISO9001 certification and CE marking, and positions its products around rigidity, repeatability, and durability to improve machining efficiency. If you are specifying workholding for a CNC lathe or mill-turn machine, TON FOU is relevant as a component supplier; if you need complete machine tools or cutting tools, it is not.

Company background

• Founded in Taiwan in 1989.
• Described as ISO9001 certified, with CE-marked products.
• Focused on high-precision power chucks, collet chucks, and rotary hydraulic cylinders for CNC lathes.
• States its designs target rigidity and repeatability to boost machining efficiency.

Core product categories

The site organizes its main products into five groups, split mainly by whether the workpiece can pass through the chuck or cylinder bore:

The through-hole vs. non-through-hole distinction is the first decision point: through-hole versions let long bar stock or parts extend past the chuck/cylinder, while non-through-hole versions are closed and typically chosen when that is not required.

Supporting and accessory products

Beyond the main categories, the site lists:

• Coolant collector — collects cutting fluid; a stroke detection mechanism is available.
• Hard jaws & soft jaws — soft jaws for precision, hard jaws for strength.
• Automatic centering power vise — described as specialized for 5-axis CNC milling machines.

How to judge whether it fits your needs

• If you run CNC lathes or mill-turn machines and need a chuck, collet chuck, or matching rotary hydraulic cylinder, the product range covers the common through-hole and closed-center configurations.
• If precision and repeatable clamping are your main concerns, the company's stated emphasis (rigidity, repeatability, durability) aligns with that requirement — but confirm specifications against your spindle nose, draw bar, and required clamping force before selecting.
• If you need jaws or coolant handling, the accessory line (hard/soft jaws, coolant collector, power vise) may let you source these alongside the chuck.
• If you need pricing, lead times, or regional availability, the provided site material does not include these; contact the company directly.

The site also publishes application notes on related selection problems, such as choosing lathe chuck jaws to avoid runout, deformation, and surface marks, and common power chuck selection mistakes that affect CNC lathe accuracy — useful background if you are in the specification stage.

They are three different parts of one workholding system, not three alternatives to each other. The power chuck grips the workpiece with jaws, the collet chuck grips small-diameter or bar stock with a collet for higher accuracy and repeatability, and the rotary hydraulic cylinder mounts at the back of the spindle and supplies the clamping force that opens and closes either chuck. In most setups you choose a chuck first, then match a cylinder to it — TON FOU, a Taiwanese builder founded in 1989, makes all three plus jaws, coolant collectors, and power vises.

The three roles in one clamping chain

The cylinder does not touch the workpiece. It pushes or pulls a draw bar or draw tube, and that motion is translated by the chuck into jaw or collet travel. If the cylinder stroke, bore, or speed rating does not match the chuck, the chuck will not reach full clamping force or full jaw travel.

Power chuck vs collet chuck: how to choose

Choose by workpiece geometry and accuracy demand, not by brand preference.

A power chuck fits when:

• Part diameters vary across jobs and you need adjustable jaw travel
• The workpiece is a casting, forging, or irregular shape that needs custom top jaws
• You need 2, 3, or 4-jaw configurations for different holding patterns
• Grip force matters more than sub-hundredth repeatability

A collet chuck fits when:

• You are running bar stock or small, round, uniform parts
• You need high repeatability between loadings — the collet closes on the same diameter every cycle
• You want low runout without indicating each part
• The diameter range is narrow enough to be covered by a collet set

TON FOU describes its collet chucks around rigidity, repeatability, and durability — the three properties that matter most when the collet is your only gripping element. Its power chuck line is split by whether the spindle bore is open.

Through-hole vs non-through-hole: the decision that follows

Both power chucks and hydraulic cylinders come in through-hole and non-through-hole versions, and the choice is usually driven by one question: does bar stock need to pass through the spindle?

• Through-hole power chuck — the center is open, so long bar can feed through the chuck and spindle. Use it for bar-fed turning where the part is cut off from stock.
• Non-through-hole power chuck — closed center, generally more compact. Use it for chucked parts loaded individually, where no bar passes through.
• Through-hole hydraulic cylinder — matches a through-hole chuck and keeps the bar path clear. TON FOU lists a super high speed through-hole rotary hydraulic cylinder for this role.
• Non-through-hole hydraulic cylinder — described as compact and light weight, suitable for high speed turning. Fits closed-center chucks and machines where bar feed is not required.

The pairing must be consistent: a through-hole chuck with a non-through-hole cylinder blocks the bar path, and a non-through-hole chuck cannot use the through-hole cylinder's advantage.

Matching the cylinder to the chuck

The cylinder is the most commonly mismatched part because it is bought separately. Check these before ordering:

1. Through-hole or not — must match the chuck and the bar-feed requirement.
2. Draw bar / draw tube interface — the cylinder's connecting thread and stroke must suit the chuck's actuation.
3. Speed rating — high-speed turning generates centrifugal force that reduces jaw grip; a cylinder rated for the spindle speed keeps clamping stable. TON FOU's non-through-hole cylinder is explicitly positioned for high speed turning.
4. Force vs workpiece — thin-wall or soft parts deform under excessive grip. This is where jaw selection (hard vs soft) enters, and TON FOU publishes guidance on choosing jaws to avoid runout, deformation, and surface marks.

Accessories that complete the system

A chuck and cylinder alone rarely cover a job. TON FOU's catalog also includes:

• Coolant collector — collects cutting fluid at the spindle; a stroke detection mechanism is available, which lets the control verify the chuck actually actuated.
• Hard jaws and soft jaws — soft jaws for precision and to avoid marking; hard jaws for strength and wear resistance.
• Automatic centering power vise — specialized for 5-axis CNC milling machines, a different workholding branch from lathe chucks.

A practical selection sequence

1. Decide whether bar stock passes through the spindle → through-hole or non-through-hole.
2. Decide part size range and shape → power chuck (variable diameter, custom jaws) or collet chuck (small, uniform, high repeatability).
3. Pick jaw type → soft for finish and delicate surfaces, hard for roughing and durability.
4. Match the rotary hydraulic cylinder → same through-hole type, compatible draw bar interface, speed rating at or above your maximum spindle speed.
5. Add a coolant collector if cutting fluid management or stroke verification is needed.

If the machine is a mill-turn or handles complex parts that see changing cutting force directions between turning, milling, and drilling, the workholding has to stay stable through every operation — which makes the cylinder's force consistency and the jaw's grip pattern the limiting factors, not the chuck body alone.

Choose soft jaws for precision finishing, thin-wall or easily marked workpieces, and hard jaws for roughing, high-clamping-force, or abrasive conditions. The decision should follow the machining stage, workpiece rigidity, and surface requirement — not the jaw's price or availability. TON FOU, a Taiwan-based workholding manufacturer founded in 1989, lists both hard jaws and soft jaws in its product range, describing soft jaws as being for precision and hard jaws for strength.

Start With the Machining Stage

The same workpiece often needs two different jaws across its production cycle.

• Roughing stage: Use hard jaws. They resist wear and hold up under interrupted cuts, scale, and cast skin. Strength matters more than micron-level accuracy here.
• Finishing stage: Use soft jaws bored in place on the machine. Because they are machined to the actual clamping diameter, they seat the workpiece more evenly and repeat better.
• Mixed or low-volume work: If you cannot afford a second setup, a hard jaw with a soft top jaw (or a soft jaw with a hardened insert) can cover both, but expect a compromise in one direction.

A common mistake is running hard jaws through finishing because they are already mounted. The result is usually runout that no amount of program compensation fully removes.

Match the Jaw to the Workpiece

The general rule: the harder the jaw relative to the workpiece, the more likely it is to mark or deform it. Soft jaws are not "weaker" in the sense of accuracy — they are the more accurate choice when the workpiece is the weak link.

Control Clamping Force and Contact Area

Runout, deformation, and surface marks usually trace back to how force is distributed, not just which jaw material you picked.

• Clamping force: Reduce it for thin-wall parts. Excessive force closes the bore or bows the wall, and the part springs back out of tolerance after unclamping.
• Contact area: A jaw that touches the workpiece on a narrow line concentrates stress. Boring soft jaws to match the workpiece diameter, or using a larger arc, spreads the load.
• Jaw travel and position: If the chuck is clamping near the end of its stroke, force and centering both suffer. Set the jaw so the workpiece sits in the middle of the gripping range.
• Number of jaws: 2-jaw chucks suit irregular or asymmetric parts; 3-jaw chucks are the default for round work; 4-jaw chucks give independent adjustment for odd shapes. TON FOU lists 2/3/4-jaw power chucks in both through-hole and non-through-hole versions.

Troubleshooting the Three Common Problems

Runout

Check, in order: jaw boring accuracy, chuck mounting and cleanliness, clamping position within stroke, and whether hard jaws are being reused after wear. Soft jaws bored in place on the machine usually correct runout caused by jaw geometry.

Workpiece deformation

Reduce clamping force, increase contact area, or switch to a soft jaw bored to the actual diameter. For very thin walls, consider a collet chuck or an expanding mandrel instead of jaw clamping — TON FOU's collet chuck line is positioned around rigidity and repeatability for this kind of work.

Surface marks

Switch from hard to soft jaws, add a softer tip material, or clean and deburr the jaw gripping surface. Marks that appear only on one side often indicate a jaw that is not square or a chuck that needs re-boring.

A Practical Selection Sequence

1. Identify the operation: roughing or finishing.
2. Identify the workpiece: rigid or thin-wall, raw or finished surface.
3. Pick jaw type: hard for strength and wear, soft for precision and surface protection.
4. Set clamping force to the minimum that holds the part securely.
5. Bore soft jaws in place at the working clamping pressure.
6. Verify with a dial indicator on the workpiece, then adjust force or contact area if runout or deformation persists.

TON FOU's own guidance frames jaw selection around machining stage, workpiece condition, and clamping requirements, and notes that mismatched workholding shows up as vibration, runout, poor surface finish, and dimensional error. Treat jaw choice as part of the process plan, not an afterthought once the chuck is mounted.

Choose a through-hole power chuck when your process feeds bar stock through the spindle — the bore lets long bars pass through the chuck and into the hydraulic cylinder behind it, enabling continuous bar feeding without stopping to re-chuck. Choose a non-through-hole (closed-center) chuck when you machine individual blanks, discs, or short parts that don't need to pass through the spindle. The deciding factors are your workpiece form, your feeding method, and whether your spindle and cylinder are set up for through-bore operation.

The core mechanical difference

A through-hole power chuck has a central bore aligned with the spindle bore. Bar stock can extend through the chuck body and continue through the matching through-hole rotary hydraulic cylinder mounted at the rear of the spindle. This is what makes bar-feeder workflows possible: the bar advances, the chuck clamps, the part is machined and cut off, and the bar advances again.

A non-through-hole chuck has a closed center. There is no path for material to pass through, so it is used with pre-cut blanks loaded individually. TON FOU lists both types in 2-, 3-, and 4-jaw configurations, and pairs each with a matching hydraulic cylinder type — through-hole chucks with through-hole cylinders, non-through-hole chucks with non-through-hole cylinders.

Comparison at a glance

The table reflects how TON FOU organizes its product lines. Note that the company's non-through-hole hydraulic cylinder is described as compact and light weight and "suitable for high speed turning" — so a closed-center setup is not automatically the lower-speed option; the cylinder design matters as much as the through-hole question.

How to decide for your machine

Work through these in order:

1. Does material need to pass through the spindle? If you run a bar feeder or feed long bars by hand, you need a through-hole chuck and a through-hole cylinder. If every part is a pre-cut blank, a non-through-hole chuck is the simpler match.
2. Check your spindle bore and cylinder interface. A through-hole chuck only helps if the spindle bore and the rear-mounted cylinder bore are compatible with your bar diameter. Confirm the bore sizes line up before committing.
3. Match the chuck to the cylinder type. TON FOU pairs through-hole chucks with through-hole cylinders and non-through-hole chucks with non-through-hole cylinders. Mixing them defeats the purpose of the bore.
4. Consider the part mix. If you run both bar work and discrete blanks, a through-hole chuck can still hold short parts — the bore simply goes unused. The reverse is not true: a closed-center chuck cannot pass bar stock.

Where each type tends to cause problems

The most common selection mistake, per TON FOU's own guidance on power chuck selection, is a chuck that doesn't match the workpiece or machining conditions — leading to vibration, runout, poor surface finish, and dimensional errors. For through-hole setups, the frequent issue is a bore or cylinder mismatch that blocks the bar path. For non-through-hole setups, the risk is trying to force a bar-feeding workflow onto a closed-center chuck.

TON FOU also notes that workholding matters especially on complex mill-turn parts, where cutting forces change direction as the machine switches between turning, milling, drilling, and tapping. In those cases the chuck must hold the part stably through every operation, regardless of through-hole or closed-center design.

A practical starting point

If you are unsure, answer one question first: will a bar ever need to pass through the spindle? Yes → through-hole chuck plus through-hole cylinder. No → non-through-hole chuck plus non-through-hole cylinder. Then verify bore compatibility between chuck, spindle, and cylinder, and confirm the jaw configuration (2, 3, or 4 jaw) suits your part geometry. TON FOU's product range covers both paths, so the choice comes down to your feeding method rather than availability.

Most accuracy problems blamed on the machine tool, the cutting tool, or the program actually start at the workholding interface. A power chuck that does not match the workpiece or the machining conditions can produce vibration, runout, poor surface finish, dimensional errors, and unstable production quality — even on a machine that is mechanically sound. The mistakes below are the ones that show up most often, and each one is avoidable by checking a specific condition before you buy.

Mistake 1: Choosing the chuck before defining the workpiece

The chuck is a reaction to the part, not the other way around. Before comparing models, fix these inputs:

• Workpiece diameter range — the chuck's clamping range must cover the smallest and largest parts you actually run, not just the nominal size.
• Workpiece weight — heavier parts increase the centrifugal load and demand more gripping force at speed.
• Required spindle speed — high-speed turning changes the balance between static grip force and dynamic grip loss.
• Cutting force direction — turning, milling, drilling, and tapping on a mill-turn machine push the part from different directions, and the grip must resist all of them.

A chuck selected only against the "typical" part in the catalog tends to fail on the extremes: the smallest diameter slips, the heaviest part deflects, or the highest speed throws off the grip.

Mistake 2: Ignoring through-hole vs. non-through-hole structure

This is a structural decision, not a preference. TON FOU lists both Through Hole Power Chuck and Non Through Hole Power Chuck (2/3/4 jaw, for CNC lathes), and the same split exists on the cylinder side with Through Hole Hydraulic Cylinder and Non Through-Hole Hydraulic Cylinder.

The common error is buying a non-through-hole chuck for a bar-fed job, or buying a through-hole chuck and then pairing it with a cylinder that cannot pass the bar. The chuck and the hydraulic cylinder must match on through-hole capability — a through-hole chuck with a non-through-hole cylinder blocks the bore just as effectively as a solid chuck.

Mistake 3: Treating the chuck and hydraulic cylinder as separate purchases

The chuck and the rotary hydraulic cylinder are one clamping system. Mismatches here cause stroke problems, insufficient grip force, or speed limits that are lower than the chuck itself allows.

Check that:

• The cylinder's through-hole capability matches the chuck's.
• The cylinder's stroke covers the jaw travel you need across your full workpiece range.
• The cylinder's speed rating is at least the spindle speed you intend to run.
• The mounting interface between chuck and cylinder is compatible.

TON FOU's non-through-hole hydraulic cylinder is described as compact and light weight, suitable for high speed turning — a useful signal when speed is the binding constraint, but it should be verified against your specific speed requirement rather than assumed.

Mistake 4: Judging accuracy by a single number

Rigidity, repeatability, and durability are separate properties, and a chuck can be strong in one and weak in another. TON FOU describes its collet chucks as delivering performance in rigidity, repeatability, and durability — three distinct claims that map to three distinct failure modes:

• Rigidity — resists deflection under cutting force; matters for heavy cuts and interrupted cuts.
• Repeatability — returns to the same clamping position part after part; matters for dimensional consistency across a batch.
• Durability — holds those properties over time; matters for total cost per part.

If your problem is dimensional scatter across a batch, repeatability is the relevant property. If your problem is chatter or surface marks under heavy cutting, rigidity is. Buying on a general "high precision" claim without matching the property to the problem is a common and expensive mistake.

Mistake 5: Overlooking the jaw system

Jaws are where the chuck meets the part, and they are a frequent source of runout, deformation, and surface marks. TON FOU separates Hard Jaws & Soft Jaws, with soft jaws positioned for precision and hard jaws for strength.

The selection logic follows the machining stage:

• Soft jaws — bored in place to match the actual clamping diameter; used where precision and surface protection matter.
• Hard jaws — used where grip strength and wear resistance matter more than conforming to the part surface.

Using hard jaws on a finished, thin-walled, or surface-critical part is a direct route to deformation and marks. Using soft jaws for roughing heavy stock invites wear and loss of grip.

Mistake 6: Forgetting the accessories that keep the process stable

Two accessories are easy to skip and then regret:

• Coolant collector — collects cutting fluid; a stroke detection mechanism is available. Without coolant control, fluid reaches the chuck and cylinder, and without stroke detection you lose visibility into whether the jaws actually reached position.
• Automatic centering power vise — specialized for 5-axis CNC milling machines, relevant when the same shop runs both turning and 5-axis milling work.

A practical selection sequence

1. Define the workpiece: diameter range, weight, material, and the operations it will see.
2. Decide through-hole or non-through-hole based on whether bar stock must pass.
3. Match the hydraulic cylinder to the chuck on through-hole capability, stroke, and speed.
4. Choose the chuck type — power chuck or collet chuck — based on the grip and accuracy the part requires.
5. Choose hard or soft jaws based on machining stage and surface requirements.
6. Add coolant collection and stroke detection if the process needs them.
7. Verify rigidity, repeatability, and durability claims against your specific failure mode, not against a general precision claim.

Where TON FOU fits

TON FOU ENTERPRISE CO., LTD. was founded in Taiwan in 1989 and specializes in high-precision power chucks, collet chucks, and rotary hydraulic cylinders for CNC lathes. The company holds ISO9001 certification and its products are CE-marked, with the stated aim of engineering for rigidity and repeatability to boost machining efficiency. Its catalog covers through-hole and non-through-hole power chucks, collet chucks, through-hole and non-through-hole rotary hydraulic cylinders, coolant collectors, hard and soft jaws, and an automatic centering power vise for 5-axis CNC milling machines.

For a shop diagnosing accuracy loss, the useful next step is to identify which of the six mistakes above matches the symptom — vibration, runout, dimensional error, or surface marks — and check that single condition first.
