A Crayford focuser is a telescope focuser that moves the drawtube by friction rather than by a rack-and-pinion gear. A smooth steel or hardened shaft is pressed against a flat strip on the drawtube; turning the focus knob rolls the shaft along that strip and slides the drawtube in or out. Because the drawtube is not geared, there is no gear lash to take up when you reverse direction, which is why Crayford designs are valued for minimal image shift and fine, repeatable focusing—especially for astrophotography and high-magnification visual work. When choosing one, match four things to your setup: barrel size, drawtube travel, load capacity, and whether you want manual or motorized motion.

How the Crayford mechanism works

The core parts are:

• Drawtube — the tube that holds the eyepiece or camera and slides in and out.
• Drive shaft — a smooth, hardened cylinder turned by the focus knob.
• Friction bearing surface — a flat pad or strip on the drawtube that the shaft presses against.
• Preload/pressure adjustment — a screw or spring that sets how hard the shaft presses on the drawtube.

Turning the knob rotates the shaft. Friction between shaft and drawtube converts that rotation into linear travel. Tightening the preload increases grip (good for heavy cameras) but also increases focus effort; loosening it makes focusing lighter but risks slipping under load. That single adjustment is the main tuning point on most Crayford focusers.

A related design, the rack-and-pinion focuser, uses a toothed gear and a toothed rack. It is strong and self-locking, but gear lash can introduce a small shift when you change direction. Many modern focusers use a hybrid: a Crayford-style friction drive for fine motion plus a rack for rigidity.

Crayford vs other focuser types

For visual observing at moderate magnification, any of these can work. For imaging, or for heavy eyepieces and cameras, the friction tuning and load rating of a Crayford (or hybrid) matter more than the label.

Key specs to match to your telescope

Barrel size

Focusers are commonly sold in 2" and 2.5" formats, and larger rotating units in 2.5", 3", and 3.5". The barrel size must match your telescope's focuser opening and your eyepiece/camera nosepiece. A 2" focuser accepts 2" accessories and, with an adapter, 1.25" ones. Larger barrels give more rigid support for heavy imaging trains.

Drawtube travel

Travel is how far the drawtube can move in and out. You need enough travel to reach focus with every eyepiece, diagonal, barlow, or camera you plan to use. If your telescope has a fixed back-focus, check that the focuser's travel range covers your accessories; too little travel means you cannot reach focus at all.

Load capacity

This is how much weight the focuser can hold without slipping or flexing. A light Plössl eyepiece is easy; a cooled camera, filter wheel, and off-axis guider add up fast. If you are near the limit, expect to increase preload, which makes focusing stiffer.

Back focus and mounting

Confirm the focuser's mounting flange and hole pattern fit your telescope tube, and that its installed height does not push your camera too far out or too far in to reach focus.

Manual vs motorized

Motorized focusing adds a motor that drives the focus shaft, usually controlled from a handset or computer. It helps when:

• You image and want to avoid touching the telescope, which causes vibration.
• You need repeatable focus positions or automated focusing routines.
• You are focusing at high magnification where tiny movements matter.

Manual focusing is simpler and cheaper, but requires touching the scope. Note that availability varies by maker: for example, MoonLite Telescope Accessories states on its site that it only manufactures motorized versions of all its focusers, no longer makes manual focusers, and has none left in stock. Its Crayford model focusers are offered with a choice of 10 motor options, and it highlights a V3 integrated-controller high-resolution motor as its most popular version. It also notes all sales are direct (no resellers), products are made in-house in the US, and it offers a 30-day return policy and a limited product warranty. If you specifically want a manual Crayford, check each manufacturer's current lineup rather than assuming one exists.

Compatibility checks before you buy

1. Measure your telescope's focuser opening and note whether it is 2" or another size.
2. List your accessories (eyepieces, diagonal, barlow, camera, filter wheel) and estimate total weight and required back focus.
3. Confirm the mounting pattern matches your tube or adapter.
4. Check travel range against the focus range your accessories need.
5. Decide manual or motorized, and if motorized, confirm the controller interface works with your setup.

If a listed model does not fit, some makers build custom versions—MoonLite, for instance, invites customers to ask about custom versions not listed on its site.

Common problems and fixes

• Slipping under load — increase the preload/pressure adjustment so the shaft grips the drawtube harder. If it still slips, the load may exceed the focuser's capacity.
• Backlash or a small shift when reversing — on a Crayford this is usually a preload or friction-surface issue; clean and re-tension. On rack-and-pinion, lash is inherent and may need adjustment.
• Stiff or gritty focusing — the friction surface or shaft may be dirty or dry; clean per the maker's guidance.
• Cannot reach focus — travel is insufficient or the installed height is wrong; add or remove extension tubes or change the focuser position.

Choosing a Crayford focuser comes down to matching barrel size, travel, and load capacity to your telescope and accessories, then deciding whether motorized control is worth it for your observing or imaging style.

A telescope focuser is the mechanical assembly that holds your eyepiece or camera and moves it along the optical axis until the image is sharp. Choosing the right one comes down to four things: the design (Crayford vs. rack-and-pinion), the drive (manual vs. motorized), the drawtube size and travel, and whether it physically fits your telescope tube and imaging train. Get those four right and focusing becomes a non-issue; get one wrong and you'll fight backlash, slippage, or a camera that never reaches focus.

What the focuser actually does

The focuser sits at the back of the tube (or on the side of a Newtonian) and does three jobs:

• Holds the payload — eyepiece, diagonal, camera, filter wheel, or a whole imaging train — without tilting or slipping.
• Moves it along the optical axis to bring the focal plane onto your eye or sensor.
• Locks it in place once focus is reached, so the weight of the payload doesn't drift.

Two specifications matter more than any marketing language:

• Drawtube diameter — commonly 2" or 2.5", with larger formats on big refractors and astrographs. The drawtube must be wide enough to pass the light cone your telescope delivers. A 2" focuser on a fast, large-aperture scope can vignette the field.
• Focus travel — the total distance the drawtube can move. You need enough travel to cover the range of eyepieces and cameras you'll use, and enough inward travel to reach focus with a camera that sits far back.

If your telescope reaches focus with your current eyepieces but not with a camera, the problem is usually back focus, not the focuser's quality.

Crayford vs. rack-and-pinion

These are the two dominant mechanical designs.

Crayford focusers are the default choice for amateur telescope making and for most aftermarket upgrades because the friction drive gives fine, backlash-free control. Rack-and-pinion designs shine when you're hanging a lot of weight off the back and want a geared, positive feel.

One practical note from the manufacturer side: MoonLite Telescope Accessories states that it now only manufactures motorized versions of all its focusers, has discontinued manual focusers, and has none left in stock. Its Crayford models are offered with a choice of 10 motor options, and the company also makes 2-axis worm-drive rotating focusers in 2.5", 3", and 3.5" formats. So if you're shopping that brand specifically, "manual vs. motorized" is no longer a choice — it's motorized only.

Manual vs. motorized: which do you need?

Manual focusers are simpler, lighter, cheaper, and have nothing to power or cable. For visual observing at moderate magnification, a smooth Crayford is often all you need.

Motorized focusers add a motor that drives the drawtube, usually through a hand controller or software. They matter when:

• You're imaging. Touching the focuser by hand shakes the scope and blurs the frame. A motor lets you focus without contact.
• You need repeatability. Software can return to a saved focus position, which is essential for automated or multi-night sessions.
• Temperature shifts. As the night cools, focus drifts; a motor lets you correct it remotely.
• You're using autofocus routines. These require a motor and a controller the software can talk to.

The trade-off is cost, cabling, power, and one more thing that can fail. If you only observe visually and your scope is stable, a manual focuser is a reasonable, low-maintenance choice.

Matching size and capacity to your payload

Work backward from what you'll hang on the focuser:

1. List your heaviest configuration. A camera + filter wheel + off-axis guider can easily outweigh a 2" eyepiece several times over.
2. Check the drawtube diameter against your light cone. 2" covers most visual and small-sensor imaging. 2.5" and larger formats suit bigger corrected fields and heavier trains.
3. Confirm the focuser's rated load exceeds that weight with margin. Slippage under load is the most common failure.
4. Verify travel range covers every eyepiece and camera you own, including the inward travel a camera needs.

Compatibility checks before you buy

• Tube mounting. The focuser base must match your tube's curvature and bolt pattern, or you'll need an adapter or a new mounting plate.
• Back focus. Measure the distance from the focuser's mounting surface to your sensor or eyepiece field stop, and compare it to the focuser's travel. Cameras often need more inward travel than eyepieces.
• Adapters. Confirm the drawtube's thread or compression fitting matches your accessories, or budget for adapters.
• Rotating vs. fixed. Rotating focusers let you frame a target without moving the tube — useful for imaging, unnecessary for most visual work.
• Custom options. If nothing listed fits your scope, ask the manufacturer. MoonLite notes it makes many custom versions not shown on its website, and sells direct with no resellers.

A quick decision path

• Visual only, light eyepieces, stable scope → manual Crayford, 2".
• Visual + occasional imaging, moderate load → Crayford, 2" or 2.5", manual or motorized.
• Dedicated imaging, heavy train, autofocus → motorized Crayford or heavy-duty rack-and-pinion, 2.5" or larger, with a controller your software supports.
• Large corrected field or very heavy payload → larger-format focuser (3"–3.5" class) and check load rating carefully.

If you're unsure, the safest move is to measure your current setup — drawtube diameter, travel, mounting pattern, and the back focus your camera needs — and match those numbers before choosing a design.

Amateur telescope making (ATM) is the practice of building, assembling, or modifying a telescope yourself rather than buying a finished instrument. It covers a wide range: grinding and polishing your own mirror from a blank, building a Dobsonian mount from plywood, or simply buying optics and a tube and adding a purchased focuser. The right starting point depends on how much time, tooling, and tolerance for iteration you have. If you want a working scope soon, buy the optics and focuser and build the structure; if you want to learn optical fabrication, start with a small mirror.

The range of ATM projects

ATM is not one activity. It helps to place your goal on a spectrum before buying anything.

Most people who say they "make" a telescope fall into the partial-build or kit category. That is not a lesser form of ATM — matching components correctly is the skill that determines whether the scope actually works.

The first real decision: mirror or buy?

The mirror is the hardest part to make and the part that most determines image quality.

• Grinding your own mirror teaches you optical fabrication and can save money on large apertures, but it requires a grinding stand, abrasives, pitch laps, and a testing setup. Expect weeks to months for a first 6-inch mirror, plus the risk of figuring errors.
• Buying a mirror set removes that risk and lets you focus on the mechanical build. This is the common recommendation for a first project because the structure is where beginners learn the most transferable skills.

If your goal is to observe sooner, buy the optics. If your goal is to understand optics, grind a small mirror first and treat it as a learning project, not your primary scope.

Why focusers are usually bought, not made

A focuser looks simple but demands tight tolerances: the drawtube must hold the eyepiece or camera without tilt, move smoothly without backlash, and reach focus across your eyepieces. That is why most ATM builders buy the focuser and make everything else.

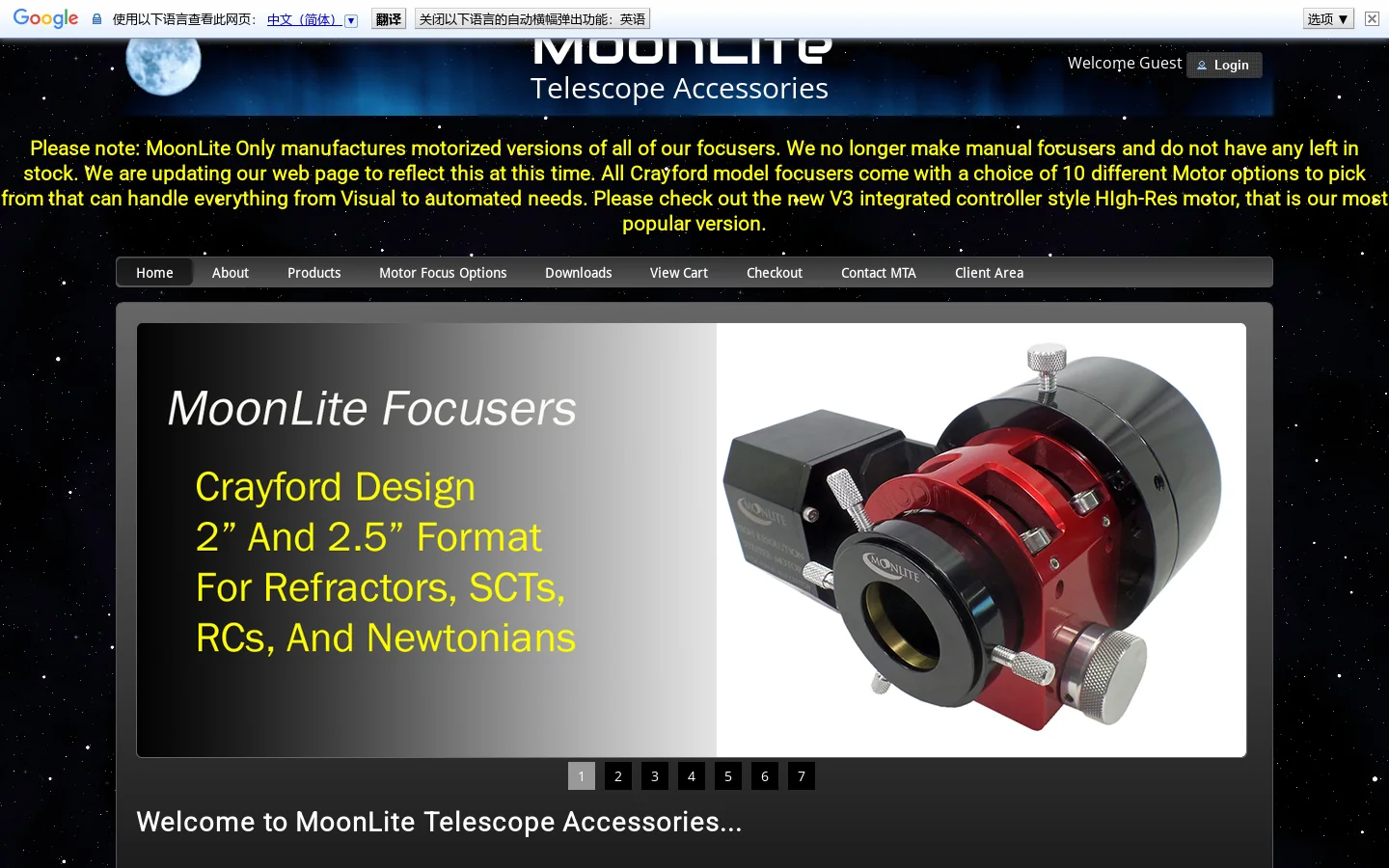

MoonLite Telescope Accessories is an example of a supplier aimed directly at this market — its site describes it as specializing in amateur telescope making components. Two details from its current product information matter when you are planning a build:

• It only manufactures motorized focusers. The site states it no longer makes manual focusers and has none in stock, and that all Crayford model focusers come with a choice of 10 motor options covering visual through automated use.
• It offers Crayford focusers in 2" and 2.5" formats, plus 2-axis worm drive rotating focusers in 2.5", 3", and 3.5" sizes. All products are made in-house in the US, sales are direct with no resellers, and custom versions not listed on the site can be requested.

That last point is the practical takeaway for a builder: if your tube or mirror cell is non-standard, ask the manufacturer before assuming you must redesign around an off-the-shelf part.

What to check for compatibility

Before ordering any focuser, confirm these against your tube and optics:

• Drawtube diameter — 2" and 2.5" are the common Crayford formats; larger rotating assemblies exist for heavier imaging trains.
• Focus travel — the range must cover your eyepieces and any camera or barlow. Insufficient inward travel is a frequent cause of "I can't reach focus."
• Mounting hole pattern and tube curvature — the base must sit flush on your tube diameter.
• Manual vs. motorized — if a supplier only sells motorized units, factor in the controller and power, and confirm the motor option suits visual use if that is your goal.
• Load capacity — a heavy camera needs a sturdier drawtube and, often, a rotating or 2-axis design.

A realistic first-project path

1. Pick a target scope size. A 6-inch or 8-inch Newtonian on a Dobsonian mount is the standard beginner build: forgiving tolerances, cheap materials, and good views.
2. Decide mirror vs. buy using the criteria above, then order the mirror set if buying.
3. Build the tube and mirror cell first. Get the primary mirror mounted and collimatable before spending on a focuser.
4. Choose the focuser using the compatibility checklist, and confirm lead time and whether custom mounting is available.
5. Build the mount. A Dobsonian rocker box is the lowest-risk mount for a first build.
6. Assemble and collimate. Align the primary and secondary, then test on a star.
7. Iterate. Expect to shim, re-drill, or adjust the focuser position after first light.

Common pitfalls

• Focus travel mismatch. The single most common failure. Measure the distance from your tube surface to the focal plane before cutting the focuser hole.
• Collimation drift. A mirror cell that flexes or a secondary holder that shifts will undo good optics. Build stiffness in from the start.
• Tilt and sag. A focuser that flexes under a camera load ruins images even if it feels smooth by hand.
• Ordering before measuring. Confirm drawtube size, travel, and mounting pattern against your actual tube, not a nominal spec.
• Assuming availability. Product lines change. The MoonLite site, for instance, notes it is updating its pages to reflect that manual focusers are discontinued — always verify current options before designing around a specific part.

Where to find plans, communities, and parts

• Plans and community knowledge: amateur astronomy forums and local astronomy clubs are the fastest route to tested designs and to borrowing tools like grinding stands.
• Optics: mirror sets and secondary mirrors from dedicated optical suppliers.
• Mechanical components: focusers, spiders, and mirror cells from makers who serve the ATM market directly — MoonLite is one such supplier, selling direct with no resellers and offering custom versions on request.
• Hardware and materials: local suppliers for plywood, tubing, and fasteners; these rarely need to be astronomy-specific.

Start by deciding whether you are building to observe or building to learn optical fabrication. That single choice determines whether you grind a mirror or buy one, and everything else — mount, tube, and focuser — follows from it.

A telescope is an optical instrument that collects light from distant objects and brings it to a focus so your eye can see more detail and fainter objects than it could alone. For night-sky viewing, the three things that determine what you'll actually see are aperture (light-gathering), focal length (which sets magnification with a given eyepiece), and the mount (how steadily and easily you can point and track). If you're just starting, a modest telescope on a stable mount will show you more than a large one on a shaky tripod — and binoculars or a free planetarium app are legitimate first steps before buying anything.

The three main optical designs

For a first scope, the practical question is usually "how much aperture can I afford and carry?" rather than "which design is best in the abstract."

Specs that actually matter

• Aperture — the diameter of the main lens or mirror. This is the single biggest factor in how faint an object you can see and how much detail resolves. A larger aperture collects more light; everything else being equal, bigger wins.
• Focal length — determines magnification for a given eyepiece: magnification = telescope focal length ÷ eyepiece focal length. A 1000 mm scope with a 10 mm eyepiece gives 100×. Long focal lengths favor planets and the Moon; short focal lengths give wider fields for large deep-sky objects.
• Magnification — a result of focal length and eyepiece, not a fixed property of the telescope. Very high magnification on a small aperture just produces a dim, blurry image. Useful magnification is limited by aperture and by atmospheric steadiness on the night.
• Mount — the part that holds and aims the tube. A wobbly mount ruins an otherwise good telescope. Two broad families:
  • Alt-azimuth: moves up/down and left/right. Simple and intuitive; fine for visual use.
  • Equatorial: aligned to the celestial pole so you can track objects by turning one axis. Better for long looks and imaging, but needs alignment and can be less intuitive at first.
• Finder — a small sight (optical or red-dot) that helps you point the main tube. A poorly aligned finder is a common reason beginners "can't find anything."

Matching a telescope to what you want to see

• Moon and planets — reward longer focal length and higher magnification. A refractor or a compound scope on a steady mount works well; the Moon is the easiest and most rewarding first target.
• Deep-sky objects (nebulae, galaxies, clusters) — reward aperture. Many appear as faint grey smudges even in decent scopes; expectations matter more than specs here.
• Double stars — reward sharp optics and steady air; a good refractor or well-collimated reflector shows clean splits.
• Wide fields (large star clouds, some comets) — reward short focal length and low magnification, where binoculars often compete well.

If your interest is mostly "see the Moon and planets clearly," a long-focal-length scope is a good fit. If it's "hunt faint fuzzies," prioritize aperture.

Setting up for a first session

1. Assemble in daylight first. Put the mount together and attach the tube indoors or in daylight so you're not fumbling in the dark.
2. Balance the tube on the mount so it doesn't drift or strain the motors/axes.
3. Align the finder. In daylight, point the scope at a distant object (a chimney, a treetop), center it in the main eyepiece, then adjust the finder until the same object is centered in it. Do this once and it saves enormous frustration later.
4. Let the scope cool. A telescope taken from a warm room to cold night air needs time to reach ambient temperature, or views will be mushy. Give it time before judging the optics.
5. Start with a low-power eyepiece to find your target, then increase magnification once it's centered.
6. Check the sky and weather first. A planetarium or sky-guide tool helps you confirm what's up and where. In-The-Sky.org, for example, offers a planetarium, an all-sky chart, rising/setting times, and an object search, plus feeds for events like oppositions and close approaches — useful for deciding what's worth pointing at on a given night.

Common beginner problems and fixes

• Blurry views — often the scope hasn't cooled, the air is unsteady, or you're magnifying beyond what the aperture and conditions support. Back off the magnification and wait for steadier air.
• Shaky image — usually the mount, not the optics. A sturdier mount or a lower-vibration setup (avoid touching the tube while viewing) fixes most of it.
• Can't find anything — almost always a misaligned finder or starting at too high a magnification. Realign the finder and begin low-power.
• Dew on the optics — an open tube and exposed corrector/lens dew up fast. A dew shield or gentle warming helps; sealed refractor tubes resist it better.
• "It looks worse than the photos" — visual observing shows faint objects as dim and colorless compared with long-exposure images. This is normal, not a fault.

When binoculars or an app are the better start

• Binoculars are cheap, portable, and give a wide, bright, intuitive view — excellent for the Moon, bright clusters, and learning the sky. They won't show planetary detail or faint deep-sky objects the way a telescope will.
• A planetarium or sky-guide app costs nothing and tells you what's visible, when it rises and sets, and where to look — the fastest way to learn the sky before spending money. In-The-Sky.org's planetarium, all-sky charts, and event calendar are examples of this kind of tool.

A reasonable path: learn the sky with binoculars and a planetarium tool, then buy a telescope whose aperture and mount match the targets you most want to see.

Astronomy is the scientific study of celestial objects, space, and the physical universe as a whole — planets, stars, galaxies, black holes, dark matter, and the cosmos on its largest scales. It is not astrology, which claims that celestial positions influence human affairs and has no scientific basis. If you want to follow astronomy research news without being misled, the core skill is separating three things: what was actually measured, what was inferred from it, and what the headline claims. This guide explains the field briefly, then gives you a practical method for reading and tracking astronomy news.

Astronomy vs. astrology: the line that matters

Astronomy uses observation, physics, and mathematics to test ideas about how the universe works. Astrology assigns meaning to the positions of celestial bodies relative to human events. They share a historical root but not a method. When a news item uses phrases like "Mercury retrograde affects your mood," it is astrology, not astronomy, regardless of how it is labeled.

A useful test: does the claim rest on a measurable quantity (a spectrum, a light curve, a distance, a temperature) that other researchers could in principle check? If yes, it is in astronomy's territory.

Where astronomy news actually comes from

Most astronomy stories trace back to one of a handful of source types. Knowing which one you are reading tells you a lot about how much weight to give it.

ScienceDaily, for example, aggregates research news across astronomy and many other fields from universities and research organizations. That makes it a convenient entry point, but the site is a relay, not the original source — the underlying paper or institution release is where you check details.

How to tell whether a headline is overselling

Headlines are written to be clicked, so read them as a claim to be tested rather than a finding to be accepted.

• "Scientists discover..." — Ask: discovered by direct observation, or inferred from a model? An inferred exoplanet from a subtle signal is a different level of certainty than a photographed one.
• "May," "could," "suggests" — These signal a hypothesis or a correlation, not an established result.
• "First ever" — Often true only within a narrow definition. Check what exactly is claimed to be first.
• "Changes everything we know" — Almost never accurate. Real science usually refines or extends prior work.
• A single study reported as settled fact — One paper rarely settles a question. Look for whether other teams have reproduced it.

A practical habit: read the headline, then read the first two paragraphs of the story, then look for the link to the original paper or institution release. If the story does not link to a primary source, be more cautious.

Key terms that get misread

Misunderstanding a few words causes most confusion in astronomy coverage.

• Light-year — a distance, not a time. It is how far light travels in one year.
• Exoplanet — a planet orbiting a star other than the Sun. Most are detected indirectly, by how they dim or tug on their star.
• Redshift — the stretching of light toward longer wavelengths, used to measure how fast distant objects move away from us and, in cosmology, how far back in time we are seeing.
• Dark matter and dark energy — names for effects we observe (extra gravity, accelerating expansion) whose underlying nature is not yet identified. They are not "stuff someone found in a jar."
• Signal, candidate, confirmed — a signal is a possible detection; a candidate is a promising one; confirmed means independent evidence supports it. News often blurs these.

Following astronomy without drowning in it

You do not need to read every paper. A small, reliable set of sources plus a checking routine is enough.

1. Pick two or three primary channels. A major journal, a space agency's newsroom, and one or two observatories cover most major results.
2. Use an aggregator for breadth, not depth. A science news site can tell you what is happening; go to the primary source for what was actually found.
3. Set a cadence. Weekly or monthly is plenty for most people. Astronomy rarely requires same-day awareness.
4. Keep a "wait and see" list. When a result is surprising, note it and check back in a few months for independent confirmation.
5. Read the abstract, not just the press release. The abstract usually states the method, sample, and the limits the authors themselves acknowledge.

When a finding is controversial

Some results — an unusual signal, a claimed new particle, a revised age of the universe — attract disagreement. To evaluate them:

• Sample size and method: How many objects or events were observed, and with what instrument?
• Uncertainty: Did the authors report error bars or confidence levels? A result within the noise is not a detection.
• Independent replication: Has another team, using different data or instruments, found the same thing?
• Alternative explanations: Did the authors rule out instrumental artifacts or known astrophysical sources?

If a story does not address these, it is reporting an announcement, not a settled finding.

The short version

Astronomy studies the universe through measurement and physics; astrology does not. When you read astronomy news, identify the source type, treat headlines as claims, learn the handful of terms that get misread, and check surprising results against independent replication before accepting them. Follow a few reliable channels on a comfortable schedule, and you will stay informed without being whipsawed by every dramatic headline.
