An SSD (solid state drive) is a storage device with no moving parts, used to hold your operating system, applications, and files. It replaces or supplements the older spinning hard disk drive (HDD). Choosing the right one comes down to four checks: form factor and physical fit, interface and protocol (SATA vs. NVMe over PCIe), capacity and speed for your workload, and compatibility with your motherboard or console before you buy. If you are building or upgrading a PC, the practical path is to confirm the slot first, then match the drive to it.

SSD vs. HDD: the core difference

An HDD stores data on rotating magnetic platters read by a moving head. An SSD stores data in flash memory chips with no mechanical movement. That single design difference drives most of what you notice in daily use:

• Speed: SSDs access data with far lower latency, so boot times, application launches, and file transfers feel faster.
• Durability: With no moving parts, an SSD is less vulnerable to shock and vibration, which matters for laptops and handheld consoles.
• Noise and power: SSDs are silent and typically draw less power.
• Cost per gigabyte: HDDs still generally cost less per terabyte, which is why large HDDs remain common for bulk storage.

A common setup is a smaller SSD for the operating system and frequently used programs, plus a large HDD for media and archives.

The main SSD form factors

Form factor determines whether a drive physically fits your system. The three you will encounter most:

There are also mini SSDs sized for a variety of gaming consoles, which is a distinct category from standard desktop and laptop drives. If you are upgrading a console, confirm the specific drive type that console accepts rather than assuming a standard M.2 or 2.5-inch drive will work.

Interface and protocol: SATA, NVMe, and PCIe generations

This is where buyers most often get confused, because M.2 describes a shape, not a speed.

• SATA: An older interface, typically capped around 550 MB/s in practice. Available in both 2.5-inch and M.2 shapes.
• NVMe: A protocol designed for flash storage, running over PCIe. Much higher throughput and lower latency than SATA.
• PCIe generations: NVMe drives connect over PCIe, and the generation (for example PCIe 4.0 or PCIe 5.0) affects the maximum bandwidth available. Newer generations generally allow higher sequential speeds.

Two practical cautions:

1. An M.2 slot does not guarantee NVMe support. Some M.2 slots are SATA-only, and some drives are SATA-based M.2. Match the drive type to what the slot supports.
2. Faster rated speeds only help if your workload uses them. For everyday computing and most gaming, the difference between a mid-range NVMe drive and a top-tier PCIe 5.0 drive is often far smaller than the difference between any SSD and an HDD.

Matching capacity, speed, and budget to your use

Think about what the drive will actually do:

• Everyday computing (browsing, office work): A SATA or entry NVMe SSD is usually enough. Prioritize adequate capacity over peak speed.
• Gaming: NVMe is the sensible default for load times and modern game streaming requirements. Capacity matters more than you might expect, since individual games can be very large.
• Storage expansion / media libraries: Higher capacity at a lower cost per gigabyte may matter more than speed. This is where an HDD or a large, value-focused SSD can make sense.
• Content creation and large-file work: Sustained write performance and higher-tier NVMe drives become more relevant.

A useful rule: set your capacity target first based on what you need to install, then choose the cheapest drive that meets your speed needs rather than the fastest drive you can afford.

Check compatibility before you buy

Before purchasing, verify each of these against your motherboard or system documentation:

• Available slot or bay: Do you have a free M.2 slot, a 2.5-inch bay, or a PCIe slot?
• M.2 length: M.2 modules come in different lengths (commonly 2280, but shorter and longer exist). Confirm the slot accepts your drive's length.
• Keying: M.2 slots and drives are keyed (for example B-key or M-key). The drive's key must match the slot.
• Protocol support: Confirm whether the M.2 slot supports NVMe, SATA, or both.
• PCIe generation: A PCIe 5.0 drive will generally work in a PCIe 4.0 slot but at reduced speed. Check what your platform supports so you are not paying for bandwidth you cannot use.
• Console requirements: For console upgrades, check the manufacturer's accepted drive specifications rather than desktop conventions.

Use specification databases and reviews to verify real-world performance

Marketing numbers describe ideal conditions. Independent technical reviews and specification databases help you see how a drive actually performs, including sustained speeds, thermal behavior, and reliability reports.

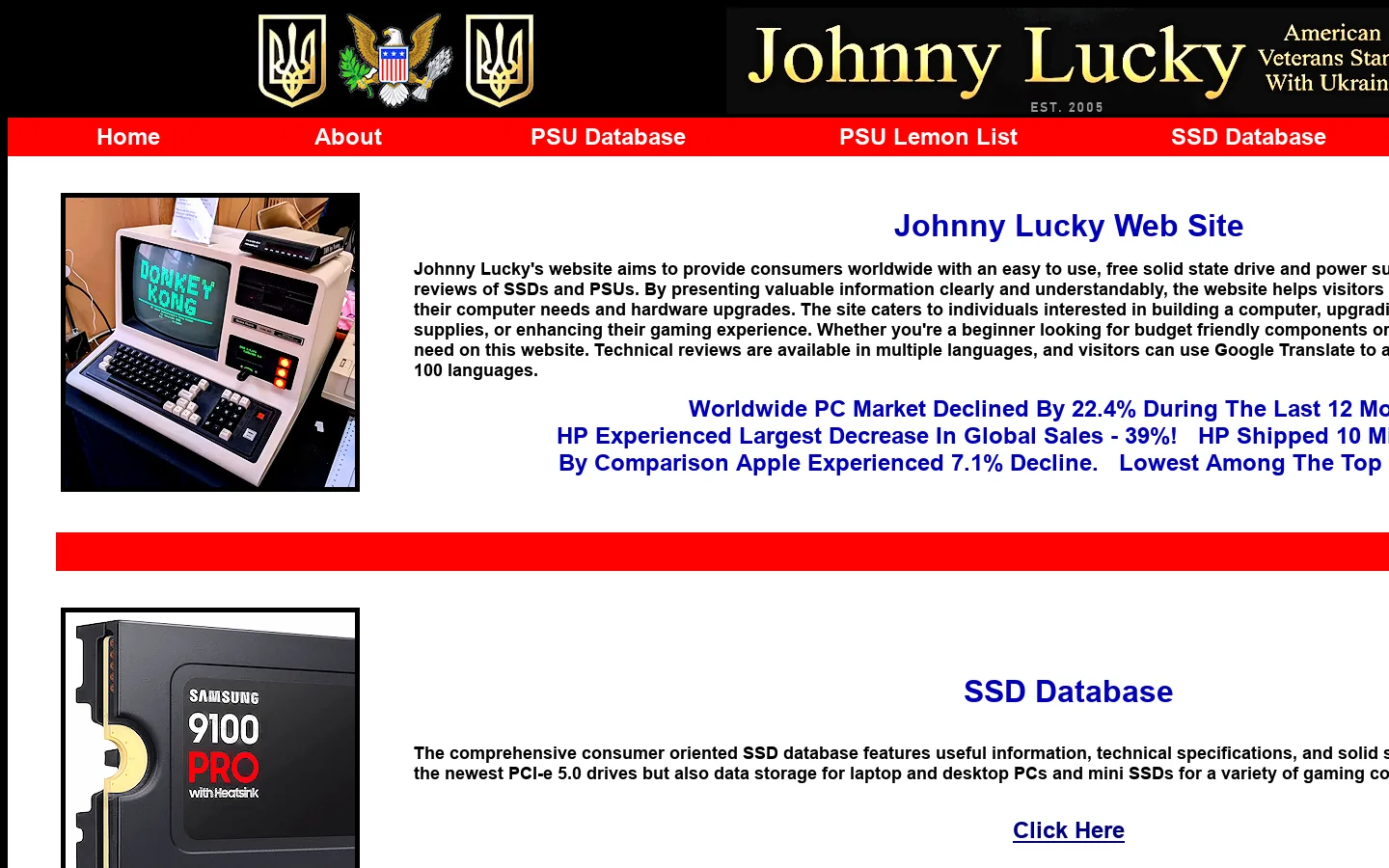

The Johnny Lucky Web Site is one such resource: it maintains a consumer-oriented SSD database with technical specifications and links to technical reviews, covering current PCI-e 5.0 drives as well as storage for laptop and desktop PCs and mini SSDs for gaming consoles. It also publishes a PSU database and a "PSU Lemon List" flagging poorly performing power supplies, and its technical reviews are available in multiple languages with Google Translate access to over 100 languages.

When comparing drives, look for reviews that test:

• Sustained write performance, not just burst speed, since some drives slow dramatically after a cache is exhausted.
• Thermals and throttling, especially for high-speed NVMe drives.
• Real-world load times for your intended use, which often differ less between tiers than the spec sheets suggest.

A quick decision path

1. Identify the slot or bay you have free.
2. Determine which interfaces and protocols that slot supports.
3. Set a capacity target based on what you need to install.
4. Choose the interface tier that matches your workload (SATA for basic needs, NVMe for gaming and general performance).
5. Verify form factor, length, and keying against your system.
6. Check independent reviews for sustained performance before buying.

A PSU (power supply unit) is the component that converts AC power from your wall outlet into the regulated DC voltages your desktop PC's parts need. Choosing a reliable one means matching wattage to your components, checking efficiency and build quality, confirming it has the connectors your hardware requires, and verifying the specific model against independent technical reviews rather than trusting marketing claims. This guide is for anyone building a desktop PC, upgrading a GPU, or replacing a failed or suspect power supply.

What a PSU actually does

The power supply takes AC input and delivers DC output on the rails your components draw from — primarily the main motherboard connector, CPU power, PCIe power for graphics cards, and SATA/Molex for drives and accessories. Every other part in the system depends on it, so a weak or low-quality unit can cause instability, shutdowns under load, or damage to other hardware. It is also the one component where a failure can take the rest of the build with it, which is why review-verified quality matters more here than in almost any other part.

Match wattage to your components and use case

Wattage is the first filter, but bigger is not automatically better — you want headroom without overspending.

• Add up the real draw. The CPU and GPU dominate power consumption. Storage, fans, and motherboard contribute comparatively little.
• Leave headroom. A modest margin above your estimated peak load gives the PSU room to run efficiently and covers transient spikes, which modern high-power GPUs are known for.
• Account for your use case. A basic office or media PC needs far less than a gaming build with a high-end graphics card.
• Plan for upgrades. If you expect to move to a more power-hungry GPU later, size for that now rather than replacing the PSU twice.

If you are unsure of a specific card's requirements, check the manufacturer's recommended PSU wattage for that model and treat it as a floor, not a target.

Check efficiency ratings and quality indicators

Efficiency ratings (such as 80 PLUS tiers) describe how much AC power is wasted as heat at given load levels — they are a useful quality signal but not a complete measure of a good unit. Two supplies with the same rating can differ substantially in component quality, protection features, and ripple performance.

Look for:

• A recognized efficiency certification as a baseline indicator.
• Protection features such as over-voltage, over-current, and short-circuit protection.
• Independent technical reviews that open the unit and measure real performance, not just spec sheets.
• Consistent performance under load, since problems often appear at high load rather than at idle.

Understand ATX 3.0/3.1 and the new GPU connectors

Newer power supplies follow updated ATX standards that matter if you are building around a modern graphics card:

• ATX 3.0 models include a 16-pin 12VHPWR power cable.
• ATX 3.1 introduces the 12V-2x6 cable, which replaces the 12VHPWR cable.

If your GPU uses one of these connectors, confirm the PSU you choose supports the matching standard and cable. Buying a unit that predates these standards may leave you relying on adapters, which adds complexity and another point of failure.

Avoid low-quality units and false advertising

Low-quality power supplies are a real category, and marketing language does not reliably distinguish them from good ones. A unit can advertise high wattage while performing poorly under real load. The practical defense is to check the specific model against detailed technical reviews that explain problems and issues, rather than trusting the box or the listing.

A "lemon list" style resource — a curated set of links to reviews documenting poor-performing units — is useful precisely because it names models to avoid instead of only recommending good ones.

Use databases and reviews to compare models

Rather than guessing, compare candidate models against structured resources. Johnny Lucky's site (johnnylucky.org) maintains a PSU database focused on power supplies for desktop computers, with links to reliable technical hardware reviews and analysis of PSU components, including the newer ATX 3.0, ATX 3.1, and 12V-2x6 models. It also hosts a PSU Lemon List for flagging low-quality and poorly performing units, and the site's technical reviews are available in multiple languages via Google Translate.

A workable comparison process:

1. Shortlist PSUs that meet your wattage and connector requirements.
2. Check each against the PSU database for linked technical reviews.
3. Cross-check the Lemon List to rule out flagged models.
4. Read at least one review that measures real performance before buying.

Quick decision checklist

If a model passes all five, you have a reasonable basis to buy it. If it fails any one — especially the last two — keep looking.

A solid state drive (SSD) is a storage device that keeps your data in flash memory instead of on spinning magnetic platters, which is why it boots systems faster, runs silently, and survives drops better than a hard disk drive (HDD). Choosing the right one comes down to four checks: the interface your machine supports, the physical size that fits, the capacity and endurance you actually need, and whether independent reviews back up the advertised speed. The consumer-oriented SSD databases and technical review links collected on Johnny Lucky's site are built around exactly this kind of comparison, covering everything from PCIe 5.0 drives to laptop, desktop, and game-console mini SSDs.

How an SSD differs from an HDD

The practical result: an SSD makes a machine feel responsive in everyday use, while an HDD is mainly a bulk-storage option. For a system drive or a game drive, the SSD is the default choice.

Match the interface to your machine

This is the step people most often get wrong, because an SSD that physically fits may still not run at its rated speed.

• SATA (2.5-inch): The compatibility fallback. Works in most desktops and older laptops that have a 2.5-inch bay. Capped by the SATA interface, so don't expect NVMe-level performance.
• M.2 SATA: Same M.2 slot shape as NVMe but running the older SATA protocol. Fits the slot, performs like a SATA drive.
• M.2 NVMe (PCIe): The current mainstream for laptops and desktops. Performance scales with the PCIe generation — PCIe 3.0, 4.0, or 5.0. A PCIe 5.0 drive in a PCIe 3.0 slot will work but run at the slower link speed.
• Mini SSDs for consoles: Smaller form factors used to expand game consoles, listed separately in the SSD database alongside laptop and desktop drives.

Before buying, confirm two things: which protocol your M.2 slot supports (SATA vs NVMe) and which PCIe generation it runs at. Both are in your motherboard or laptop manual.

Check the physical size

M.2 drives come in length codes measured in millimeters:

• 2280 — 22 mm wide, 80 mm long. The most common size in desktops and full-size laptops.
• 2242 — 22 mm wide, 42 mm long. Found in some compact laptops and handhelds.
• 2230 — 22 mm wide, 30 mm long. Common in very small devices and certain consoles.

A longer drive generally won't fit a shorter slot, and a shorter drive may need a mounting screw at a different position. Measure or look up the supported length before ordering. Also check clearance: some M.2 slots sit under a heatsink or a laptop bottom panel with limited vertical room, which matters for drives that ship with their own heatsink.

Pick capacity and endurance for your use

• Capacity: Enough for the operating system, your main applications, and headroom for updates and temporary files. Game libraries and video work push this requirement up quickly.
• TBW (terabytes written): The rated total data you can write over the drive's life. Higher TBW suits heavy write workloads; everyday browsing and gaming use far less.
• DRAM cache: Drives with a dedicated DRAM cache generally sustain performance better under heavy load than DRAM-less designs, which may slow down during large transfers.
• Sequential vs random speed: Sequential figures describe large continuous transfers; random read/write figures describe the small, scattered operations that dominate everyday responsiveness. Marketing tends to highlight the bigger sequential number.

Use reviews and databases instead of spec sheets alone

Advertised speeds are peak figures measured under ideal conditions. Real-world behavior — sustained write speed after the cache fills, thermal throttling under a heatsink-less install, firmware quirks — shows up in independent technical reviews, not on the box.

Johnny Lucky's site is organized for this purpose: an SSD database with specifications and review links, a PSU database, and a PSU "Lemon List" flagging poorly performing power supplies with explanations of the problems found. Reviews are available in multiple languages, and the site can be read through Google Translate in over 100 languages. The stated aim is to help beginners and PC enthusiasts alike make informed hardware decisions.

A quick selection sequence

1. Identify your slot type and protocol (SATA, M.2 SATA, or M.2 NVMe) and PCIe generation.
2. Confirm the supported M.2 length (2280, 2242, 2230) and any clearance limits.
3. Set a capacity that covers your OS, applications, and games with room to spare.
4. Compare TBW, DRAM cache, and random read/write figures — not just the headline sequential speed.
5. Cross-check the specific model against independent reviews and an SSD database before buying.

Following that order avoids the two most common mistakes: buying a drive that fits but runs at a slower protocol, and paying for peak speeds the rest of the system can't use.

Data storage is the hardware that keeps your files, operating system, and applications when the power is off—unlike RAM, which is temporary working memory cleared at shutdown. Choosing the right type means matching three things to your situation: the device you're upgrading (laptop, desktop, or gaming console), the form factor and interface it accepts, and how much capacity and speed you actually need. For most people replacing an old mechanical drive, a SATA or NVMe solid state drive delivers the biggest real-world improvement. The sections below explain the main types, the specs that matter, and how to pick without overpaying.

Data storage vs. memory (RAM)

These are frequently confused, so it's worth separating them clearly:

• Storage holds data permanently. It's measured in gigabytes (GB) or terabytes (TB). Your operating system, games, photos, and documents live here.
• Memory (RAM) holds data only while the computer is running. It's measured in GB and is cleared when you shut down.

Adding storage gives you more room for files and programs. Adding RAM helps with multitasking and how many things can run at once. They solve different problems, and upgrading one won't fix a shortage of the other.

The main types of storage

HDDs still make sense for cheap, large-capacity backups or media libraries, but they're poor choices for a boot drive on a modern machine.

SATA SSDs are the safe, broadly compatible upgrade. If your machine has a 2.5-inch drive bay or an M.2 slot that only supports SATA, this is your path.

NVMe PCIe SSDs are the current performance standard. The Johnny Lucky SSD database notes it covers not only the newest PCI-e 5.0 drives but also storage for laptop and desktop PCs and mini SSDs for a variety of gaming consoles—so the category spans several physical formats, not one.

Key specs that actually matter

• Capacity — Buy more than you think you need. Operating systems and modern games consume space quickly, and drives perform better when they aren't nearly full.
• Read/write speed — Affects load times, file transfers, and how quickly large projects open. NVMe drives lead here; SATA SSDs are capped by the interface.
• Endurance — Usually expressed as total bytes written (TBW) or drive writes per day (DWPD). Higher endurance suits heavy write workloads like video editing or constant database activity.
• Form factor — The physical shape and connector. A 2.5-inch SATA drive, an M.2 stick, and a console-specific module are not interchangeable. Check what your device accepts before buying.
• Interface and protocol — SATA and NVMe are different signaling methods. An M.2 slot may support either, so confirm which one your slot uses.

Matching storage to your use case

Laptops: Many modern laptops take a single M.2 NVMe drive; older or budget models may use a 2.5-inch SATA bay or an M.2 SATA slot. Check your model's spec sheet for the slot type and maximum supported capacity.

Desktops: The most flexible case. You can often run an NVMe boot drive plus one or more SATA SSDs or HDDs for bulk storage. This split—fast drive for the OS and apps, larger cheaper drive for archives—is a common and cost-effective setup.

Gaming consoles: Consoles typically require a specific expansion format rather than a standard desktop drive. The Johnny Lucky SSD database explicitly includes mini SSDs for a variety of gaming consoles, which is a useful starting point for identifying compatible options.

Beginners on a budget: A single SATA SSD of adequate capacity will transform an older machine. You don't need the fastest NVMe drive to feel a major improvement over an HDD.

PC enthusiasts: NVMe PCIe 5.0 drives and higher-endurance models are worth considering when you're chasing maximum throughput or running write-heavy workloads.

Warning signs of a failing drive and when to upgrade

Watch for these signals:

• Frequent crashes, freezes, or errors during file access
• Corrupted or suddenly missing files
• Unusual clicking, grinding, or whining noises (mechanical drives)
• The system reporting the drive as failing in its health tools
• A drive that's persistently full and slowing everything down

If you see hardware failure signs, back up your data immediately—don't wait for a convenient moment. If the issue is simply that your machine feels slow and the drive is an old HDD, an SSD upgrade is usually the single most effective fix.

Where to research specific models

Because drive models, interfaces, and console compatibility change constantly, use a maintained reference rather than a static list. The Johnny Lucky website provides free, consumer-oriented SSD and PSU databases with technical specifications and links to reliable technical reviews, and its reviews are available in multiple languages via Google Translate. That makes it a reasonable starting point for comparing specifications across current drives before you buy.

For power supply considerations when building or upgrading a desktop, the same site maintains a PSU database covering desktop power supplies, including newer ATX 3.0 models with the 16-pin 12VHPWR cable and the ATX 3.1 and 12V-2x6 cable that replaces it. It also publishes a "PSU Lemon List" flagging poorly performing units—useful if you're upgrading storage and want to confirm the rest of your build can support the change.

Choose a power supply (PSU) by matching its wattage and connectors to your CPU and GPU, then verifying the specific model against independent technical reviews before buying. The Johnny Lucky website is built for exactly this: it maintains a free PSU database linking to reliable technical hardware reviews and analysis of PSU components, plus a "PSU Lemon List" of low-quality units to avoid. Use it as a cross-check on any model you're considering, especially if you're a beginner working to a budget or an enthusiast building a new desktop.

Start With Wattage, Not Marketing

Estimate your real power draw from the two components that dominate it:

• CPU — check its rated power and any sustained boost behavior.
• GPU — this is usually the largest single load; use the manufacturer's recommended PSU wattage as a floor, not a target.
• Add storage, fans, and motherboard overhead (modest for most builds).

Then leave headroom above your estimate rather than running at the limit. Headroom covers transient spikes, keeps the unit in its efficient range, and leaves room for a future GPU upgrade. If you plan to move to a newer high-power GPU later, size for that now instead of buying twice.

Check the Specs That Actually Matter

Efficiency certification is not the same as quality — a unit can be efficient and still poorly built. That's why the review cross-check below matters more than the badge.

Know the New Connector Standards Before You Buy

If you're buying for a current-generation GPU, the connector standard affects compatibility:

• ATX 3.0 models include a 16-pin 12VHPWR power cable.
• ATX 3.1 and the newer 12V-2x6 cable replace 12VHPWR.

The Johnny Lucky PSU database now includes new ATX 3.0 models with the 16-pin 12VHPWR cable as well as the newer ATX 3.1 and 12V-2x6 cable. Match the PSU's native cabling to your GPU's connector so you're not relying on adapters, and confirm the specific cable type on the model's review page rather than assuming from the ATX version alone.

Verify the Exact Model Against Independent Reviews

Model names and revision numbers change while the brand stays the same, so verify the specific unit:

1. Open the PSU database on Johnny Lucky and locate your candidate model.
2. Follow the linked technical review and read the component analysis, not just the summary score.
3. Check the PSU Lemon List for that model or brand family before you commit.
4. Confirm the review covers the same revision you're buying.

Reviews on the site are available in multiple languages, and Google Translate can render the site and reviews in over 100 languages — useful when the most detailed teardown of a unit exists only in another language.

Warning Signs of a Bad Power Supply

The site's PSU Lemon List exists because low-quality units are often promoted with false advertising. Treat these as reasons to dig deeper:

• No independent teardown or component-level review available.
• Wattage claims that don't match the +12V rating.
• A brand with no track record on the model you're buying.
• Reviews that only repeat the spec sheet.

If a unit fails these checks, the database and Lemon List are the fastest way to find out before you spend money.

A Practical Buying Sequence

1. Estimate CPU + GPU load and add headroom.
2. Shortlist units at that wattage with the connector standard your GPU needs.
3. Look each candidate up in the PSU database and read the linked review.
4. Screen the shortlist against the PSU Lemon List.
5. Buy the model whose reviewed revision matches what's in stock.

The Johnny Lucky site is free to use and aimed at consumers worldwide choosing components for a build, an upgrade, or a gaming system — so the database and Lemon List are the two pages to bookmark before any PSU purchase.
