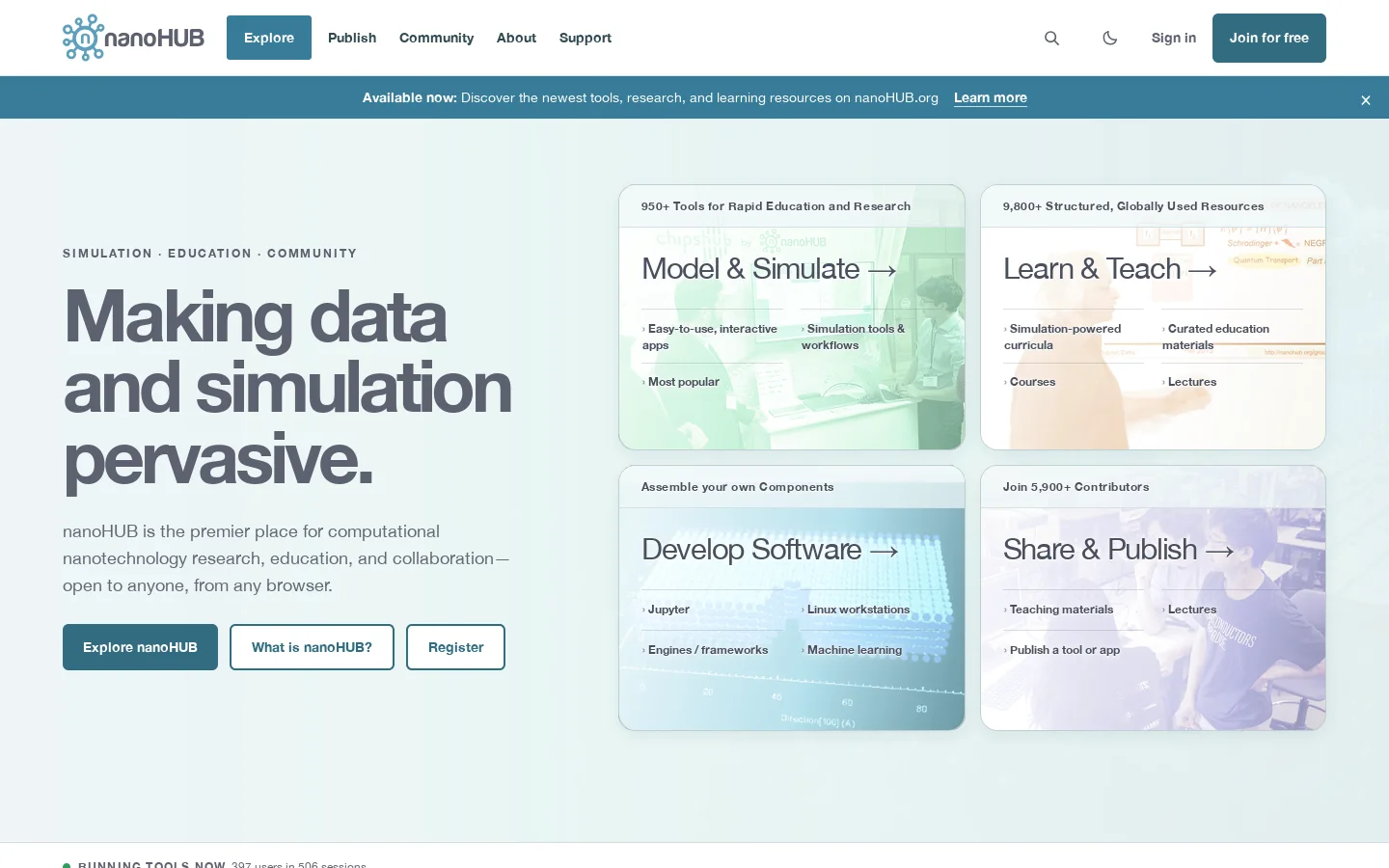

nanoHUB.org is a web-based platform for computational nanotechnology research, education, and collaboration, open to anyone from any browser. It is built around four activity areas—Model & Simulate, Learn & Teach, Develop Software, and Share & Publish—and hosts 950+ simulation tools, 9,800+ published resources, and 5,900+ contributors serving 381,000+ registered members. It suits researchers who need simulation tools without local setup, educators building simulation-powered curricula, students learning through interactive apps, and developers publishing tools or apps.

What nanoHUB.org Is

nanoHUB describes itself as "the premier place for computational nanotechnology research, education, and collaboration," with the stated goal of "making data and simulation pervasive." The platform spans nanotechnology topics including nanoelectronics, nanobio, nanophotonics, nanomedicine, nanotransistors, NEMS, NEGF, and material science.

Two things distinguish it from a typical resource site:

• Simulation runs in the browser. Tools are interactive apps, so you don't install simulation software locally.
• Resources are published by their creators. Papers, seminars, lecture series, and teaching materials are contributed by researchers and are citable when you build on them.

The Four Main Activity Areas

Model & Simulate

The platform hosts 950+ simulation tools. Examples named on the site include:

• Silvaco TCAD — the most-used tool at the time of the snapshot (72 users)
• ABACUS — Assembly of Basic Applications for Coordinated Understanding of Semiconductors (39 users)
• Process Lab: Oxidation (28 users)
• MOSCap (19 users)
• Band Structure Lab (18 users)
• Jupyter Notebook (202105) (17 users)
• Chip Design Explorer (16 users)
• Drift-Diffusion Lab (15 users)
• TCAD Lab (14 users)
• AURA AI Agents for Simulations, Materials and Scientific Data (MCP Server) (14 users)

The site reported 397 users running tools across 506 sessions at the time of the snapshot, so tools are actively used rather than just listed.

Learn & Teach

9,800+ structured, globally used resources are available, organized as courses, lectures, and curated education materials. Recent examples from the community feed include:

• Nanoelectronic Modeling Lecture 21.5: NEMO3D – Scaling to Large Problems: Parallel Computing (Online Presentation)
• Nanoelectronic Modeling Lecture 21.2: NEMO3D – Strain: Balls and Springs (Online Presentation)
• Control Circuit Lab — a teaching activity where students wire and interpret a Manual-Off-Auto control circuit simulating an industrial pneumatic system, then use validation testing to identify faults; tagged circuits, first-year engineering, sensor electronics, control systems

Develop Software

Contributors can work with Jupyter, Linux workstations, engines and frameworks, and machine learning. This area is aimed at people building or extending simulation tools rather than only running them.

Share & Publish

Contributors (5,900+ of them) publish teaching materials, lectures, and tools or apps. Published resources are citable, which matters if you want your teaching material or tool to be referenced by others.

How to Get Started

1. Browse first. Explore the tool catalog and resource library to see whether your topic area is covered—check for tools like Band Structure Lab or Silvaco TCAD if you work in semiconductors.
2. Register for an account. The site presents registration as the step for getting started; some tools and sessions are tied to registered members (381,000+).
3. Run a tool in your browser. Launch an interactive app and confirm it fits your task before committing to a workflow.
4. Use or adapt learning materials. Pull courses, lectures, or activities like the Control Circuit Lab into your own teaching.
5. Publish if you contribute. If you build a tool, app, or teaching material, the Share & Publish path lets you post it and make it citable.

Who It's For

• Researchers who want simulation tools and workflows without local installation
• Educators who want simulation-powered curricula and ready-made activities
• Students who learn best through interactive apps and lectures
• Developers who want to build on Jupyter, Linux workstations, engines, or machine learning frameworks
• Contributors who want their tools, apps, or teaching materials published and citable

The site does not state pricing or login requirements for specific tools in the material available here, so check the individual tool page before assuming a given app is open without registration.

Nanobio is the area where nanoscience meets biology: it covers nanoscale materials, devices, and computational methods applied to biological systems. It overlaps heavily with bionanotechnology (the engineering side) and nanomedicine (the clinical side), but the three terms are not interchangeable. If you want to explore the field rather than just define it, nanoHUB.org is a practical starting point — it hosts simulation tools, lectures, and teaching materials, including nanobio as a listed topic area, and is open to anyone from a browser.

The three terms, separated

The practical rule: nanobio is the broad intersection, bionanotechnology is the build side, and nanomedicine is the clinical application. A single project can sit in all three — a nanoparticle designed to bind a protein (bionanotechnology), studied for how it interacts with cells (nanobio), and tested as a delivery vehicle (nanomedicine).

What nanobio actually covers

Four application areas come up most often:

• Biosensing — nanoscale transducers that detect biomolecules at low concentration.
• Drug delivery — carriers that control where and when a therapeutic is released.
• Imaging — contrast agents and probes that make biological structures visible.
• Biomolecular simulation — modeling proteins, membranes, and nanostructures computationally instead of only experimentally.

The last one matters because nanobio sits at a scale where experiments are expensive and hard to instrument. Simulation lets you test a hypothesis before committing to a lab workflow.

How simulation platforms support nanobio work

nanoHUB describes itself as a place for computational nanotechnology research, education, and collaboration, with 950+ simulation tools, 9,800+ published resources, and 5,900+ contributors. Its four stated activity areas are Model & Simulate, Learn & Teach, Develop Software, and Share & Publish.

For nanobio specifically, that translates into:

• Running tools — interactive apps you launch in a browser, no local install. The site shows live usage counts, so you can see which tools are active.
• Learning — courses, lectures, and curated teaching materials, including online presentations such as the Nanoelectronic Modeling lecture series.
• Publishing — you can publish a tool, app, or teaching material and cite it when others build on it.

A realistic first task: pick a biomolecular or nanoscale simulation tool, run it with a default example, then change one parameter and compare the output. That gives you a feel for the method before you invest in reading the theory.

Where to start

1. Define your question. Sensing, delivery, imaging, or simulation — the answer changes which tools are relevant.
2. Browse before you build. Look at what tools are currently running and what resources are newly published; usage counts tell you what the community actually uses.
3. Use the education path if you are new. Lectures and teaching materials are structured for learners, not just researchers.
4. Check the software path if you code. Jupyter, Linux workstations, and ML frameworks are listed as development options.
5. Register if you want to publish or save work. The site offers registration; browsing is described as open to anyone from any browser.

Common sticking points

• Treating the terms as synonyms. They overlap but point to different work; using the wrong one makes literature searches noisy.
• Skipping the biology. A nanoscale tool that ignores how biomolecules actually behave will not transfer to a biological system.
• Assuming a tool fits your problem. Tool names describe methods, not your specific biomolecule — check the example case first.

If your goal is to understand the field conceptually, the definitions above are enough. If your goal is to do something — run a simulation, teach a class, or publish a tool — nanoHUB's Model & Simulate and Learn & Teach sections are the concrete next step.

Nanoelectronics is the branch of nanotechnology concerned specifically with electronic devices and the transport of charge at nanometer scales—transistors, interconnects, memory cells, and the quantum effects that appear when device dimensions shrink below roughly 10 nm. It differs from nanotechnology as a whole in scope: nanotechnology covers nanoscale materials, biology, photonics, and medicine, while nanoelectronics narrows that focus to how electrons move, switch, and are controlled in nanoscale structures. If you want to understand the devices inside modern chips or model them yourself, nanoelectronics is the relevant field; if you are interested in nanoparticles for drug delivery or nanoscale optics, that falls under nanomedicine or nanophotonics instead.

Where the boundary sits

Nanotechnology is an umbrella term for engineering and science at dimensions of roughly 1–100 nm. Nanoelectronics is one subfield within that umbrella, alongside nanobio, nanophotonics, and nanomedicine. The distinction matters because the physics, the tools, and the questions are different.

The overlap is real—quantum dots appear in both lists—but the intent differs. In nanotechnology a quantum dot may be studied for its optical emission; in nanoelectronics it is studied as a confined electronic system whose energy levels set device behavior.

Core building blocks

Nanoelectronics deals with a recognizable set of device and material classes:

• Nanotransistors — MOSFETs and related structures whose channel, gate, or oxide dimensions are in the nanometer range.
• Quantum dots — semiconductor nanocrystals or gated structures where electron states are quantized by confinement.
• Nanowires — one-dimensional conductors or semiconductors used as channels, sensors, or interconnects.
• 2D materials — atomically thin layers such as transition-metal dichalcogenides and graphene-like systems, used as transistor channels and contacts.
• NEMS — nanoelectromechanical systems, where mechanical motion and electronic readout meet at the nanoscale.

Each of these changes the design problem because the assumptions that work for micrometer-scale devices stop holding.

Why quantum and ballistic transport matter below ~10 nm

In a conventional transistor, electrons are treated as particles that drift and diffuse through a channel, scattering off impurities, phonons, and boundaries along the way. That picture works when the channel is long compared with the mean free path between scattering events.

As dimensions shrink toward and below about 10 nm, two things change:

1. Transport becomes ballistic or quasi-ballistic. An electron may cross the channel without scattering, so drift-diffusion no longer captures the current correctly.
2. Quantum confinement and tunneling appear. Energy levels quantize, and carriers can tunnel through barriers that classical physics would treat as impenetrable—gate leakage and source-to-drain tunneling become first-order design concerns.

This is the practical reason nanoelectronics is treated as its own field rather than an extension of microelectronics: the governing physics changes, and so do the modeling methods.

Simulation approaches and when to use each

Different models trade physical fidelity against computational cost. Choosing the right one depends on the device size and the effect you need to capture.

A common workflow is to start with drift-diffusion or TCAD for the overall device and process, then move to NEGF when the channel is short enough that quantum transport dominates. NEGF is the standard formalism for nanoscale transport because it handles both the device region and the contacts on equal footing and produces energy-resolved quantities such as transmission and current spectra.

Getting hands-on with open resources

nanoHUB.org is a computational nanotechnology resource open to anyone from a browser, and it hosts simulation tools, courses, and lectures relevant to nanoelectronics. According to the site, it offers 950+ simulation tools, 9,800+ published resources, 5,900+ contributors, and 381,000+ registered members, organized under Model & Simulate, Learn & Teach, Develop Software, and Share & Publish.

For nanoelectronics specifically, the platform lists tools and materials such as:

• Band Structure Lab — for exploring electronic band structure.
• Drift-Diffusion Lab and MOSCap — for classical device electrostatics and transport.
• Process Lab: Oxidation and TCAD Lab — for process and device simulation.
• ABACUS — Assembly of Basic Applications for Coordinated Understanding of Semiconductors.
• Nanoelectronic Modeling lectures, including NEMO3D topics such as scaling to large problems with parallel computing and strain modeling.

A practical starting path: pick a tool that matches your device scale (drift-diffusion or MOSCap for classical behavior, Band Structure Lab for electronic structure, NEGF-based tools for quantum transport), run it with default parameters to see the expected output, then vary one parameter at a time—channel length, gate voltage, or material—and observe how the result departs from classical predictions. That departure is usually where nanoelectronics begins.

How to decide what you actually need

• If you are studying materials or phenomena without a device context, you want general nanotechnology resources.
• If you are studying charge transport, switching, or device behavior at small dimensions, you want nanoelectronics.
• If your device is larger than roughly 100 nm and classical behavior dominates, drift-diffusion or TCAD is sufficient.
• If your channel is below ~10 nm or you care about tunneling and confinement, you need quantum transport methods such as NEGF.

The field is defined less by a size threshold than by whether quantum and ballistic effects are part of the problem you are solving.
