A regular expression (regexp, or regex) is a small pattern language for describing text. You write a pattern, and a regex engine scans a string to find matches, extract parts of it, or replace what it finds. You use one whenever you need to search, validate, or transform text by shape rather than by exact wording — for example, finding every date in a log file, checking that input looks like an email, or renaming files in bulk. The rest of this article explains the building blocks, walks through a pattern, and covers the mistakes that trip people up.

The core building blocks

Almost every regex is assembled from a handful of constructs. Learn these and you can read most patterns you encounter.

Two notes that matter in practice. First, shorthand classes are conventions, not universal law: in most engines \d means [0-9], but some engines extend it to other digit characters, so check your engine if exactness matters. Second, the dot is deliberately broad — c.t also matches "c@t" — which is why people often replace it with a specific class like [a-z].

Reading a pattern step by step

Take this pattern, which is meant to find a simple date:

\b\d{4}-\d{2}-\d{2}\b

Read it left to right:

• \b — a word boundary, so the match doesn't start in the middle of a longer token.
• \d{4} — exactly four digits (the year).
• - — a literal hyphen.
• \d{2} — exactly two digits (the month).
• - — another literal hyphen.
• \d{2} — exactly two digits (the day).
• \b — a closing word boundary.

Against the text Logged 2024-06-01 at noon, it matches 2024-06-01. Against id 12024-06-01, the leading \b prevents a match starting at the "1" inside the longer number, because there is no boundary between two digits.

That last point is the whole value of anchors and boundaries: they turn a pattern that finds "something that looks like a date" into one that finds "a date as a standalone token."

Where regex shows up in everyday work

• Search and replace. Editors and IDEs support regex in find-and-replace, so you can rewrite (\w+),\s*(\w+) into $2 $1 to swap "Last, First" into "First Last".
• Validation. Forms and APIs check that input matches an expected shape, such as a postal code or a phone number format.
• Log parsing. You pull structured fields out of unstructured lines — timestamps, status codes, request paths — by capturing groups.
• Data cleanup. You normalize whitespace, strip trailing punctuation, or split a field on a delimiter.
• Routing and config. Many web frameworks and tools accept regex for URL routes, allow/deny lists, and file filters.

Common pitfalls

Greedy matching. Quantifiers like * and + match as much as possible by default. In <b>one</b> <b>two</b>, the pattern <b>.*</b> matches the entire string, not the first tag. Adding ? (<b>.*?</b>) makes it lazy and stops at the first closing tag.

Unescaped special characters. Characters such as ., *, +, ?, (, ), [, ], {, }, ^, $, |, and \ have meaning. To match them literally, escape them with a backslash — \. matches a literal dot, \$ a literal dollar sign.

Over-broad classes. \w includes letters, digits, and underscore, so \w+ will happily match abc_123. If you only want letters, say [A-Za-z]+.

Catastrophic backtracking. Nested quantifiers over ambiguous patterns can make a match take exponential time on certain inputs. If a pattern hangs on long strings, simplify the nesting or make alternatives more specific.

Assuming one flavor. Engines differ. Lookbehind, named groups, and Unicode property escapes are supported in some languages and not others. A pattern that works in one tool may fail in another.

Test before you ship

Because a pattern's behavior depends on the exact input and the engine, run it against real samples before using it in code or a bulk edit. A visualizer is useful here: it renders the pattern as a diagram so you can see how the pieces nest, and it lets you paste test strings to watch matches highlight in real time. Regex Vis (regex-vis.com) is one such visualizer and editor — note that its page requires JavaScript to run, so enable it before loading the tool. The workflow that avoids most surprises:

1. Write the pattern and paste a few strings that should match.
2. Add strings that should not match, especially near-misses like the 12024-06-01 case above.
3. Check which parts are captured if you plan to extract or replace.
4. Confirm the same pattern behaves the same way in your target language or tool.

Once the pattern passes those checks, apply it. If it fails later, the failing input is usually the fastest clue to which building block needs tightening.

Piskel is a free, open-source, browser-based editor for animated sprites and pixel art. You can design characters, animations, and tiles directly in your browser, then export them as animated GIFs, PNG spritesheets, or ZIP files. It works best in a desktop browser in landscape orientation, and offline desktop versions are available for Windows, OSX, and Linux if you prefer not to work in the browser.

Getting Started

Open piskelapp.com in a desktop browser. You have two starting points:

• Start from scratch — create a blank sprite and set your own canvas size.
• Try an example — load one of the built-in sprite examples (characters, tilesets, layered backgrounds, Gameboy retro graphics) to see how a finished sprite is structured before making your own.

If you're on a phone or tablet, Piskel will warn you that it's best used in a desktop browser in landscape orientation. You can open it anyway, but the drawing tools are designed around a mouse and a wider canvas.

Drawing Pixel Art Frame by Frame

Piskel's workflow is frame-based: each frame is a single still image, and the animation plays them in sequence.

1. Set up your canvas. Choose a small pixel grid (classic sprites are often 16×16, 32×32, or 64×64). Small canvases keep individual pixels visible and editable.
2. Draw with the pen tool. Click individual pixels to place color. This is the core action for pixel art — every pixel is a deliberate decision.
3. Fill areas with the fill tool. Use it to flood a region with a single color instead of clicking pixel by pixel.
4. Pick and manage colors. Choose from the color palette, or select an existing color from your canvas to reuse it consistently across frames.
5. Add frames. Duplicate the current frame and modify it slightly to create motion — this is how walk cycles, blinking, and idle animations are built.

The key habit for animation: keep changes between consecutive frames small. A two-pixel shift in a leg position reads as movement; a ten-pixel jump reads as a glitch.

Previewing and Tuning the Animation

Piskel shows a live preview of your animation in real time as you draw, so you don't have to export to check whether the motion works.

• Adjust frame delay on the fly. Each frame's delay controls how long it stays on screen. Shorter delays make fast motion; longer delays make slow, deliberate movement.
• Watch the loop. Because the preview loops continuously, you'll immediately see whether the first and last frames connect smoothly or whether there's a visible jump.

Tune the delay while watching the preview rather than guessing — the same frames can feel completely different at different speeds.

Exporting Your Work

Piskel supports several export modes depending on what you need the file for:

Choose GIF when the animation is the final product. Choose a spritesheet PNG or ZIP when the sprite is an asset that another program will read.

Options for Kids and Offline Use

• Piskel for Kids is a child-friendly version of the editor, designed to be safe and distraction-free. It's aimed at kids, teachers, and parents who want the same pixel art workflow without extra interface elements.
• Offline versions are free desktop applications for Windows, OSX, and Linux, available from the download page. Use these if you need to work without an internet connection or want a dedicated application window.

Common Sticking Points

• Working on a small screen. The editor is built for desktop and landscape orientation; drawing precision suffers on a phone.
• Frames that don't loop cleanly. If the animation snaps when it restarts, the last frame doesn't lead back into the first — adjust the final frame's pose or delay.
• Exporting the wrong format. A GIF is for viewing; a spritesheet is for importing into a game. Picking the wrong one means re-exporting later.

All of Piskel's code is open-source and available on GitHub, so the tool itself can be inspected, modified, or self-hosted if you need that level of control.

A regex visualizer is a tool that turns a regular expression into a diagram or highlighted match view so you can see how each part of the pattern behaves against real text. It's most useful when you're writing a pattern you don't fully trust yet, or when you've inherited a dense expression and need to understand it. Regex Vis (regex-vis.com) is one example: it describes itself as a "regex visualizer & editor" that aims to "make the regular expression easier." Note that its page requires JavaScript to run, so it works in the browser but won't render without it.

What a visualizer actually shows you

A visualizer maps the structure of a pattern onto a picture. Instead of reading ^(\d{3})-(\d{4})$ as a string of symbols, you see a sequence of blocks: a start anchor, a group of three digits, a literal hyphen, another group of four digits, and an end anchor. Each block corresponds to a piece of the pattern, and the nesting shows which pieces belong together.

Most visualizers also run the pattern against sample input and highlight what matched. That combination — structure plus live match — is the core value. You stop guessing what a subexpression does and start seeing it.

How to read a visual diagram

The diagram is a tree or flow of the pattern's parts. A few conventions are worth knowing:

• Sequence reads left to right (or top to bottom), matching the order the regex engine tries.
• Groups appear as nested containers. Capturing groups (...) are labeled; non-capturing groups (?:...) are shown but not numbered.
• Quantifiers attach to the element they modify. a+, a*, a?, and a{2,5} each render as a marker on the a block, not as separate nodes.
• Alternation | splits into branches, showing that the engine will try one path, then the other.
• Anchors ^ and $ sit at the boundaries of the sequence.

Once you can trace the diagram, you can answer questions like "which group captures the year?" or "does the * apply to the whole group or just the last character?" by looking rather than by reasoning about operator precedence.

Using a visualizer to test and debug

The practical loop is: write or paste a pattern, supply sample strings, and watch what matches.

1. Enter the pattern. Paste your regex into the editor field.
2. Provide test input. Add strings that should match and strings that shouldn't. Include edge cases — empty strings, extra whitespace, the boundary values of any ranges.
3. Read the match highlighting. See which parts of each sample string are consumed and which groups capture what.
4. Adjust and repeat. Edit the pattern and watch the diagram and matches update.

A visualizer is especially good at surfacing mismatches you'd otherwise miss: a pattern that looks right but fails on a trailing newline, or one that matches more of the string than you intended.

Editing visually and copying back to code

Some visualizers, including Regex Vis, are editors as well as viewers. You can build or restructure a pattern through the interface and then copy the resulting regex string into your code. The workflow is:

• Construct or modify the pattern in the visual editor.
• Confirm it against your sample strings.
• Copy the final regex text.
• Paste it into your source file, remembering to re-apply the language-specific delimiters and flags (for example, /pattern/g in JavaScript, or re.compile(r"...") in Python).

The visualizer doesn't change the regex syntax — it just gives you a different way to author and inspect the same string. Whatever you copy out is plain regex that your language's engine will run.

Common pitfalls a visualizer helps catch

• Greedy matching. .* grabs as much as it can. Seeing the highlight extend to the end of the line makes it obvious why .*? (lazy) or a more specific character class is often what you want.
• Unescaped special characters. A . that was meant as a literal dot, or a + inside a character class, shows up as a wildcard or quantifier in the diagram — a visual cue that you forgot a backslash.
• Group boundaries. Whether a quantifier applies to one character or a whole group is easy to misjudge in text and obvious in a diagram.
• Anchoring. A pattern without ^/$ may match a substring you didn't intend; the highlight reveals the partial match.
• Alternation scope. cat|dog and (cat|dog)s behave differently, and the branch structure makes the difference visible.

When a visualizer is the right tool — and when it isn't

Use one when you're learning regex, debugging a pattern that misbehaves, or reviewing an expression someone else wrote. It's a reading and testing aid, not a replacement for understanding the syntax.

It's less helpful for patterns that are inherently hard to draw — very long expressions, heavy backreferences, or lookarounds can produce diagrams that are as hard to read as the original text. For those, testing against a good set of sample strings matters more than the picture. And because Regex Vis needs JavaScript enabled, if you're working in an environment where scripts are blocked, you'll need a different approach.

The fastest way to get value: take a pattern you already have, paste it in, and check it against one string that should match and one that shouldn't. The diagram will tell you whether your mental model of the pattern is correct.

A regular expression (regex) is a text pattern that describes a set of strings, used to search, match, validate, or replace text. You use it whenever you need to find something in text that follows a rule rather than an exact literal — digits, email-shaped strings, repeated words, or whitespace. This explainer covers the core syntax, how to read a pattern piece by piece, and how a visualizer such as Regex Vis (regex-vis.com) helps you test and debug one.

Where regex shows up

Regex is a general-purpose tool embedded in many environments, so the same core syntax appears across them:

• Search and replace in editors, IDEs, and command-line tools like grep, sed, and awk.
• Input validation in application code — checking that a field looks like an email, a phone number, or a date.
• Text processing and parsing — extracting fields from logs, splitting on delimiters, or normalizing whitespace.
• Routing and configuration — matching URL paths or filtering lists of names.

The syntax is broadly shared, but the exact feature set varies by engine (PCRE, JavaScript, Python re, POSIX, and others). A pattern that works in one engine may need small changes in another.

Core syntax you need to read a pattern

A regex is built from a small set of building blocks. Once you recognize them, you can read almost any pattern.

Two rules make the table click:

1. Quantifiers apply to the single element before them. In ab*, the * applies only to b, so it matches a, ab, abb — not abab.
2. Anchors don't consume characters. ^ and $ assert a position, which is why ^\d+$ means "the whole string is digits" rather than "contains digits."

How to read a regex piece by piece

Instead of memorizing whole patterns, parse them left to right and name each part. Take this common email-shaped pattern:

^[^\s@]+@[^\s@]+\.[^\s@]+$

Reading it in order:

• ^ — start of the string.
• [^\s@]+ — one or more characters that are neither whitespace nor @. This is the local part.
• @ — a literal at-sign.
• [^\s@]+ — the domain name, again no whitespace or @.
• \. — a literal dot (escaped, so it isn't the "any character" wildcard).
• [^\s@]+ — the top-level domain portion.
• $ — end of the string.

This pattern is deliberately loose. It accepts [email protected] and rejects a [email protected], but it also accepts things a stricter validator would reject. That trade-off is normal: regex is good at shape, not at full standards compliance.

Practical examples

• Digits only: ^\d+$ — the entire string is one or more digits.
• Whitespace: \s+ — one or more whitespace characters, useful for collapsing runs of spaces.
• Optional prefix: ^\+?\d{7,15}$ — an optional leading + followed by 7 to 15 digits.
• Word boundaries: \bcat\b — cat as a whole word, not inside concatenate.
• Capture groups: (\w+)@(\w+) — captures the local part and domain separately for reuse.

Using a visualizer to debug a pattern

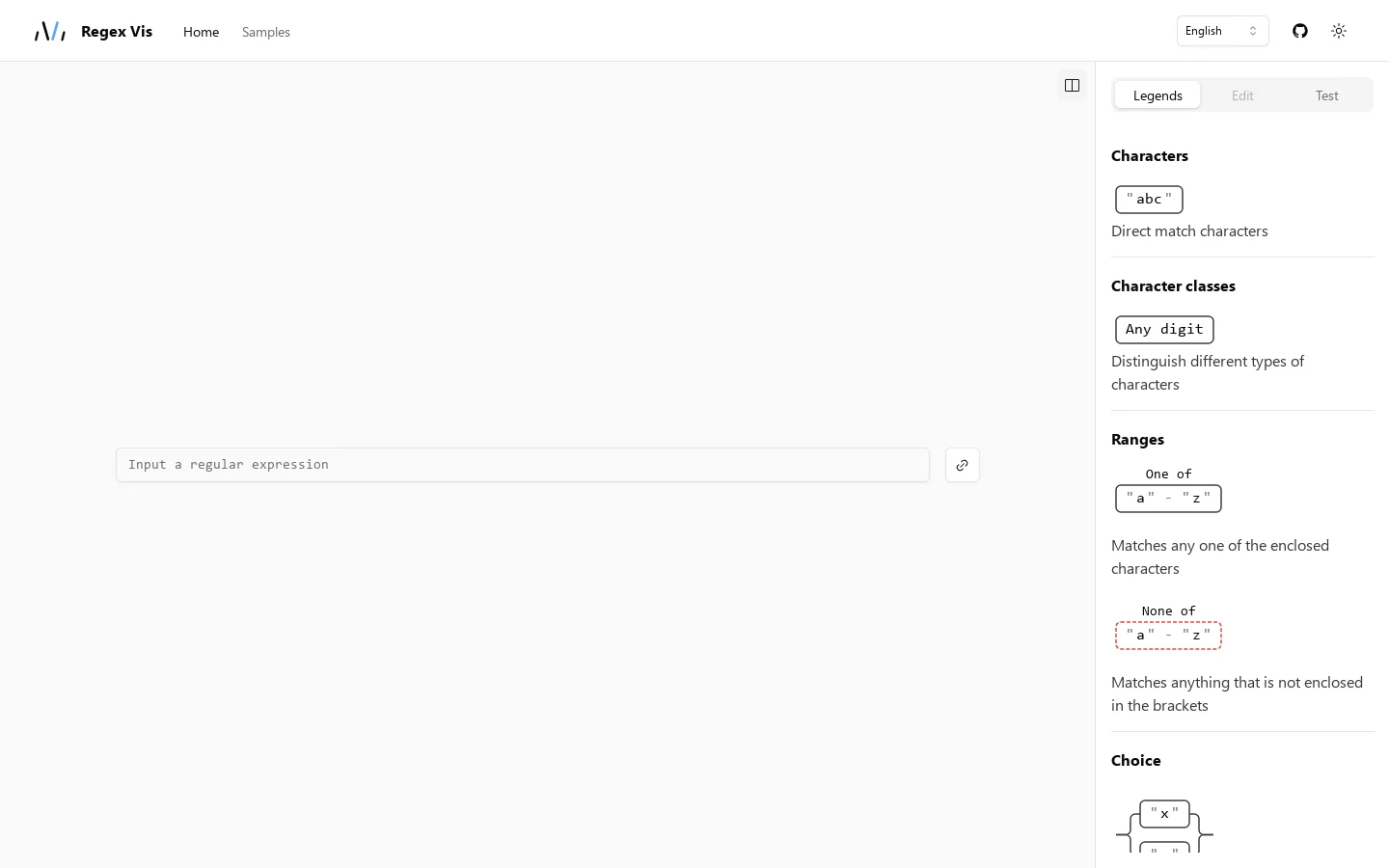

Regex Vis (regex-vis.com) is described as a "regex visualizer & editor" that aims to make regular expressions easier. Its page requires JavaScript to run, so it is a browser-based interactive tool rather than a static reference.

A visualizer helps in three concrete ways:

1. See the structure. A pattern is rendered as a diagram, so grouping and quantifier scope — the part people most often misread — become visible instead of implied.
2. Test against sample input. You can paste candidate strings and check which ones match, which turns an abstract pattern into a pass/fail you can observe.
3. Iterate safely. Editing the pattern and watching the diagram update makes it easier to narrow or broaden a match without breaking the parts that already work.

A practical workflow: write a rough pattern, test it against a few strings you know should match and a few you know should not, then refine. The negative cases are what catch over-permissive patterns like the email example above.

Common pitfalls

• Forgetting to escape. . matches any character; \. matches a dot. The same applies to +, *, ?, (, ), [, ], {, }, ^, $, and |.
• Greedy vs. lazy. .* grabs as much as possible; .*? grabs as little as possible. This changes results when a pattern could match several ways.
• Anchoring. Without ^ and $, a pattern matches anywhere in the string, which is often not what validation needs.
• Engine differences. Lookahead, lookbehind, named groups, and Unicode handling are not identical across engines. Check the documentation for the one you're using.
• Catastrophic backtracking. Nested quantifiers over large inputs can make some engines slow to a crawl. Simpler, more specific patterns avoid this.

FAQ

Is regex the same in every language? No. The core syntax is widely shared, but features like lookbehind and named captures differ. Always confirm against your engine's docs.

Can regex validate an email address perfectly? Not reliably. Regex handles the common shape well; full RFC compliance is impractical in a single pattern. Use regex for a first check and a dedicated validator when correctness matters.

Do I need to memorize patterns? No. Learn the building blocks, then read patterns piece by piece. A visualizer like Regex Vis is useful precisely because it shows the structure you'd otherwise have to hold in your head.
