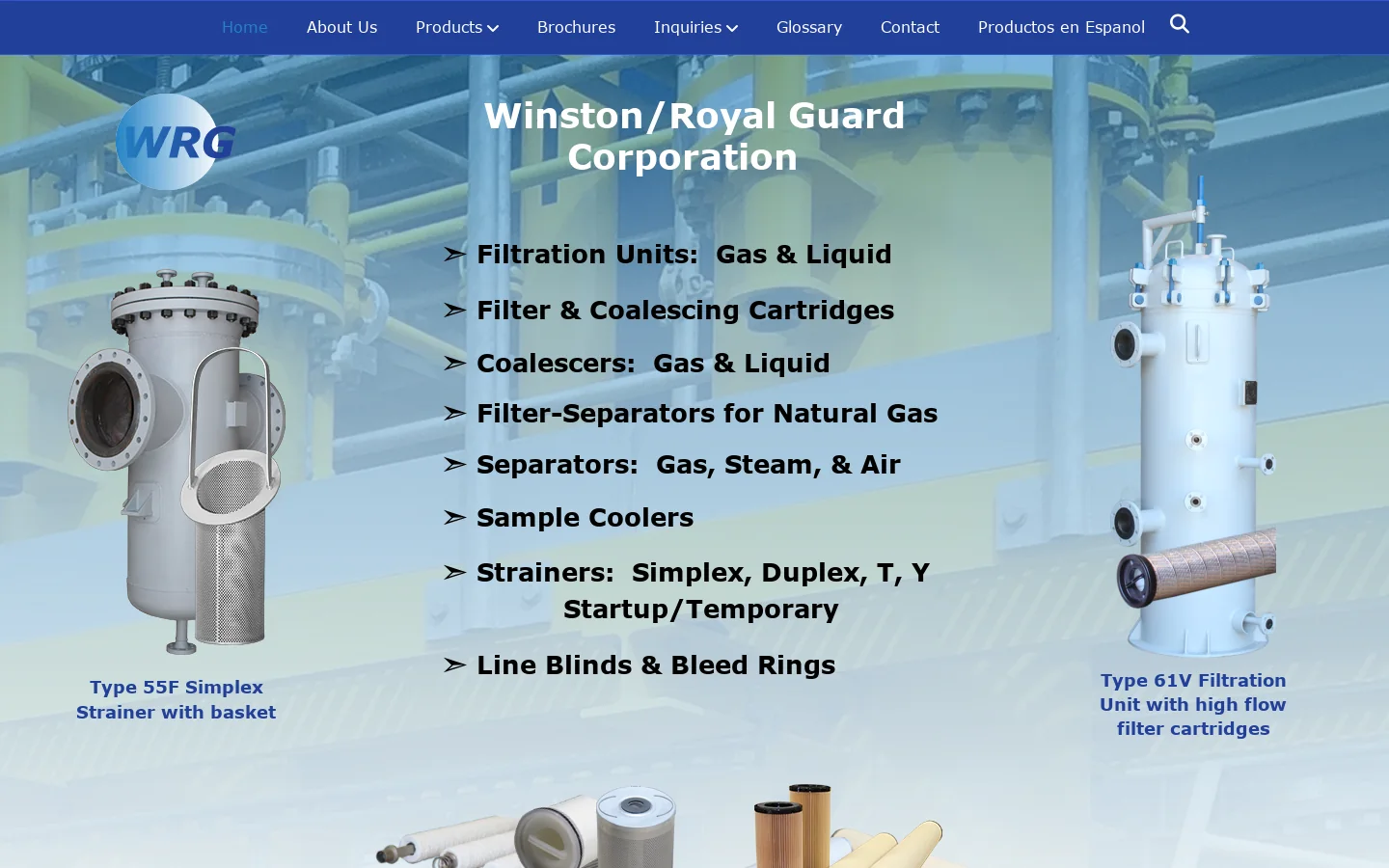

What is Winston/Royal Guard Corporation?
Winston/Royal Guard Corporation is a U.S. manufacturer of industrial separation, filtration, coalescing and straining equipment, based in White Oak, Texas, and serving process industries since 1958. Its product range covers filter-separators for natural gas, gas and liquid coalescers, gas/steam/air separators and scrubbers, sample coolers, filter and coalescer cartridges, simplex/duplex/T/Y strainers, and line blinds and bleed rings. The company states that its facility is ASME Section VIII, Division 1 certified with National Board certification and in-house non-destructive testing.
Who it is for
The equipment is aimed at engineers and operators in oil and gas, natural gas gathering and transmission, refining, petrochemicals, power, and pulp and paper — typically buyers specifying equipment for demanding, code-governed process duty rather than general-purpose filtration.
How to use this
If you are scoping a project, start from the process stream and contaminant: gas with entrained liquid points toward filter-separators or gas coalescers; particulate removal toward cartridges or strainers; hot sample handling toward sample coolers. Confirm code and certification requirements against the stated ASME and National Board credentials, and request the specific model data sheets (for example, the Type 55F simplex strainer or Type 61V filtration unit shown on the site) rather than relying on the overview page.
How do I choose between a simplex and duplex strainer for my pipeline?
Choose simplex when the line can be shut down for cleaning; choose duplex when the pipeline must keep flowing while the basket is serviced. That is the core trade-off: simplex is simpler and typically more compact, while duplex adds a changeover mechanism and parallel baskets so one side can be cleaned while the other stays in service.
How to decide
| Consideration | Simplex | Duplex |
|---|---|---|
| Cleaning | Stop flow, open housing, clean or swap basket | Switch to standby basket, clean the offline side |
| Continuous process | Poor fit if shutdowns are costly | Fits lines that cannot be interrupted |
| Footprint and piping | Smaller, simpler install | Larger, needs room for two baskets and valves |
| Operators | Straightforward | Requires a clear changeover procedure |
| Best for | Batch lines, lines with planned shutdowns, smaller flows | Continuous transmission, refining, petrochemical and power lines |
Practical scenario
A plant engineer specifying a strainer ahead of a burner or on a cooling-water line may accept a simplex unit if maintenance can be scheduled during normal downtime. On a natural-gas transmission line or a continuous process feed, a duplex strainer avoids repeated trips and lets maintenance clean the fouled basket while the standby side carries flow.
Winston/Royal Guard's page lists simplex, duplex, T and Y strainers, plus startup/temporary strainers, for liquids, gases and steam Winston/Royal Guard Corporation. That range suggests matching the strainer style to the line's service pattern rather than defaulting to one type.
Next step
Before ordering, confirm the design flow, pressure and temperature, allowable pressure drop, particle size to remove, and whether the line can be isolated. Then decide whether the cost of a duplex changeover is justified by avoided downtime.
What type of filter-separator is suitable for natural gas transmission lines?
For natural gas transmission lines, the suitable category is a filter-separator—a two-stage unit that removes solid particles and entrained liquid droplets in one vessel. The first stage (filter cartridges or coalescing elements) captures solids and coalesces fine liquid mists; the second stage (a mist extractor or settling section) separates the enlarged droplets from the gas stream before it leaves the unit. This is distinct from a plain separator or scrubber, which relies mainly on gravity and impingement and is less effective at removing fine aerosols.
Winston/Royal Guard lists Filter-Separators for Natural Gas as a product line alongside gas/liquid coalescers, separators and scrubbers, and filter/coalescer cartridges—so a transmission-line duty would typically be matched to that filter-separator line, with cartridge choice depending on the contaminant load.
What to match to your line conditions
- Contaminant type: fine mists and sub-micron solids call for coalescing filter elements; heavy liquid slugs may need a upstream scrubber or knockout drum ahead of the filter-separator.
- Flow and pressure drop: transmission lines run at high pressure and steady high flow, so element sizing and allowable pressure drop drive vessel and cartridge selection.
- Liquid handling: confirm the liquid sump capacity and drain/level control suit the expected liquid rate, not just the gas flow.
- Code and testing: transmission service usually requires an ASME Section VIII vessel; the manufacturer states its White Oak, Texas shop is ASME Section VIII, Division 1 and National Board certified with in-house non-destructive testing.
Practical next step
Prepare a short data sheet—gas composition, operating pressure and temperature, maximum and normal flow, expected solids and liquid loading, and target outlet mist content—and ask the vendor to propose a filter-separator model and element type against it. If liquid slugs are likely, ask whether a scrubber or separator should precede the filter-separator; the site lists those as separate product lines, which makes a combined train easy to specify from one supplier.
How does a sample cooler work for hot liquid, gas, or steam sampling?
A sample cooler is a heat exchanger that lowers the temperature of a hot process sample to a safe range before it reaches a sample valve, gauge or analyzer. The hot fluid—liquid, gas or steam—flows through a coil or tube bundle while a cooling medium, usually cooling water, circulates on the outside. Heat moves from the sample to the coolant, so the sample leaves cooler without changing its composition or pressure beyond what the cooling itself causes. Winston/Royal Guard lists sample coolers among its equipment for hot liquids, gases and steam, which fits the typical use: drawing a representative sample safely from a hot line.
What it does in practice
- Protects people and instruments. Steam and hot process fluids can burn operators and exceed the temperature limits of sample containers and analyzers; cooling brings the sample into a workable range.
- Preserves sample integrity. A well-designed cooler removes heat quickly and avoids contact with air or contaminants, so the cooled sample still represents the process stream.
- Handles three fluid types differently. Steam condenses to hot water as it cools; hot liquids simply lose sensible heat; gases cool without condensing as long as the outlet stays above the dew point. That last point matters for natural gas sampling, where dropping below the dew point can condense heavy components and distort the sample.
Choosing and using one
Match the cooler to the sample's temperature, pressure, flow rate and cooling-water supply, and confirm the materials suit the process fluid. A common field problem is insufficient cooling water or a fouled coil, which shows up as a sample that is still too hot; regular cleaning and a check on coolant flow prevent that. For steam service, allow for condensate drainage and make sure the outlet runs to a safe, closed collection point rather than an open drain.
As a next step, sketch the sampling point layout—sample probe, cooler, valve, and container or analyzer—and check that each component's temperature and pressure rating covers the hottest, highest-pressure condition the sample can reach. If the stream is natural gas or you also need filtration or separation ahead of the cooler, the same supplier's filter-separators and coalescers are worth reviewing together with the sample cooler.
What ASME Section VIII certification and non-destructive testing capabilities does the White Oak, Texas facility have?
Winston/Royal Guard states that its White Oak, Texas manufacturing facility is certified to ASME Section VIII, Division 1, and holds National Board certification. The page also says the plant's capabilities include all types of non-destructive testing, backed by a rigidly controlled quality control system. These are the company's own claims about the facility; the page does not list specific NDT methods, certificate numbers, authorized inspection agencies or the scope of the National Board stamp.
What this means in practice
For a buyer specifying vessels, scrubbers, separators, strainers or sample coolers for oil and gas, refining, petrochemical or power service, the ASME Section VIII, Division 1 reference signals that the shop is set up to build and stamp pressure vessels under that code section. National Board certification matters mainly if you need vessels registered with the National Board. The broad NDT statement is useful as a starting point, but the method—radiography, ultrasonic, magnetic particle, dye penetrant or hydrostatic testing—should be confirmed for your specific order.
How to verify before ordering
- Ask for the actual ASME certificate and National Board authorization, with the scope and expiry dates.
- Request the written NDT procedures and the qualification of the technicians who would perform them.
- Confirm whether your vessel requires National Board registration and full radiography, and get that in the quotation.
- Ask which third-party inspector will witness testing and review the data book.
A practical next step is to send the intended service conditions and code requirements with your inquiry, then compare the returned quality documentation against them rather than relying on the general capability statement alone.
When should I use a line blind or bleed ring instead of a standard valve for isolation?
Use a line blind when you need visible, verifiable isolation rather than throttling or routine on/off control. A bleed ring is the companion piece: it gives you a port to vent or drain the isolated section so you can confirm it is depressurized before work begins. A standard valve is the better choice when you need flow control, frequent operation, or compact isolation during normal operations.
Winston/Royal Guard lists line blinds and bleed rings alongside its strainers, separators, and sample coolers for oil & gas, refining, petrochemical, power, and pulp & paper service Winston/Royal Guard. That placement reflects their role as positive isolation hardware in process piping, not as general control valves.
When a blind or bleed ring is the right call
- Maintenance and turnaround isolation: You are opening a vessel, exchanger, or line for inspection and need a physical barrier that cannot be opened by accident or drift.
- Lockout/tagout and permit-to-work systems: A blind gives a clear visual state—open or closed—that a valve handle alone may not convey, especially on large or remotely operated valves.
- Hazardous or toxic service: Where leakage past a valve seat is unacceptable, a blind plus a bleed ring lets you vent the cavity and verify zero energy before breaking the line.
- Positive isolation between plant sections: Blinds suit planned, infrequent isolation points; valves suit points that must be operated regularly.
- Draining or venting a spool: A bleed ring installed between flanges provides a dedicated drain, vent, or pressure-gauge connection, useful for hydrotesting and for confirming isolation.
When a standard valve is better
- You need to regulate flow, not just stop it.
- The isolation point is operated often—blinds involve unbolting and can be slow.
- Space or weight is tight, or the line is small and low-hazard.
- You need automated or remote operation.
Practical decision criteria
| Criterion | Line blind / bleed ring | Standard valve |
|---|---|---|
| Isolation certainty | Physical barrier, visually verifiable | Depends on seat integrity |
| Operating frequency | Low; planned outages | High; routine operation |
| Flow control | None | Yes, depending on valve type |
| Speed of changeover | Slow (bolt-up work) | Fast |
| Vent/drain verification | Bleed ring provides it | Requires separate connection |
A common pattern is a valve for day-to-day operation with a blind or bleed ring as the positive isolation point behind it. For a specific line, check the fluid, pressure class, flange standard, and whether the blind must be operated under pressure (a spectacle blind) or only when depressurized (a spade). If your application involves hot liquids, gases, or steam, a sample cooler can also be paired with the isolation point to condition samples safely—Winston/Royal Guard lists sample coolers for exactly that service Winston/Royal Guard.
