Responsive design is a way of building one website so its layout adapts to the screen it's viewed on—phones, tablets, and desktops—rather than maintaining a separate mobile site or shrinking a desktop layout. You make a site responsive by combining three core techniques: fluid grids, flexible images, and CSS media queries, plus a viewport meta tag and relative units. This applies to any site that needs to work across screen sizes; it does not, by itself, guarantee performance, accessibility, or that a design will look identical in every browser.

Responsive design vs. separate mobile sites vs. simple scaling

These three approaches are often confused, but they solve the problem differently:

Responsive design is generally the default choice when you want a single, maintainable site. A separate mobile site can still make sense in narrow cases where mobile content is genuinely different, but it adds overhead that responsive design avoids.

The three core techniques

1. Fluid grids

Instead of fixed pixel widths, columns are sized in relative units so they expand and contract with the viewport. A common pattern is a percentage-based grid where a main column and sidebar share the available width.

.container {
  width: 90%;
  max-width: 1200px;
  margin: 0 auto;
}
.column {
  width: 65%;
  float: left;
}
.sidebar {
  width: 30%;
  float: right;
}

The max-width keeps the layout from stretching uncomfortably on very large screens, while the percentage widths let it shrink on smaller ones.

2. Flexible images

Images should never overflow their container. Setting a maximum width of 100% lets them scale down while preserving aspect ratio:

img {
  max-width: 100%;
  height: auto;
}

For sharper results on high-density screens, consider serving different image sizes with srcset, but the max-width rule is the baseline that prevents overflow.

3. CSS media queries

Media queries apply different styles at different viewport widths. They are the mechanism that turns a fluid layout into a deliberately rearranged one:

/* Base styles: mobile-first */
.column, .sidebar {
  width: 100%;
}

/* Tablet and up */
@media (min-width: 768px) {
  .column { width: 65%; float: left; }
  .sidebar { width: 30%; float: right; }
}

Set the viewport meta tag

Without this tag, mobile browsers assume a desktop-width page and zoom out, which defeats the whole approach. Place it in the <head>:

<meta name="viewport" content="width=device-width, initial-scale=1">

width=device-width tells the browser to match the CSS pixel width to the device's width, and initial-scale=1 sets the starting zoom level. This is the single most common reason a responsive layout looks wrong on a real phone despite working in a resized desktop browser.

Use relative units, not fixed pixels

Relative units let sizes scale with context:

• % — relative to the parent element's width, useful for layout columns.
• em — relative to the current element's font size; compounds when nested.
• rem — relative to the root (html) font size; more predictable than em for spacing and type scales.

html { font-size: 100%; }      /* typically 16px */
h1 { font-size: 2rem; }        /* 32px, scales with root */
p  { margin-bottom: 1.5rem; }

Using rem for typography and spacing makes the whole layout respond when a user changes their browser's default font size—an accessibility benefit that fixed pixels don't provide.

A mobile-first workflow

Mobile-first means writing the base CSS for the smallest screen, then adding complexity at larger widths with min-width media queries. This tends to produce leaner CSS because you add rules only when there's room for them.

1. Start with the single-column layout. Everything stacks; no floats or multi-column grids yet.
2. Add a breakpoint for tablets (commonly around 768px) where a second column becomes viable.
3. Add a breakpoint for desktops (commonly around 1024px or 1200px) for wider grids and larger spacing.
4. Test at each stage before moving up.

Common breakpoint choices cluster around 480px, 768px, 1024px, and 1200px, but these are conventions, not rules. The better practice is to add a breakpoint where the content starts to break, not at a device's exact width.

How to test responsiveness

• Resize the browser window slowly from wide to narrow and watch for layout breaks.
• Use browser developer tools (device toolbar) to simulate common phone and tablet sizes.
• Check for horizontal scrolling—if a horizontal scrollbar appears, something is overflowing.
• Test on a real device when possible; emulators miss touch and font-rendering behavior.
• Zoom the text to 200% to confirm the layout still holds.

Frequent failures

• Fixed widths on containers or images cause overflow and horizontal scrolling.
• Missing viewport meta tag makes mobile browsers render a zoomed-out desktop page.
• Text too small to tap or read because font sizes were set in fixed pixels and never scale.
• Breakpoints tied to specific devices rather than to where the content actually breaks.
• Images without max-width: 100% spilling out of their columns.
• Assuming responsive equals fast—layout adaptation and performance are separate concerns.

If you're working with a web design or development team, these are the specific things worth confirming: that the viewport tag is present, that layout uses relative units, and that breakpoints were chosen around content rather than a device list.

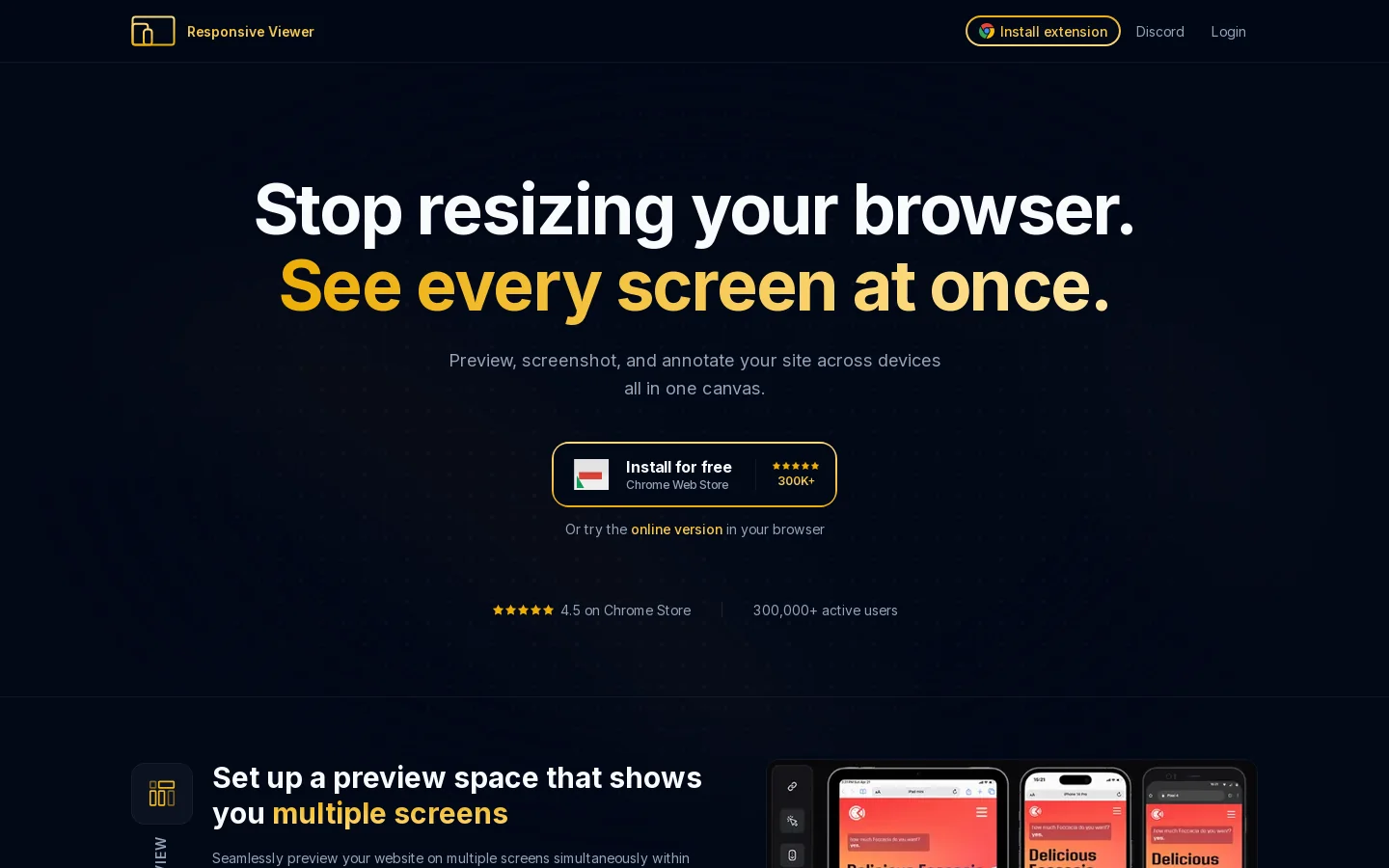

A responsive viewer is a tool that displays your website on several device screens at once, instead of you resizing a single browser window. It fits into responsive testing as the fast, first-pass check: you load your site once and see how the layout behaves across phone, tablet, and desktop widths side by side. Responsive Viewer, the Chrome extension and online tool at responsiveviewer.org, is one example — it advertises multi-screen preview on an infinite canvas, synced scrolling, device mockups, screenshots, and annotations, with a free tier and a paid upgrade. Use a viewer like this to catch breakpoint problems early; still verify touch behavior, performance, and real rendering on actual devices.

What a responsive viewer actually does

The core idea is a shared canvas. Rather than opening five browser windows at five widths, you place several device frames on one workspace and point them all at the same URL. Responsive Viewer describes exactly this: "Seamlessly preview your website on multiple screens simultaneously within an infinite canvas."

Typical capabilities, based on the site's own description:

• Multi-screen preview — several device mockups visible at the same time in one space.
• Synced scrolling and navigation — scroll or navigate one screen and the others follow, so you compare the same section of the page across widths.
• Preset and custom screens — choose from a list of real device mockups, or "Customize screen dimensions to perfectly visualize any screen size." The mockup list is updated periodically.
• Layout options — stack, single-screen, mobile, or a free-form workspace where you drag and drop screens.
• Screenshot and annotation — capture a device screen, then "Add comments and scribble on top of the generated screenshot," and share or download it.

How it fits into responsive testing

Responsive testing is the practice of checking that a site works across the range of screen sizes and input types people actually use. A responsive viewer covers one slice of that: visual layout across widths.

A practical workflow looks like this:

1. Open your site in the viewer and load a set of screens covering your breakpoints — for example a small phone, a large phone, a tablet, and a desktop width.
2. Turn on synced scrolling and move through the page once, watching all screens together. Layout breaks — overlapping text, elements that jump columns, content that overflows — show up immediately because the screens sit next to each other.
3. When you find a problem, take a screenshot of the affected screen, annotate the area, and share it with whoever needs to fix it.
4. Fix, reload, and repeat until the layouts hold.

This is a fast loop for catching breakpoint issues before you move to slower, more thorough checks.

Ways to run one

Responsive Viewer is available in two forms, per the site:

Both are described as free to start ("Install for free," "Start now for free today!"). The site also states the tool "is free forever," with a premium subscription that unlocks all available screens and removes ads.

What the free and paid tiers cover

The site's pricing section lists:

• Free — core preview, screenshot, and annotation features, with ads and a limited set of screens.
• Professional — "Preview your website on all available mockup devices," ad-free, with all device mockups, all available screens, and screenshot annotations. Listed at $4.99 monthly or $3.99 yearly.

If your testing only needs a handful of common screen sizes, the free tier may be enough. If you regularly test against many device mockups or want an ad-free workspace, the paid tier is the relevant option. Check the current pricing on the site before deciding, since listed prices can change.

Limits to keep in mind

A responsive viewer emulates screens; it does not replace real devices. Keep these gaps in mind:

• Emulation is not a real device. Browser emulation approximates viewport size and some device characteristics, but not the actual rendering engine quirks, font rendering, or GPU behavior of a physical phone or tablet.
• Touch and input behavior — hover states, tap targets, gestures, and on-screen keyboards need real-device or dedicated emulator testing.
• Performance — load time, scrolling smoothness, and memory use on a mid-range phone won't show up in a desktop-based preview.
• Real-world conditions — slow networks, orientation changes, and browser chrome (address bars, notches) affect layout in ways a mockup frame may not capture.

Use the viewer for the fast visual pass, then confirm the important flows on actual hardware before shipping.

When a responsive viewer is the right tool

Reach for one when you need to:

• Compare several breakpoints at a glance rather than one at a time.
• Produce annotated screenshots for design review or bug reports.
• Iterate quickly on layout fixes during development.

Skip it — or treat it as only a starting point — when your question is about touch interaction, real-device performance, or how the site behaves on a specific phone model you can hold in your hand.

Web development is the work of building and maintaining websites and web applications — turning a design into functioning pages and features that run in a browser. It covers everything from writing HTML, CSS, and JavaScript on the front end to configuring servers, databases, and content management systems on the back end. If you're deciding whether to learn it, hire for it, or scope a project, the key distinction is this: design decides how a site looks and feels, development makes it work.

Web development vs. web design

The two roles overlap, but they answer different questions.

A designer might hand off a responsive layout; a developer turns it into HTML and CSS that renders correctly across browsers and devices. On small projects one person may do both. On larger ones they're separate roles with a handoff in between.

The front end and the back end

Web development is usually split into two halves.

Front end (client side) — everything the user sees and interacts with in the browser:

• HTML structures content
• CSS controls layout, color, and responsive behavior
• JavaScript adds interactivity, from form validation to full single-page interfaces

Back end (server side) — everything that happens on the server:

• A server-side language (for example PHP, Python, Ruby, or Node.js) handles logic and requests
• A database stores content, users, and other data
• Server configuration and APIs connect the two

A contact form is a simple example: the front end collects and validates the input, then the back end receives it, stores or emails it, and returns a response. When people say "full-stack," they mean someone comfortable on both sides.

Common types of web development work

Not all projects are the same shape, and that affects who you hire.

• Static sites — fixed pages, often hand-coded or generated. Fast and cheap to host; best for simple, rarely changing content.
• CMS builds — sites built on platforms like WordPress or Drupal so non-technical staff can edit content. Bean Creative lists both WordPress and Drupal among its platforms, which is typical for agencies serving education, non-profit, and association clients that need ongoing content control.
• Web applications — interactive tools with logins, data, and business logic, closer to software than a brochure site.
• Mobile and cross-platform work — responsive design, plus native iOS or Android apps when a project needs them. Bean Creative's scope includes app development alongside web, which reflects how often the two are now planned together.

A typical project workflow

Most builds follow a similar arc, whether in-house or with an agency:

1. Planning and discovery — define goals, audience, content, and technical constraints.
2. Design — wireframes and visual design, including responsive breakpoints.
3. Development — build templates and components, integrate the CMS or back end, connect any third-party services.
4. Testing — check across browsers and devices, verify accessibility, fix bugs, and test forms and integrations.
5. Deployment — launch on a hosting environment, then monitor and maintain.

The handoff between design and development is where projects most often stall. Agreeing early on how designs translate to real components — and who owns responsive behavior — prevents most of that friction.

Skills and roles on a team

A project may need some or all of these:

• Front-end developer — HTML, CSS, JavaScript, responsive and accessible markup
• Back-end developer — server languages, databases, APIs, security
• Full-stack developer — both, useful on smaller teams
• CMS specialist — platform setup, theming, and editor experience
• Designer / UI-UX — layout, interaction, and visual systems
• Project manager or producer — scope, timeline, and client communication

For a small marketing site, one capable developer may be enough. For a web application with accounts and data, expect at least a front-end and back-end specialist, plus design.

When you need a developer vs. a designer

• You need a designer when the problem is how something looks, reads, or flows — a new brand, a confusing navigation, a redesign.
• You need a developer when the problem is how something functions — a broken form, a slow site, a CMS that won't do what you need, an integration with another system.
• You need both when you're building something new or substantially changing an existing site.

A useful test: if the fix is a picture or a layout, it's design. If the fix is behavior, data, or infrastructure, it's development.

Common pitfalls

• Treating design and development as the same job. They need different skills, and assuming one person covers both can lead to a polished mockup that never ships well.
• Skipping responsive planning. Mobile behavior should be decided in design, not patched in code later.
• Underestimating maintenance. Sites need updates, security patches, and content changes long after launch.
• Choosing a platform before defining requirements. Picking WordPress or Drupal first, then discovering it doesn't fit, is expensive to undo.

If you're learning: start with HTML, CSS, and JavaScript, build a few small projects end to end, then add a back-end language and a CMS. If you're hiring: match the role to the problem, and confirm the team covers both the front end and whatever runs behind it.

Multi-device preview means loading one website into several device-sized screens at the same time so you can compare layouts side by side instead of resizing a single browser window. It is the right approach when you need to catch breakpoint-specific problems — a nav that collapses too early, a grid that overflows on tablets, text that wraps badly on small phones — and you want to see those states together rather than one after another. Responsive Viewer is a Chrome extension built around this idea: it places multiple screen mockups on an infinite canvas, syncs scrolling and navigation across them, and lets you screenshot and annotate what you find.

How multi-device preview differs from resizing one window

Resizing a single browser window shows you one viewport at a time. You drag the edge, watch the layout reflow, drag again, and try to remember what the previous width looked like. That works for a quick sanity check but breaks down when a bug only appears at one specific width, or when you need to confirm that two breakpoints behave consistently.

One-device emulation (the device toolbar in DevTools, for example) is more precise than dragging, but it still shows a single screen. You switch device presets one at a time.

Multi-device preview changes the unit of work from "one viewport" to "one canvas of viewports." The practical differences:

The value is comparison. When a desktop, tablet, and phone view sit next to each other, inconsistencies that are invisible in isolation — mismatched spacing scales, a heading that jumps size, a CTA that moves position — become obvious.

Setting up a preview workspace

The core workflow in Responsive Viewer, based on the tool's own description, runs like this:

1. Install the extension from the Chrome Web Store, or use the online version in your browser. The extension reports 300,000+ active users and a 4.5 rating on the Chrome Store.
2. Open a preview space — an infinite canvas that holds multiple screens.
3. Add screens using a preset or by defining your own. The tool provides real screen mockups and updates the mockup list periodically to include new and popular devices.
4. Arrange the layout. You can drag and drop screens onto the workspace and choose from several layout options, including stacked, single-screen, mobile, and dynamic arrangements.
5. Sync scrolling and navigation across screens so every viewport stays on the same part of the page as you move through it.

The sync step is what makes the canvas usable rather than just decorative. Without it, you would scroll each screen independently and lose the alignment that makes comparison meaningful.

When to use presets vs. custom screens

Presets cover the common cases and are the faster path. Custom screens matter when your audience or your analytics point to a specific size that no preset matches — a particular tablet in landscape, an embedded webview, a kiosk display. The tool lets you set any screen dimension, so the constraint is your knowledge of which sizes actually matter, not the tool.

A reasonable default set: one small phone, one large phone, one tablet in portrait, one laptop, one wide desktop. Add custom sizes only when you have a reason.

Capturing and sharing what you find

Finding a layout problem is half the job; communicating it is the other half. Responsive Viewer's screenshot and annotation flow works as follows:

• Choose a device screen.
• Click the snapshot button to capture a crystal-clear screenshot of that responsive view.
• Add comments and scribble directly on top of the generated screenshot.
• Share it with someone or download it to your computer.

This matters for handoffs. A written bug report ("the nav overlaps the logo on tablet") is ambiguous; an annotated screenshot of the exact viewport pins down the problem in one glance. It also creates a record you can compare against after a fix.

Common pitfalls

Testing only the popular sizes. Phone, tablet, desktop covers most traffic but not the awkward in-between widths where breakpoints actually break. If your CSS has a breakpoint at 768px, test just above and just below it, not only at 375px and 1440px.

Trusting stale mockups. Device dimensions change with new hardware. The tool updates its mockup list periodically, but if you are testing against a specific target device, verify the dimensions rather than assuming a preset is current.

Forgetting that mockups are not real devices. A screen mockup reproduces viewport dimensions and layout behavior. It does not reproduce touch input, real font rendering differences across operating systems, or device-specific browser quirks. Use multi-device preview to catch layout and breakpoint issues; use real devices or a device cloud for input, performance, and rendering verification.

Skipping sync. If you scroll screens independently, you will compare different parts of the page and draw wrong conclusions. Keep scrolling and navigation synced unless you have a specific reason to decouple them.

Not saving the evidence. Annotations that live only in a session are lost. Download or share the annotated screenshot as part of your testing record.

What it costs

Responsive Viewer describes itself as free forever, with an optional premium subscription that removes ads and unlocks all available screens and device mockups plus screenshot annotations. The listed pricing is $4.99 monthly or $3.99 yearly. If you only need a few standard screens and can tolerate ads, the free tier covers the core multi-device preview workflow; the paid tier is aimed at people who want the full mockup library and an ad-free workspace.

A Chrome screenshot beautifier extension turns a plain browser screenshot into a polished, share-ready mockup without leaving the browser. Screenshot Beautifier Pro is one example: it captures a tab, region, uploaded file, or clipboard image, then applies gradients, shadows, 3D tilt, padding, and an optional watermark before exporting a 2× PNG. It fits when you need a clean visual fast for a social post, product page, or presentation, and you don't want to open Figma or another design app. If you need layered editing, custom typography, or multi-element compositions, a full design tool is still the better fit.

What a screenshot beautifier extension actually does

A raw screenshot is just pixels of your screen — usually with a flat white background and hard edges. A beautifier wraps that image in a styled frame so it reads as a deliberate visual rather than a screen grab.

The core job is three steps, as the site describes it: Capture, Edit, Export.

• Capture — get the screenshot into the tool.
• Edit — apply background, shadow, tilt, and spacing.
• Export — download a finished image at a usable resolution.

The problem it solves is speed and consistency. Instead of building a frame manually in a design app, you pick a preset, adjust a few sliders, and export. The trade-off is control: you get curated gradients and preset shadow styles, not a blank canvas.

The capture-edit-export workflow

Step 1: Get your screenshot in

Screenshot Beautifier Pro supports four input methods, so it works with screenshots you already have:

Expected result: your image appears in the editor, ready to style. If nothing shows up after pasting, the clipboard likely holds text or a file path rather than image data — copy the image itself and retry.

Step 2: Style it

This is where the "beautify" happens. The extension exposes controls that the site says normally live in expensive design software:

• Gradient library — dozens of curated gradients plus solid colors, with a one-click shuffle for new combinations.
• Shadows — three styles with adjustable blur, spread, and opacity, so the screenshot appears to float above the background.
• 3D tilt and padding — a subtle perspective tilt for depth, plus padding sliders to control whitespace precisely.
• Branding watermark — add your name or brand as a footer watermark and toggle it on or off.

Practical tip: start with a gradient and a soft shadow, then add tilt only if the image will sit on a page with room around it. Heavy tilt plus tight padding tends to look cramped.

Step 3: Export

Hit Export and you get a 2× PNG. The site lists these output sizes: 1:1, 16:9, 9:16, 4:5, or auto-fit — aimed at Twitter, LinkedIn, or product pages.

Choosing a ratio:

• 16:9 — landing pages, blog headers, wide social cards.
• 1:1 — feed posts and profile-adjacent placements.
• 9:16 — stories and vertical formats.
• 4:5 — portrait feed posts.
• Auto-fit — when the image's own proportions matter more than a fixed frame.

When a browser extension is enough vs. when it isn't

Use the extension when:

• You need a clean mockup in under a minute.
• The screenshot is the whole visual — no extra text, arrows, or callouts.
• You want consistent styling across a series of screenshots.
• You're already in Chrome and don't want to switch apps.

Reach for a full design tool when:

• You need to annotate, add arrows, or combine multiple screenshots.
• You want custom fonts, brand-specific layouts, or pixel-exact control.
• You're building a reusable template with layers.

The extension's own positioning is "No Figma needed" — accurate for single-image framing, less so for anything that requires composition.

What users report

The site features reviews from developers, designers, and makers. One reviewer (Roko Bojanic) notes it's "simple to use, saves time, and works well for product screenshots, landing page visuals, and social posts," and mentions the creator is open to feedback. Another (Allwin Jeba) says a professional-looking, share-ready screenshot took "just a few clicks." These point to the same pattern: the value is speed and a low learning curve, not deep editing power.

Getting started

The extension is added from the Chrome Web Store ("Add to Chrome — It's Free" on the site). Once installed, the workflow is: capture or load an image, pick a background and shadow, adjust tilt and padding, optionally add a watermark, then export. The site does not publish pricing details beyond the free add-to-Chrome prompt, so check the store listing for any current plan or usage limits before relying on it for regular work.
