SVG Path Visualizer is a client-side web app: the page you load is essentially an empty shell, and all the rendering, parsing, and command discovery happens in your browser through JavaScript. If JavaScript is disabled or blocked, the app never starts, so you see only the fallback message "You need to enable JavaScript to run this app" instead of the input box and examples. Enabling JavaScript and reloading the page is the fix; if the page loads but your path still doesn't draw, the problem is usually the path data itself rather than the tool.

What the page actually ships

The site's own text makes the dependency explicit: the only content shown without JavaScript is the notice that JavaScript must be enabled. Everything else — the heading "SVG Path Visualizer 📐", the instruction to "Enter an SVG path data (the string inside the d attribute) to visualize it and discover all its different commands", and the example list — is rendered by the app at runtime.

That means there is no server-side fallback and no static preview. The tool has nothing to show until its scripts execute.

How to get the app running

1. Check whether JavaScript is off. In most browsers, a site-level block appears as an icon in the address bar; a global block lives in the browser's site settings or content settings.
2. Allow JavaScript for svg-path-visualizer.netlify.app (or turn it back on globally).
3. Reload the page. You should now see the input field, the instruction line, and the example buttons.
4. Paste your path data — the string that normally sits inside the d attribute of an <svg><path> element — into the input.
5. Read the visualization and the command breakdown the app produces.

Expected result: the path draws on screen and its individual commands are listed. If step 3 still fails, an extension such as a script blocker may be overriding the browser setting for this domain.

When JavaScript is on but nothing renders

A valid script environment doesn't guarantee a valid drawing. The app visualizes path data, so the input has to be a well-formed d string.

Common causes of a blank or broken result:

• Truncated paste. Copying only part of a long path — a frequent problem with exported icons — leaves commands without their coordinates.
• Missing or misplaced command letters. Path data alternates commands (M, L, C, Q, A, Z, and so on) with numeric arguments; a stray character breaks parsing from that point on.
• Unsupported or malformed characters. Smart quotes, stray commas in the wrong place, or text copied from a formatted document can all invalidate the string.
• Whitespace issues. Extra spaces are generally tolerated, but a missing separator between two numbers can merge them into one value.

A quick sanity check: start from one of the built-in examples (Line, Triangle, Quad Curve, ZigZag, Arc, Smooth, Heart, Banana) to confirm the app itself works, then replace it with your own data.

Deciding whether this tool fits your task

The tool is a visualizer and command explorer, not an editor that repairs broken input, so it will not guess what a malformed path was meant to be. If your goal is simply to see whether a path is valid, pasting it and checking whether it draws is the fastest test.

SVG Path Visualizer is a browser-based tool that renders the string inside an SVG d attribute as a visible shape and breaks that string down into its individual path commands. You paste path data in, and it shows you both the resulting graphic and the commands that produced it. It is useful when you are debugging a path you did not write, learning how commands like curves and arcs behave, or checking a path copied from a design tool before using it in production.

What it does

The tool takes one input: the path data string, which is the value you would normally place inside the d attribute of an <svg> element. From that input it produces two things:

• A rendered visualization of the path, so you can see the actual shape the data describes.
• A command breakdown, so you can see which commands the path uses and how they are structured.

That combination is the point. A renderer alone tells you the shape is wrong; a command list alone tells you what is written but not what it looks like. Seeing both side by side is what makes path data easier to reason about.

How to use it

1. Open the site in a browser. The page states that JavaScript must be enabled to run the app, so a browser with JS active is the only prerequisite.
2. Paste your path data — the string from inside the d attribute — into the input.
3. Read the output: the rendered shape and the list of commands the path contains.

There is nothing to install and no build step. Because it runs in the browser, it works the same on any machine with a modern browser and JavaScript turned on.

If you do not have a path handy, the page offers built-in examples you can load instead: Line, Triangle, Quad Curve, ZigZag, Arc, Smooth, Heart, and Banana. Loading one of these is the fastest way to see how the tool behaves before pasting your own data.

When it is worth using

Reach for this tool when:

• A path renders incorrectly and you need to see where the shape diverges from what you expected.
• You are learning SVG path syntax and want to connect each command to a visible result — starting from the provided examples is easier than starting from a real-world path.
• You received path data from elsewhere (an export, a handoff, a snippet) and want to confirm what it actually draws before committing it to a file.
• You want to identify which commands a path uses, for example to check whether it relies on arcs or smooth curves.

It is a inspection and learning tool, not an editor. It visualizes and explains the path you give it; it does not generate paths from a drawing or convert between formats.

A practical example

Suppose you paste a path that is supposed to be a simple triangle but renders as a distorted shape. The visualization shows the distortion immediately, and the command list lets you compare the commands actually present against what a triangle needs — typically a move command followed by line commands and a close. The mismatch between the two views is usually enough to locate the faulty coordinate or command.

The same workflow applies to the built-in examples: load Triangle, note which commands appear, then load Arc or Smooth and see how the command set changes. That contrast is a quick way to build intuition for how different commands produce different geometry.

SVG Path Visualizer ships with eight built-in example paths you can load with one click: Line, Triangle, Quad Curve, ZigZag, Arc, Smooth, Heart, and Banana. They exist so you can see a working d string rendered immediately, then inspect which commands produce which shapes — useful when you're learning path syntax or debugging a path of your own.

How to load an example

1. Open the site. It requires JavaScript to run, so a blank page means scripts are blocked or still loading.
2. Find the example list below the input area (the page labels it "Or explore some examples").
3. Click any example name.
4. The tool fills the input with that path's d data and draws the result, so you can compare the string against the rendered shape.

The eight examples and what each one shows

Why start from an example instead of your own path

Loading an example gives you a known-correct baseline. You can:

• Read the commands in order and match each one to a visible part of the shape.
• Edit one number at a time and watch the render change, which isolates what that value controls.
• Copy the structure — for instance, take the Heart example and swap coordinates to build your own closed curved shape.

This is faster than writing a path from scratch, because a broken path often renders as nothing at all, leaving you with no feedback.

Practical notes

• The examples are fixed presets, not a gallery you can add to; to test your own path, paste the string from a d attribute into the input field.
• The page doesn't state any pricing or login requirement in the material available, so treat access details as unconfirmed rather than assuming it's free or account-free.
• If an example renders but your own path doesn't, compare command letters and separators first — a missing space or an unsupported command is the usual cause.

SVG Path Visualizer reads the path data you paste into it — the string that normally sits inside an SVG's d attribute — and breaks that string into its individual commands so you can see what each one does. It recognizes the standard SVG path command set, so any command present in your d string is available for inspection. The tool's own description frames this as its core purpose: "Enter an SVG path data (the string inside the d attribute) to visualize it and discover all its different commands."

The command set the tool surfaces

SVG path data is written as a sequence of single-letter commands, each followed by numeric coordinates. The visualizer groups and labels these commands as it parses your string. They fall into two families.

Line and move commands

These build straight edges and reposition the drawing point without drawing anything:

Uppercase letters use absolute coordinates; lowercase letters use coordinates relative to the current point. Seeing both forms side by side in the parsed output is one of the quickest ways to understand that distinction.

Curve and arc commands

These produce anything that isn't a straight line:

The arc command is the one most people find hardest to read, because its parameters — two radii, an x-axis rotation, a large-arc flag, a sweep flag, and an end point — don't map obviously onto the shape you see. The visualizer's built-in examples include an "Arc" sample precisely because that command benefits most from being seen rather than read.

How the visualization connects commands to shapes

The value of the tool isn't the list of letters — it's that the list is shown next to the rendered path. When you paste a d string, you get both the drawing and the command breakdown, so you can match a specific command in the text to the segment of the curve or line it produced.

The bundled examples make this concrete. Loading "Line" or "Triangle" shows how M, L, and Z combine into closed straight-edged shapes. Loading "Quad Curve" or "Smooth" shows how Q and T differ from their cubic counterparts. Loading "Heart" or "Banana" shows several command types working together in one path, which is closer to what real-world icon and illustration paths look like.

A practical way to use it

1. Copy the d attribute value from an SVG you're working with, or start from one of the examples.
2. Paste it into the input field.
3. Read the rendered shape alongside the command list.
4. To test a single command's effect, edit one command or one set of coordinates in the string and watch how the shape changes.

That last step is where the tool earns its keep: changing a control point in a C command and seeing the curve bend differently teaches the command faster than any written description.

What to keep in mind

The tool requires JavaScript to run, so it won't function with scripting disabled. It works on path data only — it doesn't parse full SVG files, styles, or transforms, so you need to extract the d string yourself before pasting. And because it's a visualizer rather than an editor, it won't validate your path against a spec or fix malformed data for you; it shows you what the commands you wrote actually draw.

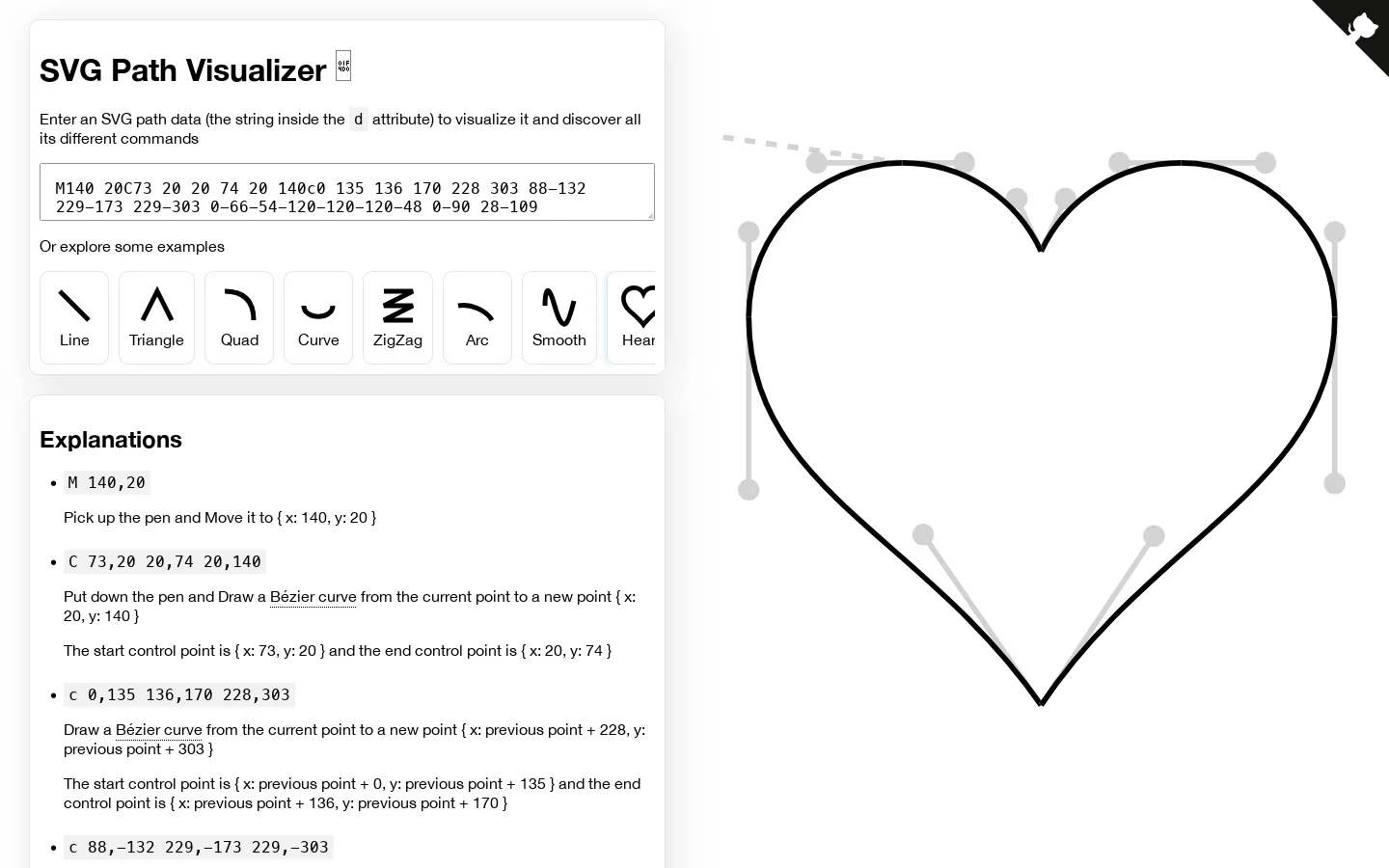

Open svg-path-visualizer.netlify.app in a browser with JavaScript enabled, paste the string from an SVG path's d attribute into the input area, and the tool renders the shape while breaking the path down into its individual commands. This works for any valid SVG path data string, whether you copied it from an icon file, a design export, or wrote it by hand.

What the tool does

The site's own description states its purpose directly: "Enter an SVG path data (the string inside the d attribute) to visualize it and discover all its different commands." So there are two outputs for every input — a visual rendering and a command-by-command breakdown.

Step 1: Get the path string from your SVG

An SVG path lives inside a <path> element, and the geometry is stored in the d attribute. You want only the value of d, not the surrounding tags.

For example, given this markup:

<path d="M10 10 L90 10 L50 90 Z" fill="none" stroke="black"/>

the string you need is:

M10 10 L90 10 L50 90 Z

If you are working from an .svg file, open it in a text editor and copy everything between the quotes after d=. If the path is inside a design tool export, the same rule applies — the d value is what the visualizer consumes.

Step 2: Paste it into the input area

Paste the string into the input field on the page. The visualization updates to show the rendered path, and the tool lists the commands it found in the string. Each command letter (M, L, C, Q, A, Z, and their relative lowercase forms) is identified so you can see how the path is constructed segment by segment.

Expected result: you see the shape drawn, plus a readable sequence of the commands that produced it.

Step 3: Start from an example if you are new

The page offers a set of built-in examples: Line, Triangle, Quad Curve, ZigZag, Arc, Smooth, Heart, Banana. Loading one of these fills the input with a known-good path so you can watch how the rendering and command list respond before trying your own data. This is the fastest way to confirm the tool is working and to see what a well-formed path looks like.

Common snags

• Nothing renders. The most common cause is pasting the whole <path ...> element instead of just the d value. Strip the tags and attributes.
• JavaScript is disabled. The page shows "You need to enable JavaScript to run this app." The visualizer is a client-side app, so it will not run without JavaScript.
• Malformed path data. A missing command letter, an unclosed subpath, or a stray character can break rendering. Compare against one of the examples to spot structural differences.
• Whitespace and commas. SVG path syntax tolerates spaces and commas as separators, but mixing them inconsistently with numbers can still confuse a parser. Keeping the string as exported is usually safest.

When this tool is the right choice

Use it when you need to read or debug an existing path — checking whether a curve bends the way you expect, confirming where a subpath closes, or figuring out which command draws which segment. It is a viewer and explainer, not an editor: it does not modify your path or export new geometry. For authoring paths from scratch, you would pair it with a vector editor and use the visualizer to verify the exported d string.
