The Mandelbrot set is the collection of points c in the complex plane for which the iteration z → z² + c, starting from z = 0, stays bounded forever. You explore it in an interactive visualizer by zooming into its boundary, panning along the edge, and raising the iteration limit so fine detail keeps resolving. The set itself is a fixed mathematical object; what changes on screen is how much computation and color mapping you apply to it.

The definition, precisely

Pick a complex number c. Start with z₀ = 0 and repeatedly apply:

zₙ₊₁ = zₙ² + c

• If the sequence of zₙ values stays within a finite region (in practice, never escapes a circle of radius 2), then c belongs to the Mandelbrot set.
• If the values run off to infinity, c is outside the set.

The radius-2 escape test is the standard shortcut: once |z| exceeds 2, the orbit is guaranteed to diverge, so you can stop early. That early exit is what makes real-time rendering feasible.

What you actually see

The classic picture is not the set drawn as a solid blob but a map of how fast each outside point escapes.

• Interior (black by convention): points that never escape. This region is connected.
• Boundary: the most intricate part. Zooming here reveals bulbs, filaments, and miniature copies of the whole set.
• Exterior: colored by escape time. Points that flee quickly get one color band; points that linger near the boundary get more bands.

Bulbs and self-similarity

The main cardioid is the large central body. Attached to it are circular bulbs, each associated with a period of the orbit. Smaller bulbs sit on the edges of larger ones, and the pattern repeats at every scale. Deep zooms into the boundary show near-copies of the entire set — this self-similarity is why the Mandelbrot set is a fractal.

How to navigate a visualizer

Interactive viewers such as Synaptic Spiral render the set in the browser and let you move around it. The general workflow:

1. Start at a default view. You should see the main cardioid and the surrounding escape-time coloring.
2. Zoom toward the boundary. The interesting structure lives at the edge between inside and outside, not in the flat interior.
3. Pan to follow filaments. Drag or use directional controls to trace the thin structures connecting bulbs.
4. Raise the iteration count as you zoom. This is the key step — see below.
5. Adjust color mapping to make bands or gradients visible.

Why iteration count matters when zooming

Each pixel is tested by iterating until it escapes or hits a maximum iteration limit. Near the boundary, orbits can take many steps to escape. If the limit is too low, those points get misclassified as "inside" and fine detail collapses into flat color.

• Low max iterations: fast rendering, but detail is lost at depth.
• High max iterations: sharper boundary and richer color bands, at the cost of speed.

When a zoom looks blurry or blocky, increasing the iteration limit is usually the fix.

How color mapping changes the picture

The set membership is binary, but the display is not. Color is assigned by escape time, and the palette and banding method determine whether you see smooth gradients or sharp contour rings. Two viewers can show the same region looking completely different purely because of color choices. This affects appearance, not the underlying set.

Mandelbrot vs. Julia sets

They come from the same iteration and are closely linked:

The connection: for each point c, there is a corresponding Julia set. Points inside the Mandelbrot set give connected Julia sets; points outside give disconnected ones. That is why exploring the Mandelbrot set is also a way of surveying the family of Julia sets — a visualizer that offers both lets you jump from a c value to its Julia counterpart.

Practical tips

• Zoom on the boundary, not the center — the interior is uniform.
• Increase iterations with depth; expect slower frames as you go deeper.
• Try different color palettes to reveal banding that a single palette hides.
• Compare with a Julia view at the same c to see the relationship directly.

The Mandelbrot set is one fixed rule — bounded orbits of z² + c — and everything you see is a rendering choice layered on top of it.

A Julia set is the boundary between points that stay bounded and points that escape to infinity when you repeatedly apply the map z → z² + c, where c is a fixed complex number. You explore one by picking a value of c, iterating every pixel's starting z, coloring each pixel by how many iterations it survives before escaping, and then zooming into the boundary. The shape depends entirely on c: some values give a single connected blob, others shatter into disconnected "Fatou dust." Interactive visualizers such as Synaptic Spiral, which lists Julia, Mandelbrot, Newton, Burning Ship, and Phoenix fractals among its modes, let you change c and zoom in real time, which is the fastest way to build intuition.

The rule behind every Julia set

For a fixed parameter c, take a starting point z₀ in the complex plane and iterate:

z₁ = z₀² + c
z₂ = z₁² + c
z₃ = z₂² + c
...

Two things can happen. Either the sequence stays within a bounded region forever, or it grows without limit and escapes. The filled Julia set is the collection of starting points that never escape; the Julia set proper is its boundary—the fragile edge where nearby points behave in opposite ways. That boundary is where all the visual complexity lives, because it is self-similar at every scale.

In practice, a renderer can't iterate forever. It caps the loop at some maximum count and treats "still bounded after N iterations" as "inside." The escape count for each pixel becomes its color, which is why you see smooth bands or glowing contours: each band is a contour of equal iteration count.

How changing c morphs the shape

The parameter c is the single control that determines the entire geometry:

• c = 0 gives a perfect circle—the simplest possible Julia set.
• Small |c| values give rounded, connected shapes with gentle lobes.
• Values near the boundary of the Mandelbrot set produce intricate, branching, dendrite-like forms.
• Values outside that boundary give disconnected dust—infinitely many isolated points, the Fatou dust case.

This is the key relationship: the Mandelbrot set is a map of which c values produce connected Julia sets. A point inside the Mandelbrot set corresponds to a connected Julia set; a point outside corresponds to disconnected dust. So the two fractals aren't rivals—the Mandelbrot set is the parameter catalog, and each Julia set is one page from it.

Exploring one in practice

A workable routine, whether in a browser visualizer or your own code:

1. Choose c. Start with a well-known value such as c = −0.8 + 0.156i (a connected, ornate shape) or c = −0.4 + 0.6i. Then nudge c slightly and watch the form shift—small changes near the Mandelbrot boundary cause dramatic restructuring.
2. Set an iteration cap. A few hundred iterations is enough for a first look; raise it as you zoom so distant regions don't flatten into a single color.
3. Zoom toward the boundary. The interior and the far exterior are both boring; the interesting structure is always at the edge between bounded and escaping points.
4. Read the colors as iteration counts. Tight color bands mean the escape count is changing fast—you're near fine structure. Wide, flat regions mean you're deep inside or far outside.
5. Compare with the Mandelbrot view. Switch modes and locate your c on the Mandelbrot set to see why your Julia set looks the way it does.

Expected result: as you zoom, new lobes and filaments keep appearing rather than resolving into smooth curves—that endless detail is the self-similarity, not a rendering trick.

Common pitfalls

• Precision limits at deep zoom. Standard floating-point numbers run out of significant digits after roughly 10¹³–10¹⁵× magnification, and the image turns blocky or noisy. That graininess is a numerical limit, not hidden structure. Deeper zooms need higher-precision arithmetic.
• Mistaking artifacts for structure. Banding from a low iteration cap, aliasing at the edges, and color-map steps can all look like features. If a pattern vanishes when you raise the iteration count or change the color map, it was an artifact.
• Confusing the two sets. A common error is treating a Julia set as "the Mandelbrot set zoomed in." They answer different questions: one fixes c and varies the starting point; the other varies c itself.
• Too few iterations at high zoom. Points near the boundary may need thousands of iterations to escape, so a low cap paints them as "inside" and erases real detail.

Where to try it

Synaptic Spiral (synapticspiral.nz) is a browser-based interactive fractal visualizer that includes Julia sets alongside Mandelbrot, Newton, Burning Ship, and Phoenix fractals, with real-time animation. It's a reasonable starting point for experimenting with c and zooming without writing code. For deeper zooms or custom color maps, a small script implementing the iteration above gives you full control over the iteration cap and precision.

A Newton fractal is the picture you get when you color every point in the complex plane by which root Newton's method converges to from that starting point. Apply Newton's method to a polynomial with several complex roots, and the plane splits into "basins of attraction" — regions that drain into one root or another. The borders between those basins are not smooth curves but infinitely detailed fractal filigree. You can explore one interactively in a browser-based visualizer such as Synaptic Spiral, which lists Newton fractals alongside Julia, Mandelbrot, Burning Ship, and Phoenix views.

How Newton's Method Produces the Fractal

Newton's method finds roots of a function by iterating:

[ z_{n+1} = z_n - \frac{f(z_n)}{f'(z_n)} ]

For a complex polynomial (f), pick a starting point (z_0), apply the formula repeatedly, and the sequence usually settles on one of the polynomial's roots. The rule is deterministic: the same starting point always ends at the same root.

A Newton fractal is made by running that process for every pixel:

1. Choose a polynomial with known roots, for example (f(z) = z^3 - 1), whose roots are the three cube roots of unity.
2. Treat each pixel as a starting guess (z_0) in the complex plane.
3. Iterate Newton's formula a fixed number of times or until the change is tiny.
4. Color the pixel by which root it converged to, often shading by how many iterations it took.

The result for (z^3 - 1) is three colored regions meeting along boundaries that curl into spirals and lobes at every scale. Zooming in never smooths those boundaries out — that self-similar intricacy is the fractal.

Why the Boundaries Are Fractal

Near a root, Newton's method converges quickly and predictably, so the interior of each basin is calm and solidly colored. Near the boundary between two basins, a starting point can be nudged to land on either side, and the iterates can wander before settling. Points arbitrarily close together can end at different roots, and the boundary between basins turns out to have structure at every magnification. That sensitivity to the starting guess is the mechanism behind the image.

What Changes the Picture

Exploring a Newton Fractal Interactively

A real-time visualizer lets you change the inputs and watch the image respond, which is the fastest way to build intuition. In a tool like Synaptic Spiral, the general workflow is:

1. Open the Newton fractal view and start with a standard polynomial such as (z^3 - 1) so the three-basin structure is easy to read.
2. Zoom into a boundary between two colored regions. Expect spirals, chains of lobes, and miniature copies of the overall pattern — the detail should keep appearing rather than blur.
3. Pan along the boundary to see how the basins interlock; note that the border is where iteration counts are highest.
4. Change the polynomial or its parameters and observe how the number and arrangement of basins change.
5. Adjust iteration depth and compare: shallow settings give clean blocks of color, deep settings expose the fine filaments near boundaries.
6. Switch to the Julia or Mandelbrot view with the same region in mind to compare how each fractal family organizes the plane.

What to Look For

• Solid interiors, busy borders. Calm color means fast convergence; dense, speckled areas mean the starting point sits near a basin boundary.
• Symmetry tied to the roots. For (z^3-1), the three basins are arranged with three-fold rotational symmetry; a degree-(n) polynomial tends to show (n)-fold structure.
• Detail that survives zooming. If the boundary looks smooth after magnification, you are likely under-iterating or looking at a basin interior.

Common Confusions

• Newton vs. Mandelbrot. The Mandelbrot set iterates (z^2 + c) and colors by whether the orbit escapes; a Newton fractal iterates Newton's root-finding formula and colors by which root is reached. They are different dynamical systems, even though both produce fractal boundaries.
• Newton vs. Julia. A Julia set fixes a parameter (c) and studies iteration of (z^2 + c) over starting points; a Newton fractal fixes a polynomial and studies Newton's iteration over starting points. The visual language is similar, but the map being iterated is not.
• "The fractal is the polynomial." The polynomial is the input; the fractal is the basin-of-attraction picture that results. Change the polynomial and you get a different fractal.

If you want a hands-on comparison, open the Newton view next to the Julia and Mandelbrot views in the same visualizer and zoom into equivalent regions — the differences in how each map organizes the plane become obvious quickly.

A fractal visualizer is a program that computes and displays fractal images—most commonly the Mandelbrot, Julia, and Newton sets, along with variants like Burning Ship and Phoenix—and an interactive one lets you change the view and parameters while it renders, rather than waiting for a fixed picture. Synaptic Spiral (synapticspiral.nz) is one example: a browser-based visualizer that presents itself as psychedelic mathematical art with real-time animation across those fractal families. Use this guide to understand what these tools do, how the interactive part works, and what to check before choosing one.

What a fractal visualizer actually computes

A fractal image is not drawn line by line. For each pixel, the software runs a formula repeatedly and colors the pixel based on what happens to the result.

• Mandelbrot set: each pixel is treated as a starting value c in the iteration z → z² + c, beginning at z = 0. Pixels whose values stay bounded are colored as "inside"; the rest are colored by how quickly they escape.
• Julia set: the same iteration, but c is fixed for the whole image and each pixel supplies the starting z. Changing c produces a completely different shape, which is why Julia sets pair naturally with interactive parameter controls.
• Newton fractal: applies Newton's method for finding roots of a polynomial to each pixel and colors by which root it converges to. The result is a map of basins of attraction with intricate boundaries.
• Burning Ship and Phoenix: variations on the escape-time idea with modified formulas, producing distinct textures—ship-like structures and flame-like filaments respectively.

The practical consequence: every pixel costs many arithmetic steps, and zooming in usually increases the iteration count needed for detail. That cost is the main thing separating a smooth visualizer from a sluggish one.

How interactive viewing works in practice

An interactive viewer recomputes the image as you change something. The typical controls and what they do:

In a WebGL-based viewer, the per-pixel computation runs on the GPU, which is what makes real-time zooming and animation feasible in a browser tab. The trade-off is that very deep zooms can exceed the precision the GPU path supports, so some viewers cap zoom depth or switch methods.

Static images vs. interactive WebGL exploration

A static fractal image is a finished render: someone chose the region, parameters, and colors, and you see the result. An interactive visualizer hands those choices to you. The difference matters because fractal structure is self-similar and effectively infinite—the interesting discoveries are usually found by moving around, not by looking at one picture. Interactive tools also let you test a hypothesis immediately: change the Julia constant slightly and watch how the shape deforms.

The catch is that interactivity depends on rendering speed. If each change takes seconds, the tool behaves like a slow static renderer with extra steps.

What to check before choosing a visualizer

• Fractal variety: does it cover the families you care about (Mandelbrot, Julia, Newton, Burning Ship, Phoenix), or only one?
• Control granularity: can you set exact coordinates and parameters, or only drag and zoom? Exact input matters if you want to reproduce a view.
• Rendering speed and zoom limits: test a deep zoom early; note whether detail holds or degrades.
• Animation support: real-time parameter animation is the fastest way to explore Julia sets and is a good proxy for overall performance.
• Platform: a browser-based WebGL tool needs no install but depends on your GPU and browser; a desktop tool may go deeper but requires setup.

Synaptic Spiral fits the browser-based, animation-oriented category: its stated scope is interactive Julia, Mandelbrot, and Newton fractals with real-time animation, presented as mathematical art. Treat that as one data point on variety and interactivity—verify zoom depth, exact-coordinate entry, and performance in your own browser before relying on it for a specific task, such as generating a deep-zoom image or studying basin boundaries.

A quick way to evaluate any visualizer

Pick one concrete task—for example, "zoom into a filament of the Mandelbrot set and animate a nearby Julia parameter." Then check, in order: whether you can enter or capture the starting coordinates, whether the zoom stays sharp as you go deeper, whether the parameter animation runs without stutter, and whether you can return to a previous view. A tool that passes all four is interactive in a meaningful sense; one that fails the zoom or animation step is better treated as a static renderer with a preview.

Synaptic Spiral is a browser-based interactive fractal visualizer that renders mathematical art in real time using WebGL. It lets you explore Julia, Mandelbrot, Newton, Burning Ship, and Phoenix fractals without installing software — you open the page and start adjusting the view. It suits anyone curious about fractal geometry or psychedelic generative art who wants direct, hands-on exploration rather than pre-rendered images.

What the Tool Is (and Isn't)

Synaptic Spiral is described as a "psychedelic fractal visualizer" and "mathematical art generator" built around real-time animation. Two practical implications follow:

• It runs in the browser. Rendering is handled by WebGL, so a modern browser with hardware acceleration enabled is the main requirement. There is no desktop app to download.
• It is exploratory, not a gallery. The value comes from changing parameters and watching the fractal respond, not from browsing a fixed set of finished artworks.

The site does not publish pricing or account details, so treat access terms as unconfirmed until you see them on the page itself.

The Five Fractal Types You Can Explore

Each fractal family responds differently to input, which shapes what you'll want to adjust:

How Interaction and Animation Change the Result

The visualizer combines two levers: your direct input (panning, zooming, adjusting parameters) and real-time animation (the fractal evolving on its own). In practice:

1. Your input changes where you are in the fractal's mathematical space.
2. Animation changes when — the same region can look different moments later, especially for Phoenix and other animated types.
3. Small parameter changes near boundaries tend to produce the largest visual shifts; interior regions often look flatter.

A useful example: if a Julia view looks static and dull, the constant is likely in a low-detail region — shifting it slightly usually reveals more structure than zooming deeper.

Getting Started: A First Session

1. Open the site at synapticspiral.nz in a current browser (Chrome, Firefox, Edge, or Safari).
2. Confirm rendering works. You should see an animated fractal rather than a blank canvas or a "debug information" panel.
3. Pick a fractal type from the available options — start with Mandelbrot if you're new, since its structure is easiest to recognize.
4. Zoom and pan toward edges and boundaries; this is where detail appears.
5. Adjust parameters one at a time and note the effect, so you can tell which control caused which change.
6. Switch to Julia or Phoenix and repeat, comparing how much the animation itself alters the image.

Verification: you've succeeded when the image updates smoothly as you interact and the fractal shows fine detail at the edges rather than uniform color.

Common Snags

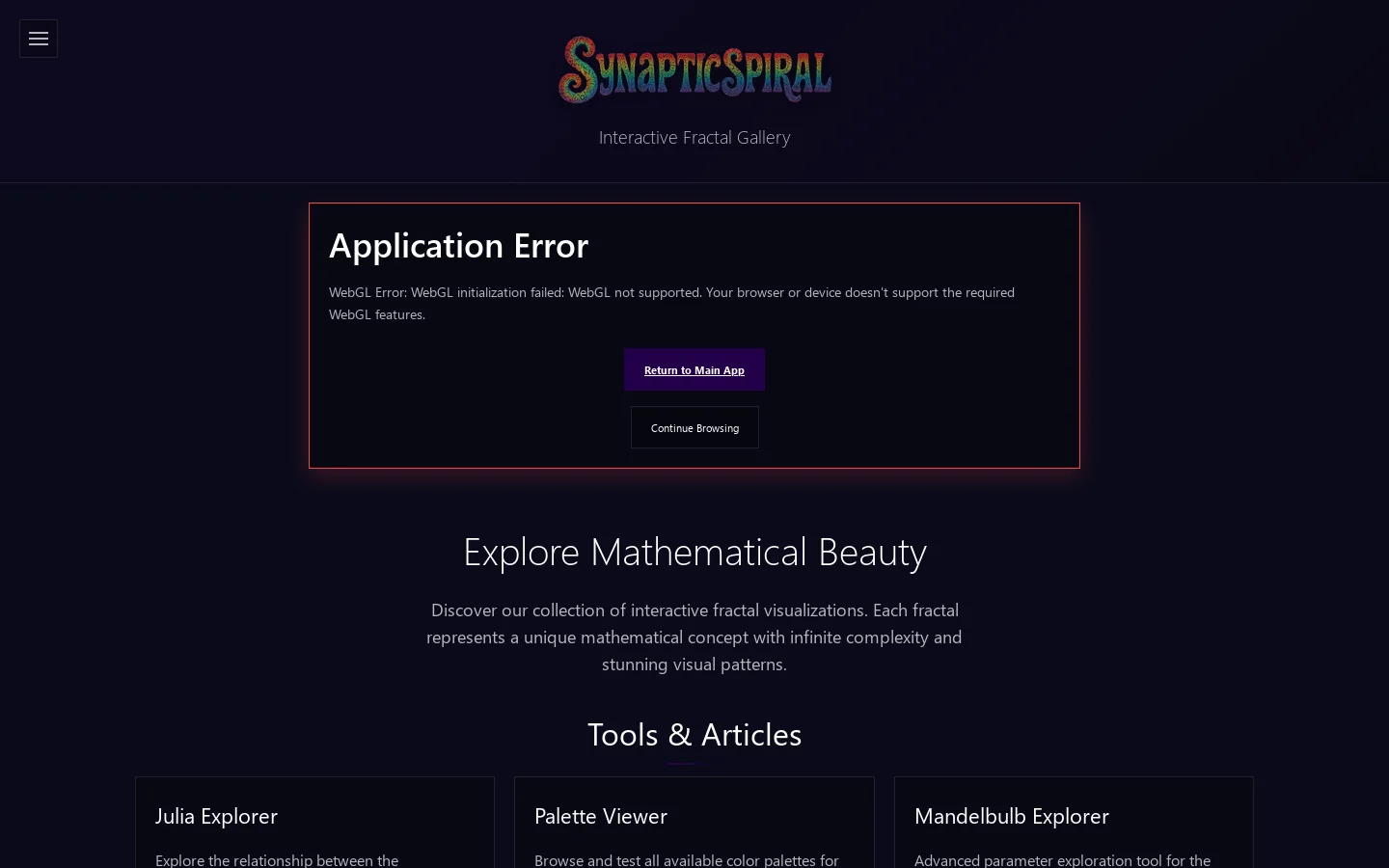

• A "Fractal Visualizer Debug Information" heading appears. The site includes a debug section; if it's showing prominently, the renderer may not have initialized properly. Reload the page first.
• Blank or frozen canvas. Check that hardware acceleration is enabled in your browser settings, then reload. WebGL-heavy pages are sensitive to disabled GPU acceleration.
• Sluggish animation. Deep zoom levels and animated fractal types are more demanding; backing out one zoom step usually restores smoothness.
• No visible change when adjusting. Make sure you're editing one parameter at a time and that the view is near a boundary region, where changes are most visible.

Once rendering is confirmed, the fastest way to understand Synaptic Spiral is to spend a few minutes zooming into Mandelbrot edges, then switch to Phoenix and let the animation run — the contrast shows how much of the experience comes from your input versus the real-time motion.
