OrcaSlicer is a free, open-source slicer for FDM 3D printers, available on Windows, macOS, and Linux under the AGPL-3.0 license. It fits you best if you treat print quality as something to measure and adjust rather than accept as a default: the calibration tools, per-feature overrides, and exposed wall/seam settings are the reason to choose it over a slicer that hides those controls. If you only want to drag in a model, pick a preset, and print, OrcaSlicer will still work, but you won't be using what sets it apart.

What OrcaSlicer actually is

A slicer converts a 3D model into the G-code instructions your printer follows. OrcaSlicer does that for FDM machines, and its stated design goal is control "down to individual walls, seams, and layers." Three things define it:

• It's open source. Licensed AGPL-3.0, so the code is yours to inspect, build, and improve.
• It's cross-platform. Windows, macOS, and Linux builds.
• It ships with tuning tools built in rather than as separate downloads.

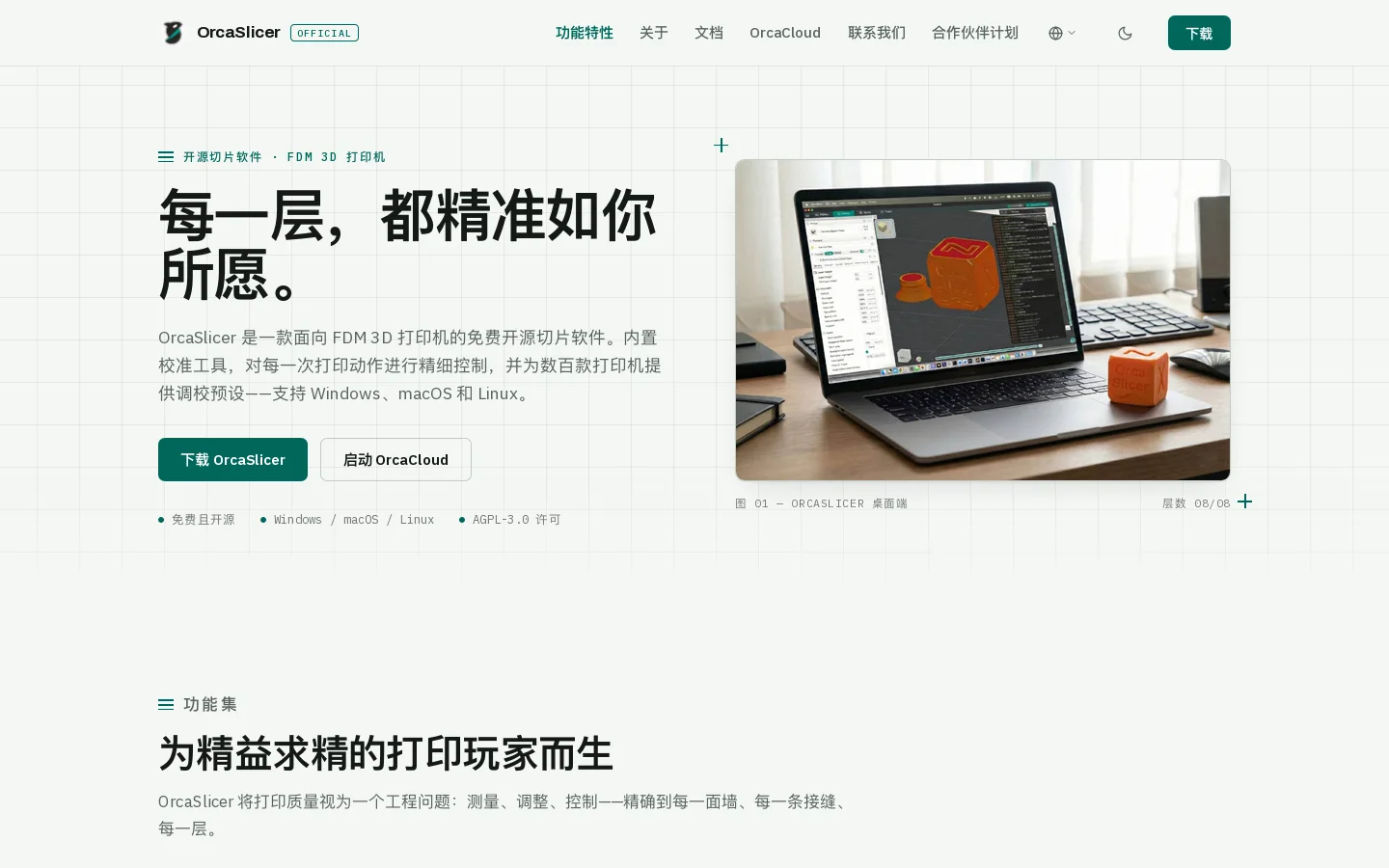

The official site describes it as built "for people who tune their machines," which is a fair summary of its audience.

The three areas where it differs

1. Calibration is part of the slicer

Most slicers expect you to find, download, and print calibration test models from elsewhere, then eyeball the results. OrcaSlicer generates and evaluates those tests inside the application. The built-in suite covers:

• Flow rate
• Pressure advance
• Temperature towers
• Retraction
• Tolerance
• Maximum volumetric speed

The practical effect: tuning a new printer or a new filament becomes a task measured in minutes rather than an evening of hunting for STLs. Two related features support this:

• Adaptive bed mesh — probes only the region your print actually occupies, so the first layer stays accurate without a full-bed level on every job.
• Mouse-ear brims — automatic brims placed at corners to hold down warp-prone prints, designed to be easy to remove.

2. Print quality settings most slicers don't expose

This is the core of the pitch. OrcaSlicer surfaces controls that are typically hidden or fixed:

If your prints are "fine but not right" — visible seams, holes that come out undersized, overhangs that droop — these are the settings that address those specific problems.

3. Workflow and printer coverage

• Network printing to printers running Klipper, PrusaLink, or OctoPrint, with job monitoring — no SD-card shuffling.
• Tuned profiles for hundreds of printers, including Bambu Lab, Prusa, Creality, and Voron, maintained with the community.
• A familiar workspace. If you've used a modern slicer, the drag-drop-arrange-slice flow needs no relearning.

Who should use it

OrcaSlicer is a good fit if you:

• Run an FDM printer and want to calibrate it properly
• Care about seams, wall quality, and dimensional accuracy
• Use Klipper, PrusaLink, or OctoPrint and want to print over the network
• Want to read, modify, or contribute to the software you rely on

It may be more than you need if you:

• Print occasionally and are happy with default profiles
• Don't want to think about flow rate or pressure advance
• Use a resin (SLA/DLP) printer — OrcaSlicer targets FDM

Getting started

1. Download the build for your OS (Windows, macOS, or Linux) from the official site.
2. Select a profile matching your printer — check whether a tuned preset already exists for your model before configuring from scratch.
3. Run the calibration suite for your filament before your first real print; flow rate and pressure advance are the two that most affect results.
4. Slice and either export G-code or send it over the network to a supported printer host.

The official site also lists OrcaCloud as a launch option alongside the desktop download.

On cost and licensing

OrcaSlicer is described as free and open source, licensed AGPL-3.0. The AGPL-3.0 terms matter if you plan to modify and redistribute the software — it's a copyleft license, so derivative works carry the same obligations. For ordinary use, it means the source is available to inspect and build.

3D printing software for FDM printers is mostly about the slicer — the program that turns a 3D model (STL, STEP, 3MF) into G-code the printer can execute. Choose one by checking four things against your actual setup: printer compatibility, calibration tools, support generation, and network printing. OrcaSlicer is a concrete example of a free, open-source slicer that covers all four, with built-in calibration and tuned profiles for hundreds of printers on Windows, macOS, and Linux.

What a slicer actually does

A slicer is not the same as the tools around it. Keeping the roles separate makes selection much easier:

The slicer is where print quality is largely decided. Layer height, wall count, seam placement, support structure, speed, and temperature are all set here — the firmware just carries out the result.

Selection criteria that matter for FDM

Printer compatibility and profiles

The fastest way to judge a slicer is whether it already has a tuned profile for your machine. OrcaSlicer ships presets for Bambu Lab, Prusa, Creality, Voron, and many others, maintained together with the community. If your printer is common, you start from a working baseline instead of a blank config. If it is unusual, you need a slicer that exposes enough settings to build your own profile.

Calibration tools

Calibration is where cheap prints and good prints diverge. OrcaSlicer builds the calibration lab into the slicer rather than making you download test STLs: flow rate, pressure advance, temperature towers, retraction, tolerance, and max volumetric speed tests are generated and evaluated inside the program. It also includes adaptive bed mesh, which probes only the region your print occupies so first layers stay accurate without a full-bed level on every job. If you change filaments often, in-slicer calibration saves real time.

Support generation and per-feature control

Support quality decides whether complex geometry is printable and whether cleanup is bearable. OrcaSlicer uses intelligent overhang detection and precise support placement, aiming for strong where needed and easy to remove. It also exposes controls many slicers hide:

• Wall and seam control — tune outer-wall spacing and lay scarf seams so seam lines nearly disappear.
• Sandwich mode & polyholes — alternate wall and infill order for cleaner overhangs, and print holes that measure what the CAD says.
• Per-feature overrides — set speed, layer height, pressure, and temperature independently for walls, infill, supports, and more.

Network printing and workflow

If you do not want to move SD cards around, check which protocols the slicer can talk to. OrcaSlicer sends jobs to and monitors printers running Klipper, PrusaLink, or OctoPrint. It also keeps a familiar drag-drop-arrange-slice workspace, so if you have used a modern slicer, the layout is already recognizable.

How to evaluate a slicer before committing

1. Confirm your printer is supported. Look for a profile for your exact model, or at least a close variant you can adapt.
2. Slice one known part. Use a model you have printed before and compare the preview — walls, seams, supports — against your current results.
3. Run one calibration test. Flow rate or a temperature tower is enough to see whether the built-in tools fit your workflow.
4. Test the send-to-printer path. If network printing matters, verify your host (Klipper, OctoPrint, PrusaLink) connects before you rely on it.
5. Check the license and update model. OrcaSlicer is AGPL-3.0 licensed and open source, so you can inspect, build, and improve it — useful if you want to verify behavior or contribute fixes.

When OrcaSlicer is the right pick

OrcaSlicer fits you if you run FDM printers, want calibration and fine-grained per-feature control in one place, and prefer open-source software you can inspect. It is available for Windows, macOS, and Linux, and the official site provides the download plus an OrcaCloud entry point. If your priority is a minimal, locked-down workflow with no exposed tuning, a simpler slicer may suit you better — the trade-off is control versus setup effort.

For most FDM users, the practical path is: pick the slicer with a profile for your printer, confirm it can calibrate your filament, and verify it can reach your printer over the network if you want that. OrcaSlicer is a strong default on all three counts.

A 3D slicer is the software that converts a 3D model (STL or 3MF) into G-code — the layer-by-layer toolpath instructions your FDM printer actually executes. You choose one by matching it to your printer and firmware, then comparing the features that affect print outcomes: calibration tools, support generation, per-feature control, and network printing. OrcaSlicer is a concrete example of a free, open-source option that targets users who tune their machines.

What a Slicer Actually Does

The slicer sits between your model and your printer. It takes a solid 3D mesh and decides, for every layer, where the nozzle travels, how fast, how hot, and how much filament to extrude.

The core outputs are:

• Toolpaths — walls, infill, and travel moves for each layer
• Temperature and speed settings — often varied per feature
• Support structures — for overhangs that would otherwise fail
• Adhesion aids — brims, rafts, or skirts
• Machine commands — homing, bed leveling, and start/end sequences

If the slicer gets these wrong, no amount of printer tuning fixes the result. That's why slicer choice matters as much as hardware.

Key Capabilities to Compare

When evaluating slicers, compare them on the same dimensions rather than on marketing claims. The features below are the ones that most affect day-to-day results.

Calibration Tools

Calibration is where slicers differ most in practice. Some require you to download separate test STLs and interpret results by eye. Others build the tests in.

OrcaSlicer's calibration suite generates and evaluates tests inside the slicer, covering flow rate, pressure advance, temperature towers, retraction, tolerance, and max volumetric speed. The site frames this as tuning a new printer or filament "in minutes, not evenings."

What to check: Does the slicer generate the test, or do you need external files? Does it help you read the result, or leave interpretation entirely to you?

Support Generation

Supports are the most common source of failed prints and post-processing pain. Compare how each slicer detects overhangs and places support material.

OrcaSlicer advertises intelligent overhang detection and precise support placement — "strong where needed, easy to remove." That trade-off (strength vs. removability) is the real thing to evaluate, not just whether supports exist.

Per-Feature Control

Most slicers expose global speed and temperature. Fewer let you set them independently for walls, infill, and supports.

OrcaSlicer exposes per-feature overrides for speed, layer height, pressure, and temperature. It also offers wall and seam control (outer-wall spacing, scarf seams), sandwich mode for cleaner overhangs, and polyholes for holes that match CAD dimensions.

What to check: If you print functional parts with tight tolerances, per-feature control and hole accuracy matter more than cosmetic options.

Network Printing

Sending jobs over the network instead of moving SD cards is a workflow feature, not a print-quality one — but it changes how you use the machine daily.

OrcaSlicer supports sending jobs to and monitoring printers running Klipper, PrusaLink, or OctoPrint. If your printer uses a different ecosystem, verify compatibility before committing.

Printer Profiles

Tuned presets reduce setup time. OrcaSlicer ships profiles for Bambu Lab, Prusa, Creality, Voron, and others, maintained with the community.

What to check: Does a maintained profile exist for your exact printer and firmware combination? Community-maintained profiles vary in quality and update frequency.

Free vs. Paid and Open Source

OrcaSlicer is free and open source, licensed under AGPL-3.0. The site describes it as "yours to inspect, build, and improve."

What that licensing means in practice:

• You can inspect the source — useful if you want to verify behavior or contribute fixes
• You can build and modify it — the AGPL requires derivative works distributed to others to remain under the same license
• Community profiles and updates — an open project depends on contributors for printer presets and fixes

Free and open source doesn't automatically mean better or worse than paid alternatives. It means the update cadence and profile quality depend on the community rather than a single vendor's roadmap. Weigh that against your tolerance for maintaining your own setup.

How to Choose: A Practical Test

Don't migrate your whole workflow based on a feature list. Test on one model first.

1. Confirm platform support. OrcaSlicer runs on Windows, macOS, and Linux. Check that your OS is covered before anything else.
2. Check your printer and firmware. Match against the supported list (Klipper, PrusaLink, OctoPrint for network printing; Bambu Lab, Prusa, Creality, Voron for profiles).
3. Slice one known model. Pick a part you've printed successfully before. Compare the G-code preview against your current slicer.
4. Run one calibration test. Use the built-in suite to tune flow or pressure advance for one filament. If the workflow feels slower or less clear than your current tool, that's a signal.
5. Print and inspect. Check seams, overhangs, and hole dimensions against your expectations.
6. Decide before migrating. Only move your full profile library and workflow after the single-model test passes.

Common Pitfalls

• Assuming profiles transfer cleanly. Presets are tuned for specific hardware; a profile for a similar printer may need adjustment.
• Skipping calibration. Built-in tools only help if you use them. A new slicer on an uncalibrated printer produces misleading results.
• Ignoring firmware. Network printing depends on what your printer runs. Confirm Klipper, PrusaLink, or OctoPrint support before expecting wireless workflow.
• Judging on one print. Slicer differences show up across geometries — test overhangs, thin walls, and tight-tolerance holes, not just a benchmark cube.

Bottom Line

Pick a slicer by matching it to your printer, firmware, and the features you actually use — calibration, supports, per-feature control, and network workflow. OrcaSlicer is a free, open-source option (AGPL-3.0, Windows/macOS/Linux) built for users who tune their machines, with an in-slicer calibration suite and per-feature overrides. Test it on one model and one calibration run before committing your workflow.

A 3D printing slicer is the software that converts a 3D model (STL or 3MF) into G-code — the layer-by-layer instructions your FDM printer actually executes. You need one for every print, and the slicer you pick determines how much control you get over walls, seams, supports, and calibration. If you want deep per-feature control and built-in tuning tools, OrcaSlicer is a strong candidate: it's a free, open-source slicer for FDM printers on Windows, macOS, and Linux, AGPL-3.0 licensed, with tuned profiles for hundreds of printers.

What a slicer actually does

The core job is a translation: a solid model goes in, machine commands come out.

1. Import an STL or 3MF file into the slicer.
2. Position and orient the model on the build plate (drag, drop, arrange).
3. Choose a profile — a preset matched to your printer and filament.
4. Slice — the software computes perimeters, infill, supports, and travel moves, then writes G-code.
5. Send or export the G-code to the printer, by network or SD card.

Everything that happens between steps 3 and 5 is where slicers differ, and where print quality is won or lost.

The settings that actually change your print

Most slicers expose the basics. The differences show up in how much of the following you can control independently:

OrcaSlicer's stated approach is to expose settings most slicers don't, including per-feature overrides — speed, layer height, pressure, and temperature set independently for walls, infill, and supports. It also offers sandwich mode (alternating wall and infill order for cleaner overhangs) and polyholes (printing holes closer to their CAD dimensions).

Calibration: the part most people skip

Calibration is where a slicer earns its keep. Instead of downloading test STLs and guessing, look for a slicer that generates and evaluates tests internally.

OrcaSlicer's built-in calibration suite covers flow rate, pressure advance, temperature towers, retraction, tolerance, and max volumetric speed — generated and evaluated inside the slicer. Its adaptive bed mesh probes only the region your print occupies, so first layers stay accurate without a full-bed level on every job. Mouse-ear brims add automatic, easy-to-remove adhesion at corners prone to warping.

If you're tuning a new printer or a new filament, these tools turn an evening of trial prints into a few minutes of guided tests.

Comparing free, open-source slicers

The three names that come up most often are OrcaSlicer, Cura, and PrusaSlicer. They're all free and open source, so the choice comes down to workflow fit.

Pick OrcaSlicer if you run mixed hardware and want calibration and per-feature control in one place. Pick PrusaSlicer if you're on Prusa hardware and want the tightest first-party integration. Pick Cura if you want a large plugin ecosystem and a gentler learning curve.

How to get started

1. Confirm your printer is FDM (OrcaSlicer targets FDM printers specifically).
2. Download the build for your OS — Windows, macOS, or Linux.
3. On first launch, select your printer from the profile list; community-maintained presets cover Bambu Lab, Prusa, Creality, Voron, and many others.
4. Import a model, arrange it, and slice with the default profile.
5. Run the calibration tests for your filament before chasing quality problems in the model.
6. If your printer runs Klipper, PrusaLink, or OctoPrint, set up network printing to skip the SD-card shuffle.

The workspace follows the conventions of modern slicers — drag, drop, arrange, slice — so if you've used one before, the transition is short.

Common sticking points

• Skipping calibration. Default profiles are a starting point, not a finish line. Flow rate and pressure advance tests fix most extrusion artifacts.
• Over-supporting. Intelligent overhang detection matters more than support density; too much support is harder to remove and can mar surfaces.
• Ignoring seam placement. If seams bother you, look for scarf seam support and outer-wall spacing controls rather than sanding later.
• Assuming network printing is universal. It depends on your printer's firmware and host software, not just the slicer.

FAQ

Is OrcaSlicer free? Yes — it's described as free and open source, AGPL-3.0 licensed.

Which operating systems does it support? Windows, macOS, and Linux.

Does it work with resin printers? No — it targets FDM 3D printers.

Can I print over the network? Yes, for printers running Klipper, PrusaLink, or OctoPrint.

Do I need to download test STLs for calibration? No — the calibration suite generates and evaluates tests inside the slicer.

An open-source UI element library is a collection of individual, ready-made interface pieces—buttons, cards, inputs, toggles, loaders—that you copy into your own project and adapt. A UI framework, by contrast, is a structured system of components, conventions, and often a theming layer that governs how your whole interface is built. The practical difference: an element library gives you a snippet; a framework gives you a way of working. If you need a polished button in ten minutes, reach for the element library. If you're building a 40-screen product with a team, you probably want the framework.

What "open-source UI element library" actually means

The term gets used loosely, so it helps to separate the parts:

• Open-source: the code is publicly available, and the license tells you what you may do with it—copy, modify, redistribute, or use commercially.
• UI element: a single, self-contained piece of interface, usually small enough to read in one sitting. A button with hover states, a pricing card, a search field.
• Library: a browsable, searchable collection of those elements, typically contributed by many different people.

On a site like Uiverse, elements are shared by a community and written in plain CSS or Tailwind. You find one you like, copy the markup and styles, paste them into your project, and adjust colors, spacing, and text to fit. There's no package to install and no build step required—which is exactly the appeal, and also the source of most of the confusion.

Element library vs. UI framework: the core differences

The table isn't a verdict. It's a map of trade-offs. Element libraries win on speed and freedom; frameworks win on consistency and maintenance.

Licensing and attribution: what to check before you paste

This is where people get into trouble, and it's worth slowing down for.

1. Find the license. Every element or collection should state one. Common open-source licenses include MIT, Apache-2.0, and BSD. Some projects use copyleft licenses like GPL, which can impose obligations if you redistribute your code.
2. Understand what the license permits. MIT and Apache-2.0 are permissive: you can typically use the code in commercial and closed-source projects. Copyleft licenses may require you to release derivative source under the same terms.
3. Check attribution requirements. Permissive licenses usually require you to keep the copyright notice and license text somewhere in your project. That's a real obligation, not a formality.
4. Look for per-element terms. On community sites, the site's overall terms and the individual contributor's stated wishes may differ. If a contributor asks for credit, honor it.
5. When in doubt, ask or avoid. If a snippet has no license at all, you don't have clear permission to reuse it. Treat "no license" as "not open source," even if the code is publicly visible.

This article is general information, not legal advice. For commercial products with real exposure, have someone qualified review the licenses you're relying on.

How to use a community element in your project: a practical workflow

Here's a repeatable process that avoids most of the usual mess.

1. Start from a real need, not a browsing session

Decide what you need first—"a compact primary button with a loading state"—then search. Browsing aimlessly produces a pile of pretty snippets that don't fit together.

2. Copy the smallest version that works

Take the markup and the styles. Strip anything you don't need: demo wrappers, extra animations, decorative layers. Less code means fewer surprises.

3. Convert it to your conventions

If your project uses design tokens or CSS variables, replace hard-coded values:

/* Before: hard-coded */
.button { background: #4f46e5; border-radius: 8px; }

/* After: token-based */
.button { background: var(--color-primary); border-radius: var(--radius-md); }

This one step is what keeps a copied element from looking like a foreign object in your UI.

4. Check accessibility before you ship

Community elements vary widely here. Verify at minimum:

• Keyboard focus is visible and the element is reachable by Tab.
• Color contrast meets WCAG AA (4.5:1 for normal text).
• Interactive elements use semantic HTML (<button>, not a clickable <div>).
• Form inputs have associated labels.
• Motion respects prefers-reduced-motion.

5. Test in context

Paste it into a real page with real content. Long labels, small screens, and dark mode break more copied elements than anything else.

6. Note where it came from

Keep a short comment or an internal credits file: source, license, date. Future you—and your legal reviewer—will be grateful.

Where element libraries genuinely shine

• Prototypes and demos: you need something clickable today, not a design system.
• Landing pages and marketing sites: a handful of distinctive elements, each custom.
• Filling gaps: your framework lacks one specific component, and you don't want to build it from scratch.
• Learning: reading well-made CSS is one of the fastest ways to improve.
• Small projects: a personal site doesn't need a theming architecture.

Where they fall short

• Consistency at scale: ten elements from ten contributors rarely look like one product.
• Maintenance: you own every copy. When your design changes, you edit each one.
• Accessibility debt: you inherit whatever the contributor did or didn't do.
• No upstream fixes: a bug fixed in the original won't reach your copy.
• Integration friction: different naming conventions, different units, different assumptions about resets.

When to choose which

Choose an element library when the scope is small, the timeline is short, or you need a few distinctive pieces rather than a whole system.

Choose a framework or design system when multiple people build multiple screens over months, when consistency is a product requirement, or when accessibility and theming need to be guaranteed rather than checked.

A hybrid works well for many teams: adopt a framework for the structural components—forms, navigation, layout—and borrow individual elements for the places where you want personality. Just route every borrowed element through the same token and accessibility checks, so it lands as part of your system rather than beside it.

The short version: open-source UI element libraries are a fast, flexible way to get good-looking interface pieces into a project. They are not a substitute for a design system, and the license and accessibility details are the part worth reading carefully.
