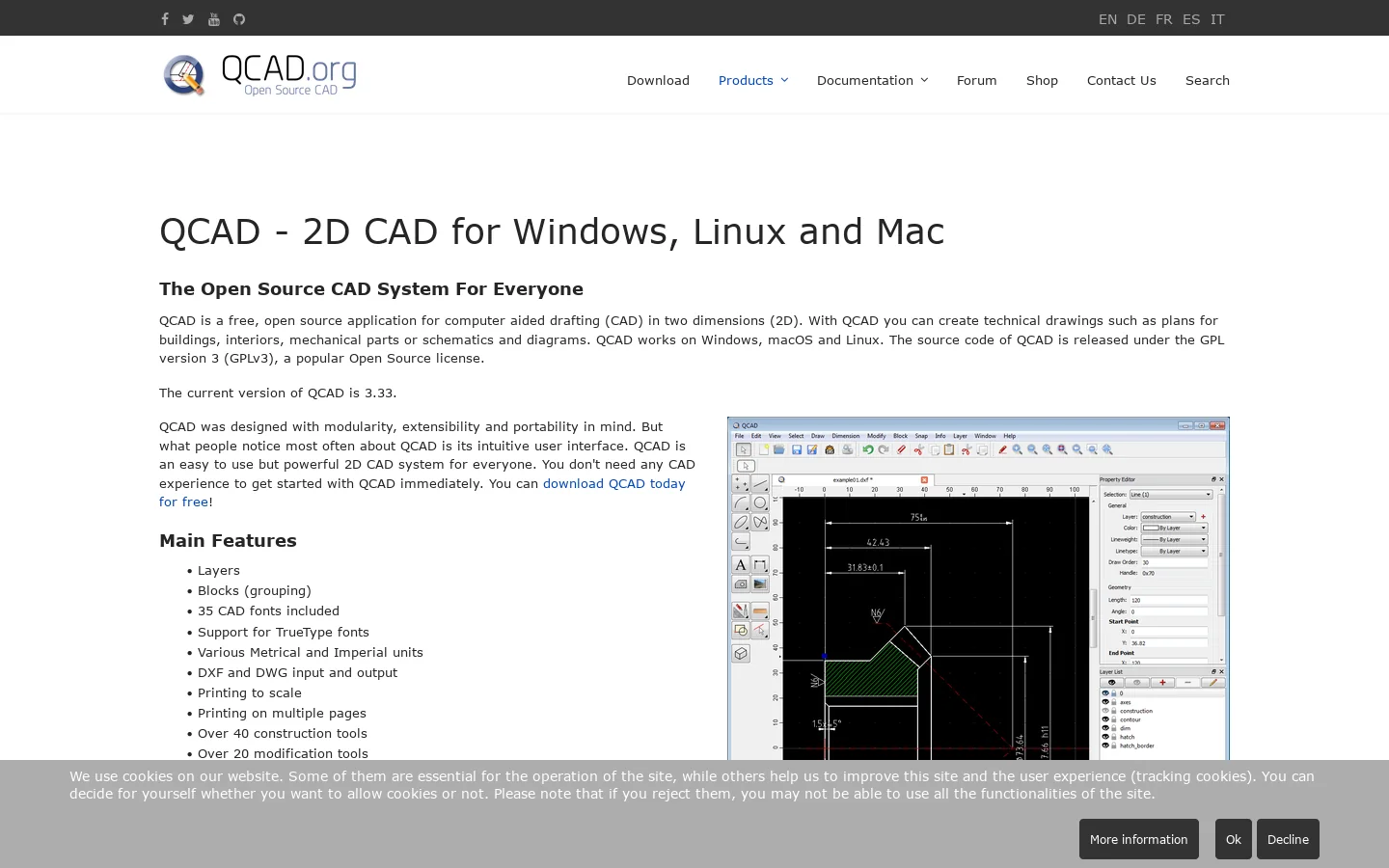

qcad.org No paid content found Multilingual

QCAD is a free, open-source 2D computer-aided drafting (CAD) application for Windows, macOS, and Linux. You can use it to produce technical drawings such as building plans, interior layouts, mechanical parts, schematics, and diagrams. It is a good fit if you need precise 2D drafting rather than 3D modelling, and the project states you don't need any CAD experience to get started. The current version is 3.33, and the source code is released under GPLv3.

What QCAD is designed for

QCAD is a two-dimensional drafting system, not a 3D modelling tool. Its stated purpose is creating technical drawings, with examples including:

• Plans for buildings and interiors
• Mechanical parts
• Schematics and diagrams

The application was built with modularity, extensibility, and portability in mind, and its interface is described as intuitive — the feature most often noticed by users.

Core capabilities

Extending and automating QCAD

Beyond interactive drawing, QCAD offers two routes for automation:

• ECMAScript (JavaScript) scripting interface — described as very complete and extremely powerful, for customising or extending the application.
• Command line tools — including dwg2pdf, dwg2svg, and dwg2bmp, useful for batch conversion of drawings to other formats.

There is also a separate QCAD/CAM variant that adds G-code export and nesting.

Who it suits

QCAD fits readers who want a no-cost, open-source tool for 2D drafting on any of the three major desktop platforms, and who value DXF/DWG compatibility for exchanging drawings with other CAD software. If your work is purely 2D — plans, parts, schematics — the feature set above covers the typical workflow from drawing through scaled printing. If you need 3D modelling, QCAD is not aimed at that.

You can download QCAD from qcad.org.

Crossword Weaver is a Windows-only crossword puzzle maker that supports two distinct puzzle styles: free-form puzzles built from only your own words, and themed symmetrical newspaper-style grids. It offers a demo so you can test it before buying. Choose it if you need both styles in one tool and work on Windows; look at alternatives if you need cross-platform support, a browser-based workflow, or a free tool with no purchase step.

The core difference: two puzzle styles in one tool

Most crossword makers specialize in one output style. Crossword Weaver's distinguishing feature is that it handles both:

If you only ever need one style, a simpler or cheaper tool may cover you. If you switch between casual word-list puzzles and publication-style grids, having both in one program avoids juggling two tools.

Windows compatibility and trying before buying

Crossword Weaver is Windows only. That is a hard constraint, not a preference:

• Windows users: you can run it natively.
• Mac, Linux, or Chromebook users: you would need a Windows environment, or you should choose a cross-platform or web-based alternative instead.
• Before purchasing: the site provides a demo. Use it to confirm the puzzle styles, grid behavior, and output match your needs. The demo is the intended evaluation path, so treat it as your compatibility and feature check rather than assuming the paid version behaves the same in every detail.

The site references purchasing, so plan for a paid product rather than assuming it is free. Pricing details are not specified in the available information, so check the site directly for current terms.

Output: printable and playable puzzles

Crossword Weaver is described as producing printable and playable puzzles. When comparing tools, check these output dimensions on the same basis:

• Print: does the tool export a clean grid plus clues suitable for paper handouts?
• Play: can the puzzle be solved on screen, or is it print-only?
• Format control: can you adjust grid size, clue layout, and numbering?

A tool that prints well but has no on-screen play mode suits classroom handouts. A tool with playable output suits digital assignments or casual solving. Decide which of these you actually need before comparing, because it narrows the field quickly.

Ease of use and automation

Crossword Weaver emphasizes automatic generation: you supply words and clues, and it builds the grid. The practical questions to ask of any maker:

1. How much manual grid adjustment is required after auto-generation?
2. Does it handle word placement conflicts for you, or do you fix them by hand?
3. How long does a typical puzzle take from word list to finished output?

For hobby use, a rougher auto-generated grid is fine. For publishing or repeated classroom use, the amount of manual cleanup matters more than the feature list.

Which tool fits your use case

• Hobby and personal puzzles: a free or low-cost maker is often enough. Crossword Weaver's demo lets you judge whether the two-style support is worth paying for.
• Classroom use: prioritize printable output, fast generation from vocabulary lists, and Windows availability if your school machines run Windows.
• Publishing or newspaper-style grids: the symmetrical themed style is the relevant feature. Compare how each tool handles symmetry and grid polish, since that is where output quality diverges most.
• Cross-platform or browser-based work: Crossword Weaver is not the fit. Choose a web-based maker instead.

How to decide

1. Confirm you are on Windows. If not, stop here and look at cross-platform tools.
2. Decide whether you need both free-form and symmetrical styles, or just one.
3. Download the demo and build one real puzzle you would actually use.
4. Check the output: print it, and try solving it on screen if playable output matters to you.
5. Compare the result against one alternative on the same puzzle, then decide whether the purchase is justified.

The fastest way to choose is to run the same puzzle through Crossword Weaver's demo and one competing tool, then compare grid quality, output options, and time spent.

DXF (Drawing Exchange Format) is a vector file format for 2D and 3D CAD drawings, originally developed by Autodesk so that drawing data could move between different CAD programs. You use it when you need to open, edit, or hand off a technical drawing — plans for buildings, interiors, mechanical parts, schematics, or diagrams — and you want that data to survive the trip between applications. To work with DXF files you need a CAD application that reads the format; QCAD, for example, is a free, open source 2D CAD system for Windows, macOS, and Linux that lists DXF and DWG input and output among its main features.

What DXF actually is

DXF is an exchange format, not a native working format for most tools. Its job is to describe drawing entities — points, lines, arcs, circles, ellipses, splines, polylines, texts, dimensions, hatches, fills, and raster images — in a way another program can reconstruct.

That design has two practical consequences:

• It is broadly readable. Because the format is documented and widely supported, it is the common denominator when two CAD programs do not share a native format.
• It can carry more than geometry. Layers, blocks (groupings), units, fonts, and dimension styles travel with the file, which is why DXF is used for production workflows rather than just viewing.

DXF supports both 2D and 3D data, but it is most associated with 2D drafting. If your work is 2D — floor plans, part outlines, cut profiles — DXF is usually sufficient.

DXF vs DWG: which to use

Both formats come from the same lineage and both are supported for input and output by QCAD. The difference is in role and portability.

A workable rule: use DXF when the file has to leave your tool; use DWG when it stays inside a compatible toolchain. If you are unsure what the recipient can open, DXF is the safer default.

How to open and edit a DXF file

1. Install a CAD application that supports DXF. QCAD runs on Windows, macOS, and Linux. Its stated design goals are modularity, extensibility, and portability, and it is aimed at users with no prior CAD experience.
2. Open the file through the application's normal file-open flow. The drawing should appear with its layers and entities intact.
3. Check units and scale before editing. DXF files can be authored in metric or imperial units. QCAD supports various metrical and imperial units, but a mismatch between the file's assumed units and your intent is one of the most common sources of wrong-sized output.
4. Edit using construction and modification tools. QCAD ships with over 40 construction tools and over 20 modification tools, plus entity selection tools, object snaps, and measuring tools — enough to redraw, trim, and verify geometry.
5. Verify by measuring. Use the measuring tools to confirm a known dimension before you export or send the file onward.

If you only need to view or lightly annotate a DXF, a full CAD seat is not strictly required — but for anything involving precise geometry, dimensions, or layers, use a CAD tool rather than a general vector editor.

Common use cases

• Laser cutting and CNC machining. The cutter or CAM software consumes the DXF outline directly. Clean, closed polylines and correct units matter more here than visual appearance.
• Architectural and interior plans. Layers separate walls, fixtures, and annotations.
• Mechanical parts and schematics. Dimensions and blocks carry reusable components.
• Part libraries. QCAD includes a part library with over 4800 CAD parts, which is useful when a drawing is assembled from standard components rather than drawn from scratch.

Converting DXF to other formats

Conversion needs differ by target:

• To PDF — for printing and sharing. QCAD supports printing to scale and printing on multiple pages, so large drawings can be tiled across sheets.
• To SVG or BMP — for web, documentation, or raster previews.
• To DWG — when the recipient works in a DWG-native toolchain.

QCAD provides command line tools for this, including dwg2pdf, dwg2svg, and dwg2bmp. These let you batch-convert files without opening the graphical interface, which is useful when you have a folder of drawings to process.

For scripted or repeated conversions, QCAD exposes a complete ECMAScript (JavaScript) scripting interface, so conversion and drawing tasks can be automated rather than repeated by hand.

Troubleshooting common DXF problems

Missing or substituted fonts. DXF files reference fonts, and the receiving machine may not have them. QCAD includes 35 CAD fonts and also supports TrueType fonts, which reduces but does not eliminate substitution. If text looks wrong after opening, check which font the file expects and whether it is available.

Unit mismatch. A drawing that imports at the wrong size almost always has a unit problem, not a geometry problem. Confirm the file's units and your export settings before scaling anything.

Geometry that will not cut or machine correctly. Open polylines, overlapping segments, and zero-length entities are frequent culprits. Use selection and measuring tools to find them, then close or clean the geometry.

Features lost in translation. DXF is an exchange format, so some program-specific features may not survive a round trip. If fidelity matters, keep a native-format master and treat the DXF as a derived copy.

Version differences. DXF has evolved over time. If a recipient cannot open your file, exporting to an older DXF version is often the fix.

Getting started

QCAD is free and open source, released under GPLv3, with the current version listed as 3.33. It is available for Windows, macOS, and Linux, and the project states that no CAD experience is needed to begin. Download it, open a DXF file, and confirm the units and a known dimension before you edit — that single check prevents most of the problems people hit with DXF files.

DWG is the native drawing file format for AutoCAD and several other CAD programs. It stores 2D (and in some tools 3D) geometry, layers, blocks, text, dimensions, hatches, and other drawing data in a single file. You can open, edit, and convert DWG files with a range of CAD applications, including free and open-source options such as QCAD, which lists DXF and DWG input and output among its main features. The catch is compatibility: DWG is a proprietary format that has changed across versions, so the tool you choose needs to support the specific DWG version your file was saved in.

DWG vs DXF: what's the difference?

Both are CAD drawing formats, but they play different roles:

In practice, DXF is often the safer choice when moving a drawing between unrelated programs, while DWG is what you'll receive from colleagues, clients, or suppliers working in AutoCAD. QCAD supports both, so you can open either and save to either.

How to open a DWG file

1. Install a CAD application that supports DWG. QCAD is a free, open-source 2D CAD system for Windows, macOS, and Linux, and it lists DWG input among its features.
2. Launch the program and use its open command to select the .dwg file.
3. If the file was created in a newer DWG version than your software supports, the open may fail or elements may be missing — see the troubleshooting section below.
4. Once open, the drawing appears in the model space with its layers, blocks, and entities intact, assuming the version is supported.

QCAD's main features include layers, blocks (grouping), 35 included CAD fonts, TrueType font support, and both metric and imperial units, so a DWG drawing that uses these standard elements should display and remain editable.

How to edit or create DWG drawings

QCAD is a 2D CAD system, so editing is focused on two-dimensional drafting: plans for buildings, interiors, mechanical parts, schematics, and diagrams. Its feature list includes over 40 construction tools and over 20 modification tools, covering points, lines, arcs, circles, ellipses, splines, polylines, texts, dimensions, hatches, fills, and raster images.

A typical edit workflow:

• Open the DWG file.
• Use entity selection tools and object snaps to target the geometry you want to change.
• Apply modification tools (move, copy, rotate, trim, and similar operations) to adjust the drawing.
• Add or edit dimensions, text, and hatches as needed.
• Save the result back to DWG, or save as DXF if the next program in the chain prefers it.

QCAD also includes measuring tools and a part library with over 4,800 CAD parts, which is useful when you need to insert standard components rather than draw them from scratch. For repetitive or scripted work, it exposes an ECMAScript (JavaScript) scripting interface.

How to convert DWG to other formats

QCAD ships command line tools for conversion, listed as dwg2pdf, dwg2svg, dwg2bmp, and others. These let you turn a DWG into a PDF, an SVG vector graphic, or a raster image without opening the graphical interface — convenient for batch jobs or automated pipelines.

Common conversion targets and why you'd pick them:

• DWG → DXF: when the receiving program handles DXF more reliably than DWG.
• DWG → PDF: for printing, archiving, or sending a non-editable copy. QCAD supports printing to scale and printing on multiple pages.
• DWG → SVG: when you need scalable vector output for web or documentation use.
• DWG → BMP or other raster: when you need a flat image for a report or presentation.

If you're converting inside the application rather than via the command line, the same principle applies: open the DWG, then use the save-as or export option for your target format.

Troubleshooting DWG compatibility and version issues

Most DWG problems come down to version mismatch or unsupported content:

• The file won't open at all. The DWG was likely saved in a version newer than your software supports. Try opening it in a newer CAD tool and saving it down to an older DWG or to DXF, then reopen.
• Some elements are missing or look wrong. Certain entities, fonts, or proxy objects may not translate between programs. Check whether the drawing relies on custom fonts or third-party objects; QCAD's included CAD fonts and TrueType support cover standard text, but not every proprietary object.
• Dimensions or hatches shift. These are often the first things to break across formats. Compare the converted file against the original before relying on it.
• You need a guaranteed round trip. If both ends of the workflow can use DXF, converting to DXF early often avoids DWG version friction entirely.

Choosing a tool for DWG work

QCAD is a reasonable fit if your work is 2D drafting and you want a free, open-source option that runs on Windows, macOS, and Linux and handles both DXF and DWG. It's designed to be approachable — the project states you don't need prior CAD experience to get started — while still offering a deep toolset for technical drawing.

If your work is 3D, or depends heavily on AutoCAD-specific objects, you'll likely need software built around those requirements. For straightforward 2D drawings, opening, editing, and converting DWG files is well within reach of a free tool.

CAD stands for computer-aided drafting or computer-aided design: you draw technical plans on a computer instead of on paper, using precise coordinates, dimensions, and reusable parts. It is the right approach when a drawing has to be accurate, measurable, or shared with someone else — building plans, interior layouts, mechanical parts, schematics, and diagrams. If your task is a rough sketch or an illustration, general drawing software is usually simpler; if measurements and scale matter, CAD is the tool for the job.

2D vs 3D CAD

The two categories solve different problems.

• 2D CAD produces flat drawings: floor plans, elevations, section views, wiring and hydraulic schematics, part outlines. You work in a plane with lines, arcs, circles, and text, and you control scale for printing.
• 3D CAD builds a model in space, from which you can generate views, check fits, or drive manufacturing. It is more powerful and has a steeper learning curve.

Many drafting tasks never need 3D. Plans, layouts, and diagrams are naturally 2D, which is why 2D tools remain the fastest route for them.

What you can produce

Typical outputs of a 2D CAD workflow include:

• Architectural plans and building drawings
• Interior layouts and furniture arrangements
• Mechanical parts and assemblies drawn as views
• Schematics and diagrams (electrical, hydraulic, process)
• Dimensioned drawings for fabrication or permits
• Scaled printouts, including drawings split across multiple pages

Core concepts worth learning first

These ideas appear in every 2D CAD system, so learning them once transfers between tools.

File formats: DXF and DWG

DXF and DWG are the standard exchange formats for CAD drawings. DXF is widely readable across applications; DWG is the native format of AutoCAD and common in professional workflows. If you need to send a drawing to a contractor, client, or machine shop, being able to read and write these formats matters more than which program you drew in. Check format support before committing to a tool.

Where free and open-source 2D CAD fits

QCAD is a free, open-source 2D CAD system for Windows, macOS, and Linux, released under GPLv3, with the current version listed as 3.33. Its stated design goals are modularity, extensibility, and portability, and it advertises an intuitive interface that does not require prior CAD experience. Its feature set covers the concepts above: layers, blocks, metric and imperial units, DXF and DWG input and output, printing to scale and across multiple pages, over 40 construction tools, over 20 modification tools, object snaps, measuring tools, and a part library of more than 4800 CAD parts. It also includes a scripting interface and command-line conversion tools.

That makes it a reasonable starting point if you want to learn 2D drafting without a licence commitment, or if you need a cross-platform tool for plans and diagrams. The trade-off to weigh: a free 2D tool covers flat drafting well, but it is not a substitute for 3D modelling or for the collaboration features of a commercial suite.

A simple starting path

1. Pick a 2D tool that reads and writes the formats you need to exchange (DXF and DWG are the safe defaults).
2. Set your units — metric or imperial — before drawing anything. Changing units later distorts dimensions.
3. Set up layers for the categories in your drawing, so you can control visibility and printing.
4. Draw with construction tools, using object snaps so endpoints and intersections are exact.
5. Annotate with dimensions rather than typing measurements as text, so the drawing stays consistent if geometry moves.
6. Reuse blocks for repeated symbols instead of redrawing them.
7. Print to scale and verify the result — including multi-page output if the drawing is larger than your paper.

If you get stuck, the usual culprits are wrong units, snaps turned off (so lines do not actually meet), and drawing on the wrong layer.
